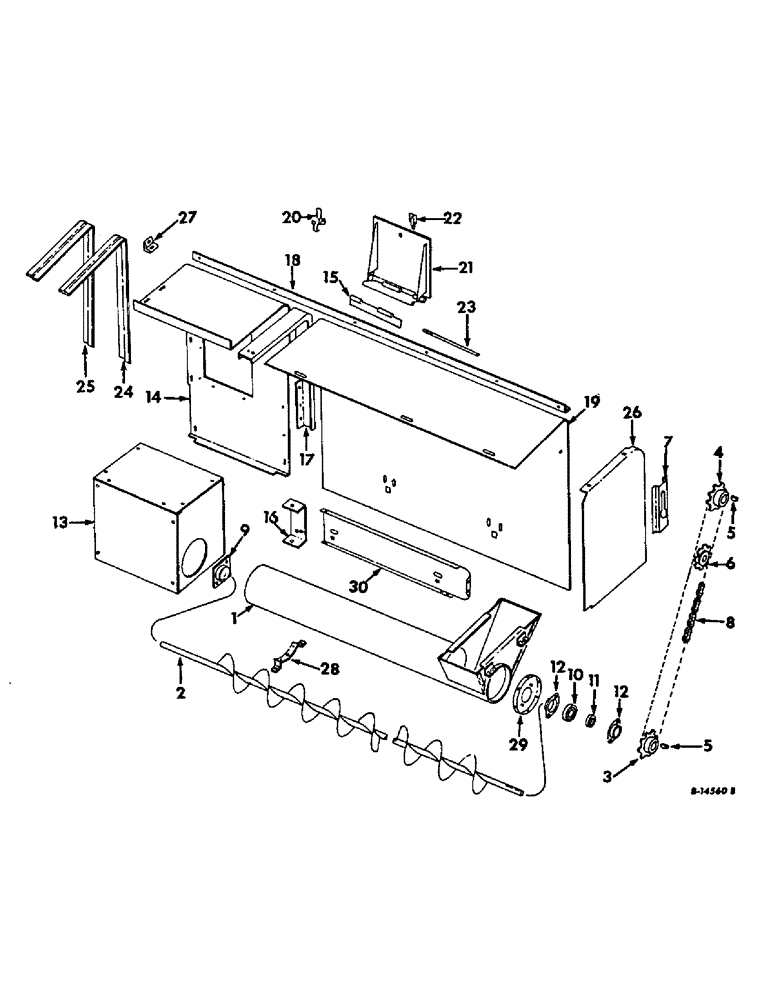

Запчасти Case IH 815 (S-15) - ELEVATORS, TAILINGS DELIVERY AUGER AND DRIVE Elevators

1

164524C91

SPOUT, DISCHARGE

SPOUT ASSY, tailings delivery

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt truss-hd

4шт.

2

164506C92

AUGER

ASSY, tailings delivery

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

668752R1

WASHER

29/32 x 1-1/4 x 16 ga C-Z

5шт.

3

160445C1

SPROCKET ASSY.

SPROCKET, tailings delivery auger drive 8T, serial no. 1290 and below

1шт.

3

168689C1

SPROCKET ASSY.

SPROCKET, tailings delivery auger drive 9T, serial no. 1291 and above

1шт.

4

160445C1

SPROCKET ASSY.

SPROCKET, tailings delivery auger driven 8T

1шт.

5

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

1/4 x 7/8 woodruff, hard

2шт.

6

565442R91

SPROCKET

ASSY, tailings delivery auger drive chain tightener 17T

1шт.

20180R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 2

BOLT, 1/2 x 2 C-Z sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

1шт.

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

17/32 x 1-1/4 x 11 ga C-Z sq-hole

2шт.

7

160449C1

SUPPORT

tailings delivery auger drive chain tightener sprocket

1шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

142619H

WASHER

13/32 x 3/4 x 11 ga C-Z

3шт.

8

CHAIN ASSY, tailings delivery auger drive, use 21 links from a 10 ft roll marked 569089R91, one connecting link 587372R91 and one offset link 456929R91

1шт.

9

631527R91

BALL BEARING

ASSY, tailings delivery auger LH

1шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

564991R91

BEARING

ASSY, tailings delivery auger RH

1шт.

11

658006R11

COLLAR

W/SET SCREW, lkg

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd cup PT set

1шт.

12

612031R1

FLANGED BEARING

tailings delivery auger RT brg

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

164452C91

HOUSING ASSY, tailings check

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

18шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt truss-hd

18шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt truss-hd

1шт.

14

164501C1

COVER, tailings distributor auger LH

1шт.

15

164502C11

HINGE ASSY, tailings check door

1шт.

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 hex-hd

2шт.

16

167980C11

SUPPORT ASSY, tailings auger cover sheet

1шт.

17

167981C1

CHANNEL, tailings auger cover sheet

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt truss-hd

3шт.

18

167982C11

ANGLE ASSY, tailings auger cover

1шт.

19

167996C11

COVER ASSY, tailings distributor auger RH

1шт.

20

168481C1

LATCH ASSY.

LATCH, tailings auger cover

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

4шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

10-32 x 1/2 C-Z slt pan-hd mach

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

607893R1

WASHER

13/64 x 1/2 x 16 ga

4шт.

21

164475C91

DOOR ASSY, tailings check

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

22

167800C1

CLIP

CLIP, tailings check door retainer

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

10-32 x 1/2 C-Z slt pan-hd mach

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

23

160748C1

PIN

ROD, tailings check door hinge

1шт.

24

161748C11

SUPPORT ASSY, tailings distributing auger cover extension

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt truss-hd

5шт.

25

161749C1

SUPPORT, tailings distributing auger cover LH extension, not operators cab attachment

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

120376

NUT,5/16"-18, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

26

161750C1

SUPPORT, tailings distributor auger cover RH extension

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1/4 C-Z flange lock

9шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt truss-hd

9шт.

27

631818R1

CLIP, tailings distributing auger LH cover

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

1шт.

28

165764C1

SADDLE, tailings delivery auger tube

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 C-Z slt truss-hd

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt truss-hd

2шт.

29

160675C1

WASHER

SUPPORT, tailings delivery auger right bearing

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

6шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt truss-hd

6шт.

30

168485C1

SECTION RH SIDE TANK TRIM

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt truss-hd

4шт.
