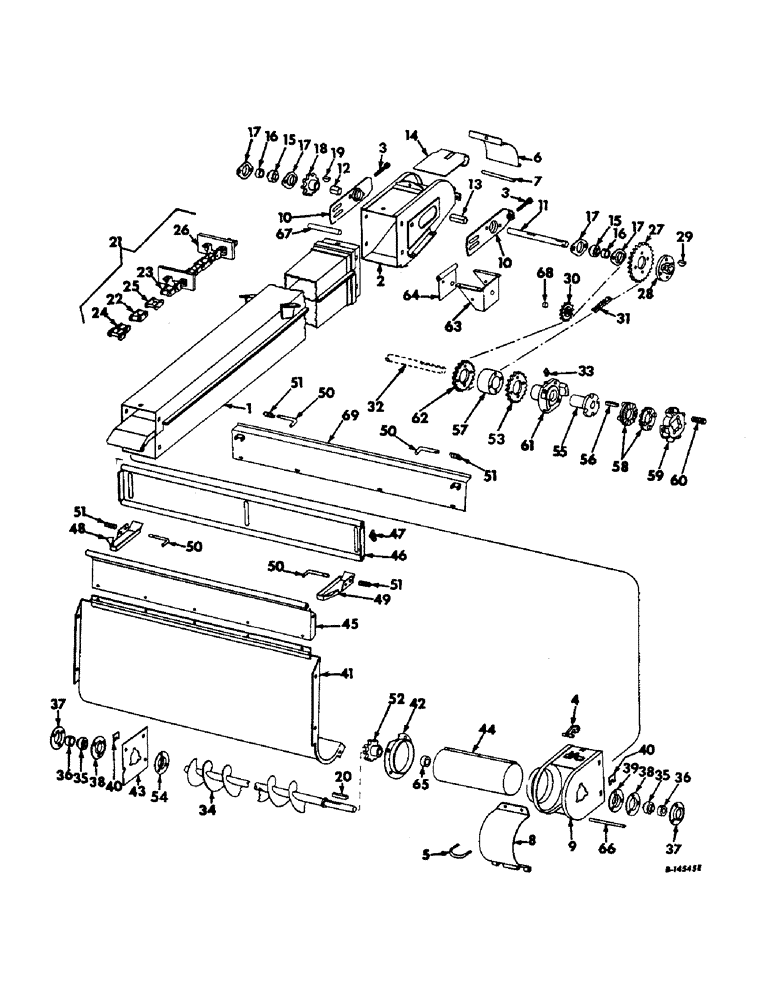

Запчасти Case IH 815 (S-12) - ELEVATORS, TAILINGS ELEVATOR, TROUGH AND DRIVE Elevators

1

169397C1

HOUSING

ASSY, tailings elevator

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

607891R1

WASHER

13/32 x 1 x 16 ga

8шт.

2

160420C92

HEAD

ASSY, tailings elevator

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 C-Z sq-nk crg

4шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

120376

NUT,5/16"-18, G5

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

3

611421R1

BOLT,Hex, 7/16" - 14 x 3 1/2", Full Thd

7/16 x 3-1/2 C-Z hex-hd mach

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

4шт.

4

155909C1

LATCH

tailings elevator door

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

Q711

HEADED PIN,1/4" x 1 1/4"

PIN, 1/4 x 1-1/4 std hd

1шт.

5

664360R1

BOLT,U, 1/4" - 20 x 69.65"

tailings elevator door U

1шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4 nylon insert lock

2шт.

6

157140C1

DOOR

tailings elevator head top

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 C-Z sq-nk crg

1шт.

935736R1

NUT, WING

NUT, 5/16 wing

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

1шт.

7

568671R1

PIN

tailings elevator head door hinge

1шт.

8

156909C1

DOOR

tailings elevator boot, not rice special, serial no. 3783 and below

1шт.

8

156910C1

DOOR

tailings elevator boot, for rice special, serial no. 3783 and below, all combines serial no. 3784 and above

1шт.

8

156911C1

DOOR

tailings elevator boot, perforated, serial no. 3783 and below

1шт.

8

174193C1

DOOR

tailings elevator boot, perforated, serial no. 3784 and above

1шт.

9

156131C92

BOOT

ASSY, tailings elevator

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .68 x .06

6шт.

10

170584C11

BRACKET

SUPPORT ASSY, tailings elev head shaft brg

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

15350R1

BOLT, 5/16 x 7 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

134238R1

WASHER

11/32 x 1 x 16 ga

1шт.

11

160427C1

SHAFT

tailings elevator head

1шт.

668752R1

WASHER

39/32 x 1-14 x 16 ga

1шт.

21220R1

WASHER

39/32 x 1-14 x 11 ga

1шт.

12

157243C1

SPACER

tailings elevator head shaft RH

1шт.

13

160429C1

SPACER

tailings elevator head shaft LH

1шт.

14

160430C1

SHIELD

tailings elevator head shaft

1шт.

15

160314C91

BALL BEARING,22.23mm ID x 52.05mm OD x 16.56mm W

BEARING ASSY, tailings elevator head shaft

2шт.

16

565618R11

RETAINER

COLLAR W/SET SCREW LKG

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd cup PT set

2шт.

17

155265C1

FLANGE

tailings elevator head shaft brg

4шт.

18

157242C1

SPROCKET ASSY.

SPROCKET, tailings elevator conveyor chain 6T, serial no. 1290 and below

1шт.

18

168696C1

SPROCKET ASSY.

SPROCKET, tailings elevator conveyor chain 7T, serial no. 1291 and above

1шт.

19

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

KEY, 1/4 x 7/8 woodruff, hard

1шт.

20

155308C1

KEY

1/4 x 1-5/16 sq-parallel, hard

1шт.

21

160432C91

CONVEYOR

W/FLIGHTS TAILINGS ELEVATOR, rubber flight

1шт.

21

160434C91

CONVEYOR W/FLIGHT TAILINGS ELEVATOR, steel flight

1шт.

22

588566R91

LINK

tailings elevator conveyor chain plain roller

1шт.

23

150722C91

LINK

tailings elevator conveyor chain attaching

1шт.

24

588562R91

CHAIN LINK

LINK, tailings elevator conveyor chain offset

1шт.

25

588564R91

LINK, tailings elevator conveyor chain connecting

1шт.

26

152237C91

PADDLE

FLIGHT ASSY, tailings elevator, rubber flight

1шт.

26

153299C91

CONVEYOR

FLIGHT ASSY, tailings elevator, steel flight

1шт.

558430R1

RIVET

5/16 x 19/32 tubular

1шт.

REF#26. IF NEEDS THE PIN THAT CONNECTS THE RUBBER FLIGHT TO THE LINK, ORDER P/N 588563R1.

1шт.

27

162180C1

SPROCKET ASSY.

SPROCKET, tailings elevator driven 33T

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

28

939278R1

HUB

tailings elevator driven sprocket

1шт.

NLS

NO LONGER SERVICED

5/16 C-Z hex-jam

2шт.

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

SCREW, 5/16 x 3/4 C-Z sq-hd cup PT set

2шт.

29

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

KEY, 1/4 x 7/8 woodruff, hard

1шт.

30

631905R91

SPROCKET

tailings elevator drive idler 17T

1шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8 x 2-1/2 C-Z sq-nk crg

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

551177R1

WASHER

21/32 x 1-1/4 x 16 ga

3шт.

22858R1

SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole

21/32 x 1-1/4 x 12 ga sq-hole

1шт.

31

CHAIN ASSY, tailings elevator drive, use 135 links from a 10 ft roll marked 1791D, one connecting link 1310D and three offset links 1315D

1шт.

32

SHAFT ASSY, elevator jackshaft, refer to grain elevator drive unit for listing

1шт.

33

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , NPT 1/8"-27 x .66 lg

1шт.

34

160281C92

AUGER ASSY, tailings, 7/8 OD shaft, serial no. 3451 and below

1шт.

34

169430C1

AUGER

ASSY, tailings, 1 OD shaft serial no. 3452 and above

1шт.

35

164293C91

BEARING ASSY,0.877" ID x 2.047" OD x 0.903"

tailings auger ball, 7/8 OD shaft serial no. 3451 and below

2шт.

35

165333C91

BALL BEARING

BEARING ASSY, tailings auger ball, 1 OD shaft serial no. 3452 and above

2шт.

36

565618R11

RETAINER

COLLAR W/SET SCREW, lkg, 7/8 OD shaft serial no. 3451 and below

2шт.

36

564853R11

COLLAR

W/SET SCREW, lkg, 1 OD shaft serial no. 3452 and above, not used LH w/monitor control

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/4 hex-soc-hd cap PT set

2шт.

37

937518R91

FLANGE

W/STR LUB FITTING, tailings auger brg

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

38

937517R1

FLANGE

tailings auger brg grooved

2шт.

39

589389R1

CYLINDER END CAP

SHIELD, tailings auger RH brg dust

1шт.

40

628535R1

SHIM

tailings auger RH brg dust shield, serial no. 1972 and below

6шт.

41

164261C91

TROUGH ASSY, tailings

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

13шт.

120376

NUT,5/16"-18, G5

13шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

7шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt truss-hd

7шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

13шт.

42

160324C11

FLANGE

tailings auger brg plate RH

1шт.

43

160323C1

BAR

STRIP, tailings auger left side

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

44

168472C1

ASSEMBLY

SECTION, tailings elevator to trough, not perforated screen

1шт.

44

168537C1

EXTENSION

SECTION, tailings elevator to trough, for perforated screen

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

45

160222C91

SUPPORT ASSY, tailing trough tailgate, serial no. 4688 and below

1шт.

46

160220C1

TAILGATE, tailings trough upper, serial no. 4688 and below

1шт.

47

159700C1

NUT

5/16 C-Z wing, serial no. 4688 and below

3шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

3шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

3шт.

48

164258C91

SUPPORT ASSY, tailings tailgate left filler, serial no. 4688 and below

1шт.

49

164259C91

SUPPORT ASSY, tailings tailgate right filler, serial no. 4688 and below

1шт.

50

611044R1

AXLE PIN,6.35mm OD

PIN, tailings trough tailgate lock

2шт.

121223

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

2шт.

21784R1

WASHER

17/64 x 1/2 x 16 ga C-Z

2шт.

51

606245R1

SPRING

tailings trough tailgate lock

2шт.

52

157242C1

SPROCKET ASSY.

SPROCKET, tailings elevator lower 6T, 7/8 OD shaft serial no. 3451 and below

1шт.

52

165292C1

SPROCKET ASSY.

SPROCKET, tailings elevator lower 6T, 1 OD shaft serial no. 3452 and above

1шт.

53

164196C1

SPROCKET ASSY.

SPROCKET, elevator drip slip clutch 26T

1шт.

18785R1

BOLT,Hex, 3/8"-16 x 3", G2

3/8 x 3 C-Z hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

54

589389R1

CYLINDER END CAP

SHIELD, tailings auger LH brg dust, 1-5/16 ID serial no. 3567 & above

1шт.

54

589281R1

BRACKET

SHIELD, tailings auger brg dust LH, 15/16 ID serial no. 3566 & below

1шт.

55

162177C1

HOLDER

elevator slip clutch spring

1шт.

56

586879R1

KEY

5/16 x 2 square

1шт.

57

162178C1

SPACER, elevator drive slip clutch

1шт.

58

B12170

RATCHET,Clutch Slip, 94.49mm

elevator drive slip clutch

2шт.

59

632152R2

RETAINER

elevator drive slip clutch spring

1шт.

12685R1

BOLT,Sq Nk, 3/8" x 3 1/4"

3/8 x 3-1/4 sq-nk crg dld

4шт.

125127

NUT

3/8 C-Z slt hex

4шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.

60

M973

SPRING

elevator drive slip clutch

4шт.

61

162176C1

HUB

elevator drive slip clutch

1шт.

62

162179C1

SPROCKET, tailings elevator drive 35T, serial no. 1290 and below

1шт.

62

168686C1

SPROCKET ASSY.

SPROCKET, tailings elevator drive 31T, serial no. 1291 and above

1шт.

63

167323C1

SUPPORT

elevator slip clutch alarm switch, not used w/monitor control

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

4шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21963R1

HEADED PIN,1/4" x 2 1/2"

PIN, 1/4 x 2-1/2 std hd dld

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt truss-hd

4шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

3шт.

64

167324C1

HINGE

STRIP, elevator slip clutch alarm switch, not used w/monitor control

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

23099R1

HEADED PIN,5/16" x 3"

PIN, 5/16 x 3 std hd dld

1шт.

65

157243C1

SPACER

tailings auger shaft, 7/8 OD shaft, serial no. 3451 and below

1шт.

65

585464R1

SPACER

tailings auger shaft, 1 OD shaft serial no. 3452 and above

1шт.

66

568671R1

PIN

tailings elevator boot door hinge, not rice special, serial no. 3783 and below

1шт.

66

U17024

PIN

tailings elevator boot door hinge, for rice special, serial no. 3783 and below, all combines serial no. 3784 and above

1шт.

67

568673R1

PIPE

SPACER, tailings elevator head

1шт.

68

M80215

SPACER

tailings elevator drive idler

1шт.

69

175177C1

TAILGATE ASSY, tailings trough, serial no. 4689 and above

1шт.

168020C91

PERFORATED SCREENS AND DOORS, parts accessories, serial no. 3783 and below, includes ref nos. 8 and 44, also parts in grain elevator

1шт.

174420C91

ATTACHMENT

PERFORATED SCREENS AND DOORS, parts accessories, serial no. 3784 and above, includes ref nos. 8 and 44, also parts in grain elevator

1шт.
