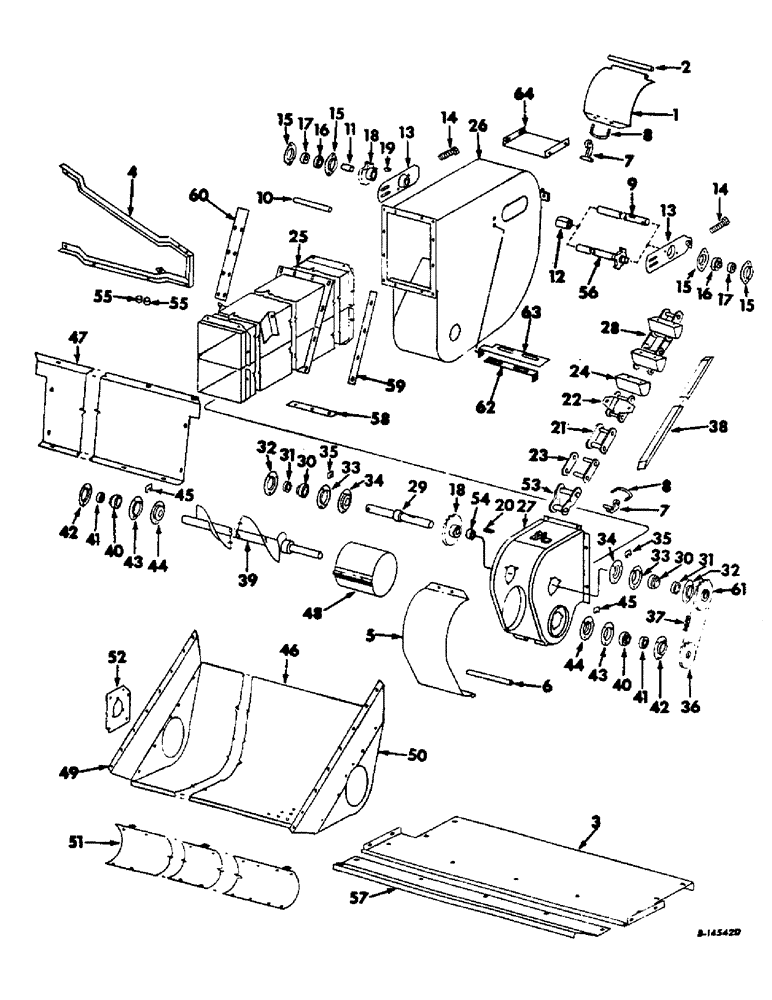

Запчасти Case IH 815 (S-05) - ELEVATORS, GRAIN ELEVATOR, FOR BEAN SPECIAL Elevators

1

162099C1

DOOR, grain elevator head

1шт.

2

160743C1

PIN

ROD, grain elevator head door hinge

1шт.

3

157219C1

SECTION, grain auger trough bottom rear extension

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

4

168238C1

SUPPORT ASSY, grain elevator

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

162032C1

DOOR, grain elevator boot

1шт.

5

162031C1

DOOR, grain elevator boot, perforated

1шт.

6

160743C1

PIN

grain elevator boot door hinge

1шт.

7

155909C1

LATCH

grain elevator door

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

Q711

HEADED PIN,1/4" x 1 1/4"

PIN, 1/4 x 1-1/4 std hd

2шт.

8

664360R1

BOLT,U, 1/4" - 20 x 69.65"

grain elevator door U

2шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4 nylon insert lock

1шт.

9

160694C1

SHAFT, grain elevator head, serial no. 1972 and below

1шт.

21789R1

WASHER

1-1/32 x 1-1/4 x 16 ga

6шт.

10

160431C1

PIPE

SPACER, grain elevator head

1шт.

11

160695C1

SPACER

grain elevator head shaft sprocket left

1шт.

12

157207C1

SPACER

grain elevator head shaft sprocket right

1шт.

13

170584C11

BRACKET

ASSY, grain elev head shaft brg

2шт.

19389R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 9", Gr 2

BOLT, 5/16 x 9 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

Q399

WASHER

11/32 x 1 x 16 ga

2шт.

14

611421R1

BOLT,Hex, 7/16" - 14 x 3 1/2", Full Thd

7/16 x 3-1/2 C-Z hex-hd mach

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

2шт.

15

155265C1

FLANGE

grain elevator head shaft brg

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

16

160796C91

BALL BEARING,25.4mm ID x 51.99mm OD x 16.56mm W

BEARING, grain elevator head shaft

2шт.

17

564853R11

COLLAR

ASSY, bearing locking

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd set

2шт.

18

163486C91

SPROCKET ASSY.

SPROCKET ASSY, grain elevator conveyor chain upper and lower 8T

2шт.

19

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

20

155308C1

KEY

1/4 x 1-5/16 sq parallel

1шт.

21

588566R91

LINK

grain elevator conveyor chain roller

1шт.

22

588567R11

DRAG LINK

LINK, grain elevator conveyor attaching

1шт.

23

588564R11

LINK

grain elevator conveyor connecting

1шт.

24

162416C2

BUCKET

grain elev conveyor chain

89шт.

104248

RIVET, 1/4 x 3/8 fl-hd solid

178шт.

25

162063C92

HOUSING ASSY, grain elevator

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

14шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

14шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

14шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

2шт.

26

162092C91

HEAD ASSY, grain elevator

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

8шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

27

162023C91

BOOT ASSY, grain elevator

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

28

162414C92

CHAIN ASSY, grain elevator conveyor

1шт.

29

162106C11

SHAFT ASSY, grain elevator boot

1шт.

30

165333C91

BALL BEARING

BEARING, grain elevator boot shaft

2шт.

31

564853R11

COLLAR

ASSY, bearing locking

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd set

2шт.

32

937518R91

FLANGE

W/STR LUB FITTING, grain elevator boot shaft brg

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

33

937517R1

FLANGE

boot shaft brg grooved

2шт.

34

589389R1

CYLINDER END CAP

SHIELD, grain elevator boot shaft brg

2шт.

35

628535R1

SHIM

grain elevator boot shaft brg, serial no. 1972 and below

12шт.

36

162038C91

SPROCKET ASSY, elev boot shaft drvn 17T

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

379990R1

HEADED PIN

PIN, 3/8 x 2 C-Z std hd dld

1шт.

37

CHAIN ASSY, grain elevator boot shaft drive, use 37 links from 10 ft roll marked 1791D, one connecting link 1310D and one offset link 1315D

1шт.

38

162107C1

STRIP, grain elevator wood

1шт.

101994

SCREW, no. 10 x 1/2 wood

11шт.

39

162033C91

AUGER ASSY, grain

1шт.

40

165333C91

BALL BEARING

BEARING, grain auger ball

2шт.

41

564853R11

COLLAR

ASSY LOCKING W/SET SCREW, not used LH w/monitor control

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd cup PT set

2шт.

42

937518R91

FLANGE

W/STR LUB FITTING, grain auger brg

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

43

937517R1

FLANGE

grain auger brg grooved

2шт.

44

589389R1

CYLINDER END CAP

SHIELD, grain auger brg

2шт.

45

628535R1

SHIM

grain auger brg, serial no. 1972 and below

12шт.

46

161909C91

TROUGH ASSY, grain auger, perforated

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

16шт.

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

BOLT, 5/16 x 1/2 C-Z hex-hd tap

8шт.

120376

NUT,5/16"-18, G5

30шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

38шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

8шт.

47

157215C11

SECTION ASSY, grain auger trough bottom extension front

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

48

174484C1

CLAMP ASSY, grain auger trough, not perforated screen

1шт.

48

168008C1

CLAMP

ASSY, grain auger trough, perforated screen, serial no. 3687 and below

1шт.

48

174464C1

CLAMP ASSY, grain auger trough, perforated screen, serial no. 3688 and above

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

49

160543C11

DEFLECTOR ASSY, grain auger trough left

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt tr-hd

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

50

160544C11

DEFLECTOR ASSY, grain auger trough right

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt tr-hd

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

51

161913C11

COVER ASSY, grain auger trough

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

7шт.

52

157168C1

SUPPORT

REINFORCEMENT, grain auger trough left end

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

5шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt truss-hd

5шт.

53

588562R91

CHAIN LINK

LINK, grain elevator conveyor chain offset

1шт.

54

157207C1

SPACER

grain auger

1шт.

55

482372R1

SPACER, grain elevator support

2шт.

20628R1

BOLT,Hex, 3/8"-16 x 3 1/4", G2

3/8 x 3-1/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

56

170540C1

SHAFT

ASSY, grain elev head, serial no. 1973 and above

1шт.

21789R1

WASHER

1-1/32 x 1-1/4 x 16 ga

11шт.

57

170778C1

EXTENSION, grain trough rear, serial no. 1973 and above

1шт.

58

171983C1

STRIP, elevator filler lower, serial no. 3667 and above

1шт.

59

171984C1

STRIP, elevator filler LH, serial no. 3667 and above

1шт.

60

171985C1

STRIP, elevator filler RH, serial no. 3667 and above

1шт.

61

162038C91

SPROCKET ASSY, elev boot shaft drv 17T, serial no. 3783 and below

1шт.

61

174171C1

SPROCKET ASSY, elev boot shaft drv 21T, serial no. 3784 and above

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

379990R1

HEADED PIN

PIN, 3/8 x 2 C-Z std hd dld

1шт.

62

174172C1

STRAP, elevator tie inner

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

3шт.

63

174173C1

STRAP, elevator tie outer

1шт.

64

175288C1

PLATE ASSY, elevator head guide

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex-hd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

101994

SCREW, no. 10 x 1/2 wood

4шт.
