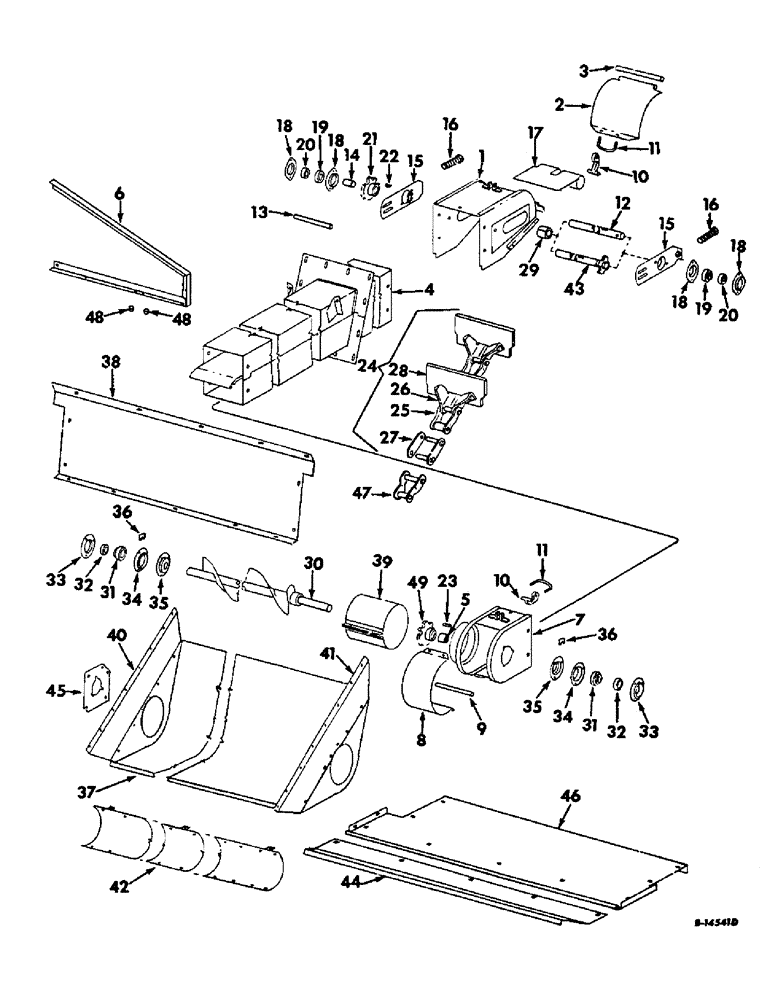

Запчасти Case IH 815 (S-02) - ELEVATORS, GRAIN ELEVATOR, NOT BEAN SPECIAL Elevators

1

160732C91

HEAD

ASSY, grain elevator

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

6шт.

2

160737C1

DOOR

grain elevator head

1шт.

3

160743C1

PIN

ROD, grain elevator head door hinge

1шт.

4

169333C1

HOUSING ASSY, grain elevator, for standard grain tank

1шт.

4

169344C1

HOUSING ASSY, grain elevator, for hi capacity grain tank

1шт.

4

169340C1

HOUSING ASSY, grain elevator, for raised leveling auger

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

12шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt truss-hd

10шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt truss-hd

2шт.

106969R1

WASHER

.344 x 1-1/4 x 16 ga C-Z

8шт.

21751R1

WASHER

.406 x 1-3/4 x 16 ga

1шт.

5

157207C1

SPACER

grain auger

1шт.

6

160786C1

SUPPORT, grain elevator

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

2шт.

7

160744C92

BOOT

ASSY, grain elevator, rice special, serial no. 3783 and below, all combines serial no. 3784 and above

1шт.

7

160739C1

BOOT ASSY, grain elevator, not rice special, serial no. 3783 and below

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .68 x .06

1шт.

8

160741C1

DOOR

grain elevator boot, not rice special, serial no. 3783 and below

1шт.

8

160747C1

DOOR

grain elevator boot, for rice special, serial no. 3783 and below, all combines serial no. 3784 and above

1шт.

8

160742C1

DOOR

grain elevator boot, perforated, serial no. 3783 and below

1шт.

8

174194C1

DOOR

grain elevator boot, perforated, serial no. 3784 and above

1шт.

9

160743C1

PIN

grain elevator boot door hinge, not rice special, serial no. 3783 and below

1шт.

9

160748C1

PIN

grain elevator boot door hinge, for rice special, serial no. 3783 and below, all combines serial no. 3784 and above

1шт.

10

155909C1

LATCH

grain elevator door

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

Q711

HEADED PIN,1/4" x 1 1/4"

PIN, 1/4 x 1-1/4 std hd

2шт.

11

664360R1

BOLT,U, 1/4" - 20 x 69.65"

grain elevator door U

2шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4 nylon insert lock

1шт.

12

160694R1

SHAFT, grain elevator head, serial no. 1972 and below

1шт.

21789R1

WASHER

1-1/32 x 1-1/4 x 16 ga C-Z

6шт.

13

160431C1

PIPE

SPACER, grain elevator head shaft

1шт.

14

160695C1

SPACER

grain elevator head shaft sprocket left

1шт.

15

170584C11

BRACKET

ASSY, grain elev head shaft brg

2шт.

19389R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 9", Gr 2

BOLT, 5/16 x 9 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

Q399

WASHER

11/32 x 1 x 16 ga

2шт.

16

611421R1

BOLT,Hex, 7/16" - 14 x 3 1/2", Full Thd

7/16 x 3-1/2 C-Z hex-hd mach

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex

2шт.

17

160697C1

SHIELD

grain elevator head

1шт.

18

155265C1

FLANGE

grain elevator head shaft brg

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

19

160796C91

BALL BEARING,25.4mm ID x 51.99mm OD x 16.56mm W

BEARING, grain elevator head shaft

2шт.

20

564853R11

COLLAR

ASSY, bearing locking

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd set

2шт.

21

165292C1

SPROCKET ASSY.

SPROCKET, grain elevator conveyor chain upper 6T, serial no. 1290 and below

1шт.

21

168683C1

SPROCKET

grain elevator conveyor chain upper 7T, serial no. 1291 and above

1шт.

22

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

23

155308C1

KEY

1/4 x 1-5/16 sq-parallel

1шт.

24

160698C91

CONVEYOR

W/FLIGHT, grain elevator, standard grain tank

1шт.

24

169374C91

CONVEYOR

W/FLIGHT, grain elevator, hi capacity grain tank

1шт.

24

169372C91

CONVEYOR W/FLIGHT, grain elevator, grain tank w/raised leveling auger

1шт.

581290R1

RIVET

5/16 x 11/16 tubular

1шт.

25

588566R91

LINK

grain elevator conveyor chain roller

1шт.

26

150722C91

LINK

grain elevator conveyor chain attaching

1шт.

27

588564R11

LINK

grain elevator conveyor chain connecting

1шт.

28

160709C91

RUBBER FLIGHT

FLIGHT ASSY, grain elevator conveyor, includes ref no. 26, rubber flight

1шт.

28

160710C91

STEEL FLIGHT

FLIGHT ASSY, grain elevator conveyor, steel flight, includes ref no. 26

1шт.

581290R1

RIVET

5/16 x 11/16 tubular

2шт.

29

157207C1

SPACER

grain elevator head shaft sprocket right

1шт.

30

157201C91

AUGER

ASSY, grain

1шт.

31

165333C91

BALL BEARING

BEARING, grain auger

2шт.

32

564853R11

COLLAR

ASSY LOCKING W/SET SCREW, not used LH w/monitor control

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd set

2шт.

33

937518R91

FLANGE

W/STR LUB FITTING, grain auger brg

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

34

937517R1

FLANGE

grain auger brg grooved

2шт.

35

589389R1

CYLINDER END CAP

SHIELD, grain auger brg

2шт.

36

628535R1

SHIM

grain auger brg, serial no. 1972 and below

12шт.

37

157208C91

TROUGH ASSY, grain auger, not perforated screen

1шт.

37

161909C91

TROUGH ASSY, grain auger, w/perforated screen

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

BOLT, 5/16 x 3/4 C-Z hex-hd tap

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

1шт.

38

157215C11

SECTION ASSY, grain auger trough bottom extension front

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

39

162120C91

CLAMP

ASSY, grain auger trough, not perforated screen

1шт.

39

168008C1

CLAMP

grain auger trough

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , w/perforated screen 5/16"

2шт.

40

160543C11

DEFLECTOR ASSY, grain auger trough left

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt tr-hd

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

41

160544C11

DEFLECTOR ASSY, grain auger trough right

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt tr-hd

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

42

161913C11

COVER ASSY, grain auger trough, for perforated screen

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

43

170540C1

SHAFT

ASSY, grain elevator head, serial no. 1973 and above

1шт.

21789R1

WASHER

1-1/32 x 1-1/4 x 16 ga

11шт.

44

170778C1

EXTENSION, grain trough rear, serial no. 1973 and above

1шт.

45

157168C1

SUPPORT

REINFORCEMENT, grain auger trough left end

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

5шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt truss-hd

5шт.

46

157219C1

SECTION, grain auger trough bottom rear extension

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

47

588562R91

CHAIN LINK

LINK, grain elevator conveyor offset

1шт.

48

482372R1

SPACER, grain elevator support

2шт.

20628R1

BOLT,Hex, 3/8"-16 x 3 1/4", G2

3/8 x 3-1/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

49

165292C1

SPROCKET ASSY.

SPROCKET, grain elevator conveyor chain lower 6T

1шт.

168020C91

PERFORATED SCREENS AND DOORS, parts accessories, serial no. 3783 and below, includes ref no. 8, 37, 39 and 42, also parts in tailings elevator, trough and drive

1шт.

172420C1

PERFORATED SCREENS AND DOORS, parts accessories, serial no. 3784 and above, includes ref nos. 8, 37, 39 and 42, also parts in tailings elevator, trough and drive

1шт.
