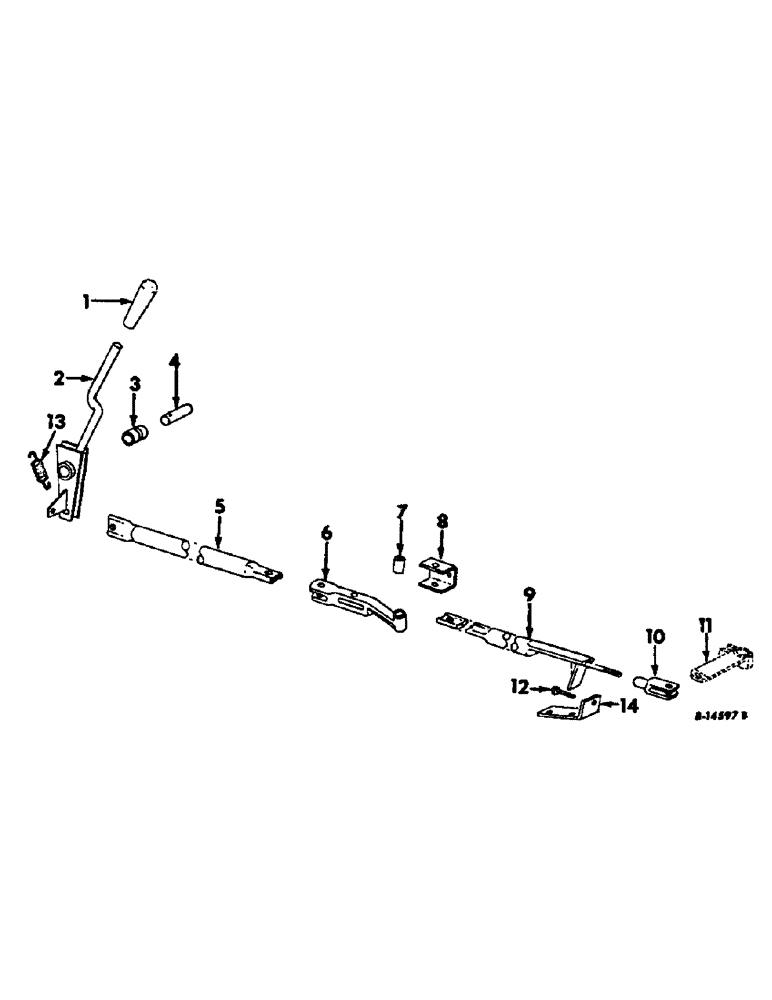

Запчасти Case IH 815 (H-14) - CONTROLS, SEPARATOR CLUTCH CONTROL Controls

1

157473C1

KNOB

GRIP, separator clutch control lever

1шт.

2

164512C91

LEVER ASSY, separator clutch control, includes ref. no. 3

1шт.

3

938847R91

BEARING ASSY, separator clutch control lever

1шт.

4

165170C1

SHAFT, separator clutch control lever pivot

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga C-Z

4шт.

5

164517C1

PIPE, separator clutch control forward

1шт.

671034R1

PIN

1/2 x 1-1/2 C-Z std

1шт.

6

164518C1

ARM, separator clutch control intermediate pivot

1шт.

7

164519C1

SPACER,5/8" Tube x 1 5/8"

separator clutch control intermediate pivot

1шт.

18783R1

BOLT,Hex, 3/8"-16 x 2 1/2", G2

3/8 x 2-1/2 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

8

164520C1

BRACKET, separator clutch control intermediate pivot

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

475954R1

NUT

3/8 C-Z flange lock

1шт.

9

164521C91

PIPE ASSY, separator clutch control

1шт.

120371

NUT,1/2"-20, G5

1шт.

586591R1

COTTER PIN

PIN, qa C-Z cotter

1шт.

671034R1

PIN

1/2 x 1-1/2 C-Z std hd

1шт.

10

144245

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS, 1/2-20 x 3 C-Z LT adj rod end

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, 1/2 x 1-27/64 C-Z rod end

1шт.

11

ARM, separator clutch control, see section B under separator drive unit for listing

1шт.

12

564638R1

SCREW, 3/8 x 2-1/2 C-Z hex-hd cap

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

13

228

SPRING

separator clutch front control rod

1шт.

586591R1

COTTER PIN

PIN, qa cotter

2шт.

21932R1

HEADED PIN,1/2" x 2"

PIN, 1/2 x 2 C-Z std hd

1шт.

14

167951C11

BRACKET ASSY, separator clutch control stop

1шт.
