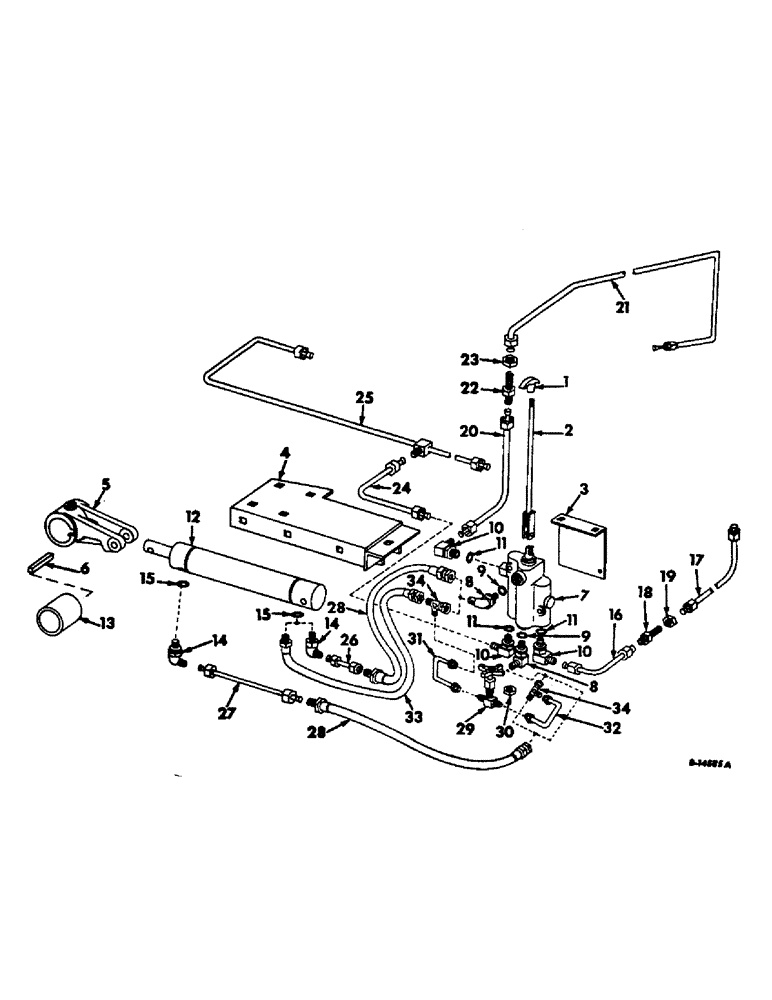

Запчасти Case IH 815 (H-10) - CONTROLS, OPERATORS DECK LADDER LIFT CONTROL Controls
№
Артикул
Название
Примечание
Количество
1
166554C1
HANDLE, operator ladder lift control
1шт.
2
166555C91
ROD ASSY, operator ladder lift control
1шт.
112726
COTTER PIN,1/16" x 1/2"
PIN, SPLIT (COTTER), 1/16" x 1/2"
1шт.
20155R1
CLEVIS PIN,3/16" x .719"
PIN, 3/16 x 23/32 C-Z rod end
1шт.
3
166557C1
BRACKET, operator ladder lift valve
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk crg
2шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
4
166558C91
BRACKET ASSY, operator ladder lift cyl
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk crg
2шт.
12872R1
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd
1шт.
120376
NUT,5/16"-18, G5
3шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
3шт.
5
164562C2
ARM, operator ladder lift
1шт.
473443R1
COTTER PIN
3/32 x 2 ga C-Z
1шт.
22077R1
PIN, 5/16 x 3-1/4 std hd C-Z
1шт.
21719R1
WASHER
2 1/32 x 2 3/4 x 11 ga C-Z
2шт.
6
Q56
KEY, 1/2 x 2 sq 1/2" Sq x 2", Par
1шт.
7
166995C91
VALVE ASSY, oper ladder lift control, refer to section F listed under ladder lift control valve
1шт.
18659R1
BOLT,Hex, 1/4" - 20 x 2", Gr 2
1/4 x 2 hex-hd mach
2шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
8
156264C91
ELBOW,90º, 7/16"-20, 37º x 9/16"-18, O-Ring
9/16-18 37 deg hyd tube 90 deg
2шт.
9
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, for 3/8 OD tube
2шт.
10
935036R91
ELBOW
9/16-18 37 deg hyd tube 90 deg, serial no. 3193 and below
3шт.
10
9410976
ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring
9/16-18 37 deg hyd tube 90 deg, serial no. 3194 and above
3шт.
11
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
for 1/2 OD tube, serial no. 3193 and below
3шт.
11
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, for 3/8 OD tube, S/N 3194 and above
3шт.
12
166996C91
CYLINDER ASSY, operator ladder lift
1шт.
18481R1
COTTER PIN,3/16" x 1"
PIN, SPLIT (COTTER), 3/16" x 1"
2шт.
22895R1
PIN,1/2" x 2 7/8"
1/2 x 2-7/8 C-Z std hd dld
2шт.
13
24569R1
SPACER, 2 x 1-3/8 std pipe
1шт.
14
156264C91
ELBOW,90º, 7/16"-20, 37º x 9/16"-18, O-Ring
9/16-18 37 deg hyd tube 90 deg, 2 used serial no. 1978 and below, 1 used serial no. 1979 and above
1шт.
15
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, for 3/8 OD tube
2шт.
16
167309C1
TUBE ASSY, platform lift valve to ladder valve front
1шт.
17
167402C1
TUBE ASSY, platform lift valve to ladder valve rear
1шт.
18
9403254
FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree
UNION, 9/16-18 bulk head
1шт.
19
9403293
LOCK NUT,Blkhd, 9/16"-18
NUT, 9/16-18 bulk head union
1шт.
20
167400C1
TUBE ASSY, by pass to auxilary valve front
1шт.
21
167401C1
TUBE ASSY, by pass to auxilary valve rear
1шт.
22
9403254
FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree
UNION, 9/16-18 bulk head
1шт.
23
9403293
LOCK NUT,Blkhd, 9/16"-18
NUT, 9/16-18 bulk head union
1шт.
24
167397C1
TUBE, hyd ladder lift valve return
1шт.
25
167398C1
TUBE, foot-n-inch valve return
1шт.
26
167403C1
TUBE ASSY, hyd ladder lift cyl short, serial no. 1978 and below
1шт.
27
167404C1
TUBE ASSY, hyd ladder lift cyl long
1шт.
28
162305C91
HOSE
ASSY, hyd ladder lift cyl to valve, 2 used serial no. 1978 and below, 1 used serial no. 1979 and above
1шт.
29
170614C1
VALVE ASSY, manual ladder release, serial no. 1979 and above
1шт.
30
9403293
LOCK NUT,Blkhd, 9/16"-18
NUT, 9/16-18 bulkhead, serial no. 1979 and above
1шт.
31
170615C1
TUBE, manual valve to cyl piston end, serial no. 1979 and above
1шт.
32
170616C1
TUBE, manual valve to cyl rod end, serial no. 1979 and above
1шт.
33
170617C1
HOSE, lift valve to cyl end, serial no. 1979 and above
1шт.
34
9410330
TEE,37 Degree, 7/16"-20 x 7/16"-20, Fem Sw Run
7/16-20 37 deg hyd flared tube, serial no. 1979 and above
2шт.
Выбрано товаров: 53
