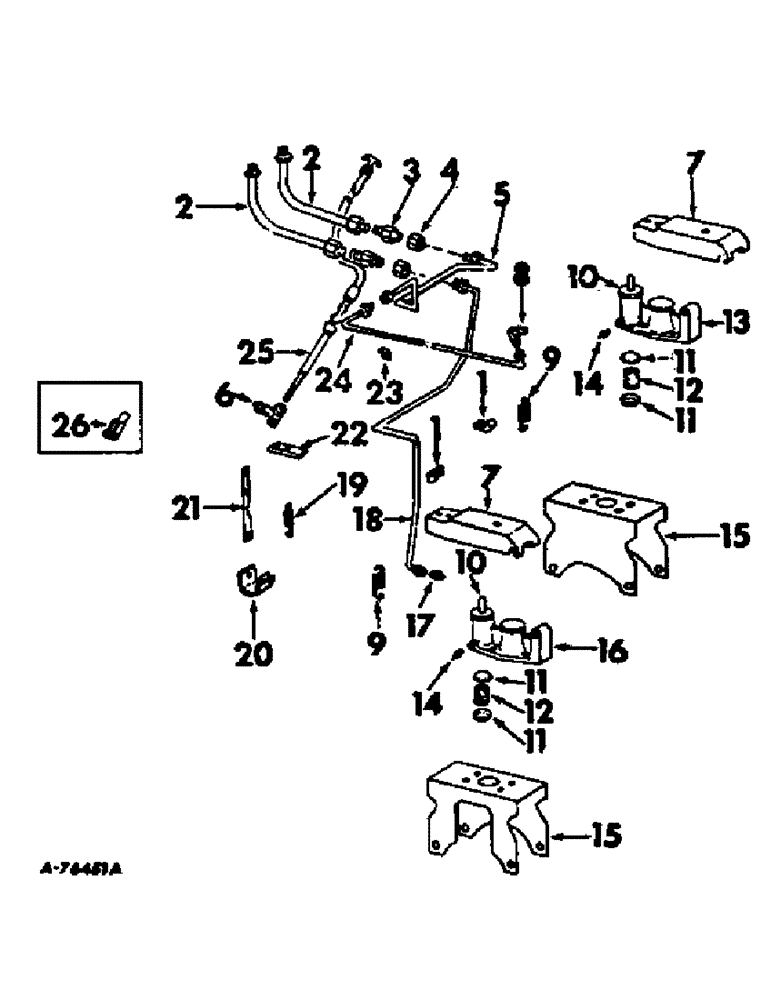

Запчасти Case IH 815 (H-03) - CONTROLS, WHEEL BRAKE CYLINDER AND PARKING BRAKE, FOR USE W/ CHAIN DRIVE FEEDERS S/N 1169 AND BELOW Controls

1

573674R1

CLIP

left and right brake tube

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

TUBE ASSY, brake upper, use 10 in. of 1/4 OD steel tubing from 25 ft roll marked 990094C1, one 9403525 nut, one 9403477 sleeve and one 142432 nut

2шт.

3

9403252

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

UNION, 7/16-20 flared tube 37 deg C-Z

2шт.

4

9403291

BHD LOCK NUT,Blkhd, 7/16"-20

NUT, 7/16-20 flared tube 37 deg C-Z

2шт.

5

166287C91

TUBE ASSY, upper right brake, use 61 in. of 1/4 OD steel tubing from 25 ft roll marked 990094C1, one 9403525 nut, one 9403447 sleeve and one 157279C1 spud

1шт.

6

165288C91

JOINT

BALL JOINT, 1/4-28 NF

1шт.

7

165283C1

LEVER

wheel brake cylinder

2шт.

441373

PIN, 1/2 x 2-1/4 straight 1/2" x 2 1/4"

2шт.

8

137421

ELBOW UNION

ELBOW, 1/8-27 NPT inverted fare 90 deg

1шт.

9

667480R1

SPRING

brake compression

2шт.

10

662620R1

COVER

BOOT, wheel brake cylinder

2шт.

11

51906H

CUP

wheel brake cylinder piston rubber

4шт.

12

662612R1

SPRING

wheel brake cup

2шт.

13

662614R11

BRAKE ASSY.

CYLINDER ASSY, right wheel brake, includes ref nos. 10, 11 and 12

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

14

660901R1

VALVE

wheel brake cylinder bleed

2шт.

15

665986R2

BRACKET, wheel brake cylinder

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

4шт.

189310

SUPPORT,Hex, 7/16" x 4 1/4"

SCREW, 7/16 x 4-1/4 hex-hd cap

4шт.

893862R1

WASHER

15/32 x 1-1/4 x 11 ga C-Z

4шт.

16

663920R11

CYLINDER

ASSY, left wheel brake, includes ref nos. 10, 11 and 12

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

17

137405

CONNECTOR, ELEC

UNION, 1/8-27 NPT inverted flare plain

1шт.

18

TUBE ASSY, left brake, use 65 in. of 1/4 in. OD steel tubing from 25 ft roll marked 990094C1, one 9403525 nut, one 9403477 sleeve and one 142432 nut

1шт.

19

271199R1

SPRING

parking brake ratchet

1шт.

20

165251C91

SUPPORT ASSY, parking brake ratchet

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

137159

COTTER PIN

3/32" x 5/8"

1шт.

21881R1

CLEVIS PIN

PIN, 3/8 x 1 C-Z rod end

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21

165234C1

SECTOR, parking brake ratchet

1шт.

22

165221C1

BAR, parking brake ratchet

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

23

702093R1

CLAMP, lower right brake

2шт.

24

TUBE ASSY, lower right brake, use 46 in. of 1/4 in. OD steel tubing from 25 ft roll marked 990094C1, one 9403525 nut and one 9403477 sleeve and one 142432 nut

1шт.

25

166148C91

CABLE ASSY, parking brake, 110 in.

1шт.

26

144243

CLEVIS

3/8-24 C-Z adj rod end, 1 used standard, 2 used w/axle extension

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

20286R1

SPLIT PIN/SAFETY PIN

PIN, 3/16 x 1-1/32 C-Z rod end

1шт.

665989R91

PISTON

KIT ASSY, wheel brake cylinder repair

1шт.
