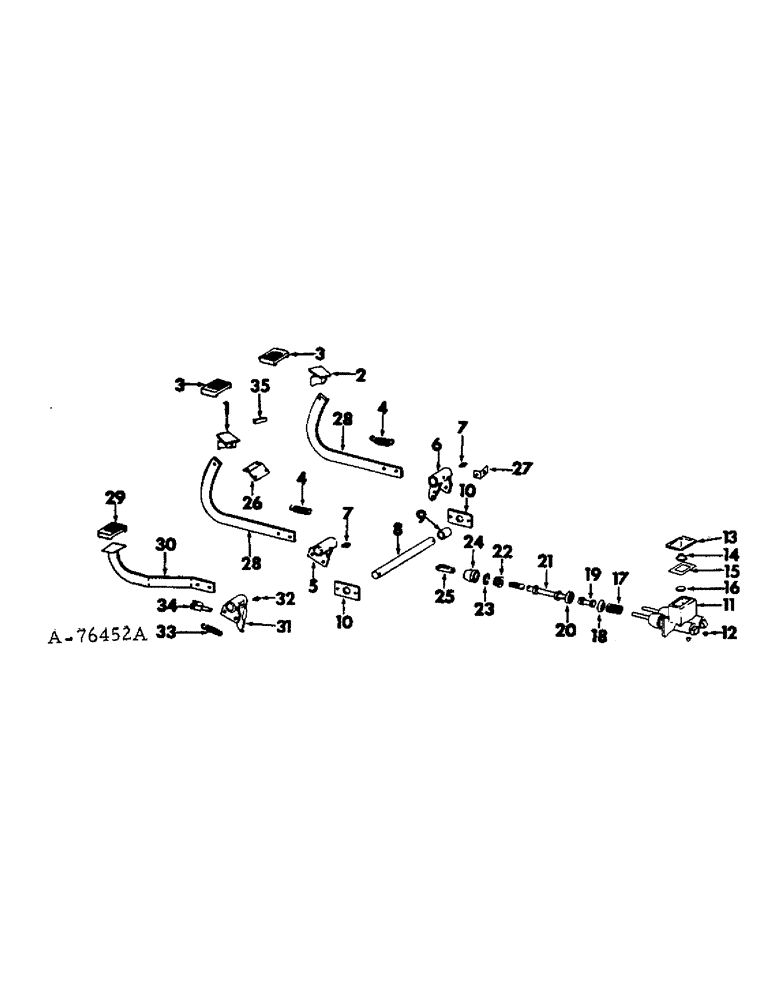

Запчасти Case IH 815 (H-02) - CONTROLS, WHEEL BRAKE, FOOT-N-INCH LEVER, PEDAL AND MASTER CYLINDER Controls

1

163426C1

PEDAL

left wheel brake

1шт.

2

163427C1

PEDAL

right wheel brake

1шт.

3

863426R1

PAD

wheel brake pedal

2шт.

4

398763R2

SPRING

wheel brake pedal return

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

5

165902C1

PIVOT, wheel brake pedal LH

1шт.

6

165903C1

PIVOT, wheel brake pedal RH

1шт.

7

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 NPT 45 deg lub

2шт.

8

164776C1

SHAFT, wheel brake pivot

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

2шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga C-Z

4шт.

9

151478C1

SPACER,1 1/4" Tube x 1 5/8"

brake pivot shaft

1шт.

10

165901C1

BAR

SUPPORT, wheel brake pivot shaft

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

11

672828R91

CYLINDER

ASSY, brake master, includes ref nos. 12 thru 24

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

12

284588C1

INSERT

fitting body

2шт.

13

868351R1

CAP

master cylinder filler

1шт.

180050

BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5

SCREW, 1/4-20 x 2-3/4 C-Z hex-hd cap

1шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .051

1шт.

14

673857R1

SLEEVE

automatic adjustor

1шт.

15

868447R1

GASKET

filler cap

1шт.

16

673856R1

X

RING, external retainer

1шт.

17

228607R91

SPRING ASSY, piston return

2шт.

18

965553R1

CUP

piston

2шт.

19

965552R21

PISTON

ASSY, master cylinder, includes ref no. 20

2шт.

20

965564R1

CUP

SEAL, piston

2шт.

21

965560R1

ROD

master cylinder push

2шт.

124925

JAM NUT,Jam, 3/8"-24, G5

2шт.

22

965561R1

RETAINER

push rod

2шт.

23

228621R1

RING, master cylinder lock

2шт.

24

228629R1

BOOT

master cylinder

2шт.

25

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8-24

1шт.

120369

NUT,3/8"-24, G5

2шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

138084

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1-3/32 C-Z rod end

2шт.

26

165899C1

SUPPORT, wheel brake return spring

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

27

165900C1

ANGLE

CLIP, wheel brake pivot shaft

1шт.

28

164670C1

LEVER, wheel brake pedal

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

29

863426R1

PAD

foot-n-inch control pedal rubber

1шт.

30

165505C91

LEVER ASSY, foot-n-inch control

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

31

164779C1

PIVOT, foot-n-inch control pedal support

1шт.

32

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-45 deg lub

1шт.

33

635503R1

SPRING,148.8mm Free Length

foot-n-inch control pedal return

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

34

165504C91

YOKE

ASSY, foot-n-inch control valve

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

23840R1

CLEVIS PIN,5/16" x 1 3/16"

PIN, CLEVIS, 5/16" x 1 3/16"

1шт.

35

614251R11

BAR

ASSY, brake locking

1шт.

19938R1

PIN,1/8" x 7/8", Coiled

1шт.
