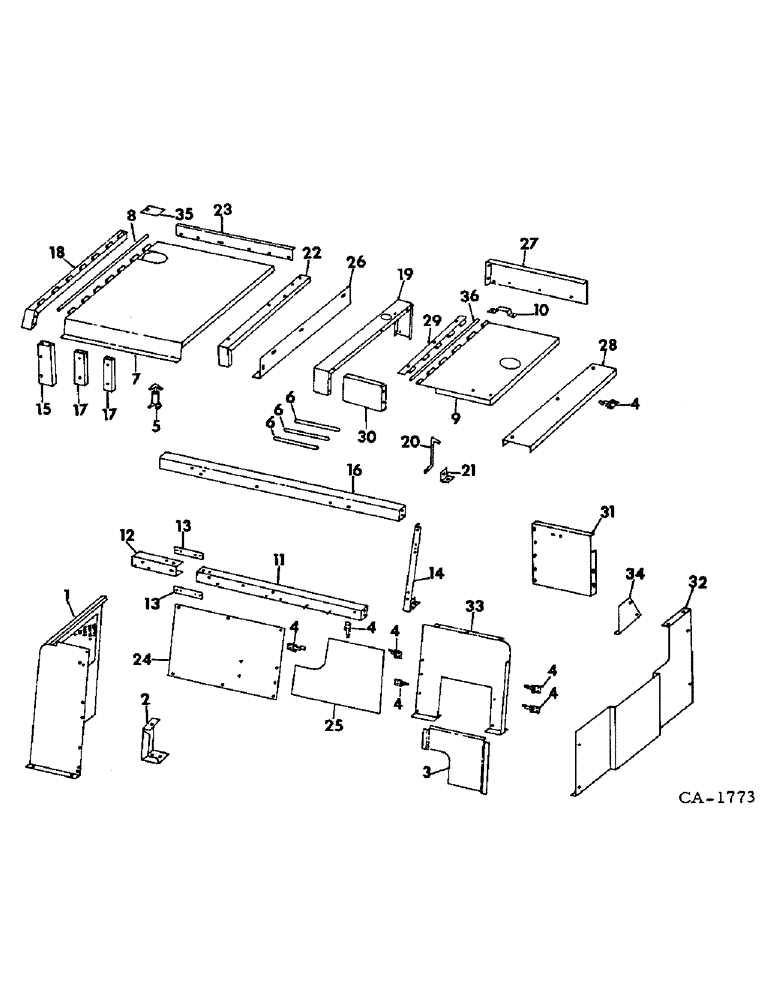

Запчасти Case IH 815 (A-16) - CHASSIS, RADIATOR AND SHEET METAL, ENGINE HOOD COVER, D414 DIESEL Chassis, Radiator & Sheet Metal

1

172685C1

HOOD ASSY, engine lower left

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd mach

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

166535C1

NUT, no. 14 C-Z speed

1шт.

445449

NUT

no. 14 C-Z speed

2шт.

144824

SCREW, no. 14 x 3/4 pan-hd tap

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

2

160946C1

ANGLE, engine hood support left

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

163907C1

DOOR, air cleaner

1шт.

4

167800C1

CLIP

CLIP, air cleaner door retaining

7шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

7шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

no. 10 x 1/2 C-Z pan-hd

7шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

7шт.

5

353443R91

LATCH ASSY.

LATCH ASSY, engine hood

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

no. 10 x 1/2 C-Z pan-hd

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

6

155615C1

TREAD, engine cover non skid

6шт.

7

174332C1

HOOD ASSY, engine left

1шт.

8

568476R1

ROD

engine hood hinge left

1шт.

9

174349C1

HOOD ASSY, engine right

1шт.

10

160638C1

HANDLE

right engine hood

1шт.

938017C1

NUT, 5/16 C-Z whiz lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

2шт.

11

174740C1

CHANNEL, engine hood support lower

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

6шт.

12

174314C1

CHANNEL, engine support lower

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

3шт.

13

174315C1

STRAP, engine hood support lower channel tie

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

8шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

8шт.

14

174316C1

ANGLE, engine hood support right

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

4шт.

15

172691C1

CHANNEL, engine hood

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

2шт.

16

174320C1

CHANNEL ASSY, engine hood upper

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

4шт.

17

174321C1

CHANNEL, air cleaner mount

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

8шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

8шт.

18

174322C1

CHANNEL ASSY, engine hood left center

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

4шт.

19

174325C1

CHANNEL, engine hood right

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

4шт.

20

174482C1

ROD, right engine hood hold-up

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

21

154971C1

ANGLE

right engine hood hold-up rod

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

1шт.

22

174326C1

CHANNEL, engine hood

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

4шт.

23

174327C1

ANGLE, engine hood support

1шт.

24

174328C1

SHEET, engine hood rear cover

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

7шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

7шт.

25

174329C1

SHEET, engine hood rear cover

1шт.

26

174331C1

SHEET, engine hood filler

1шт.

27

174343C1

FILLER, engine hood right front

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

6шт.

28

174344C1

CHANNEL, engine right hood

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

2шт.

29

174298C1

HINGE, engine right hood

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

3шт.

30

(Not used in this application)

1шт.

31

172679C1

SUPPORT, engine hood right upper rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

6шт.

32

174348C1

SUPPORT, engine hood lower right

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

8шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

8шт.

33

172682C1

SUPPORT, engine hood right rear lower

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

17шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

17шт.

34

174347C1

SHEET, engine hood right rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

6шт.

35

159752C1

SUPPORT

BAR, engine left hood stop

1шт.

36

588209R1

ROD, engine hood hinge right

1шт.
