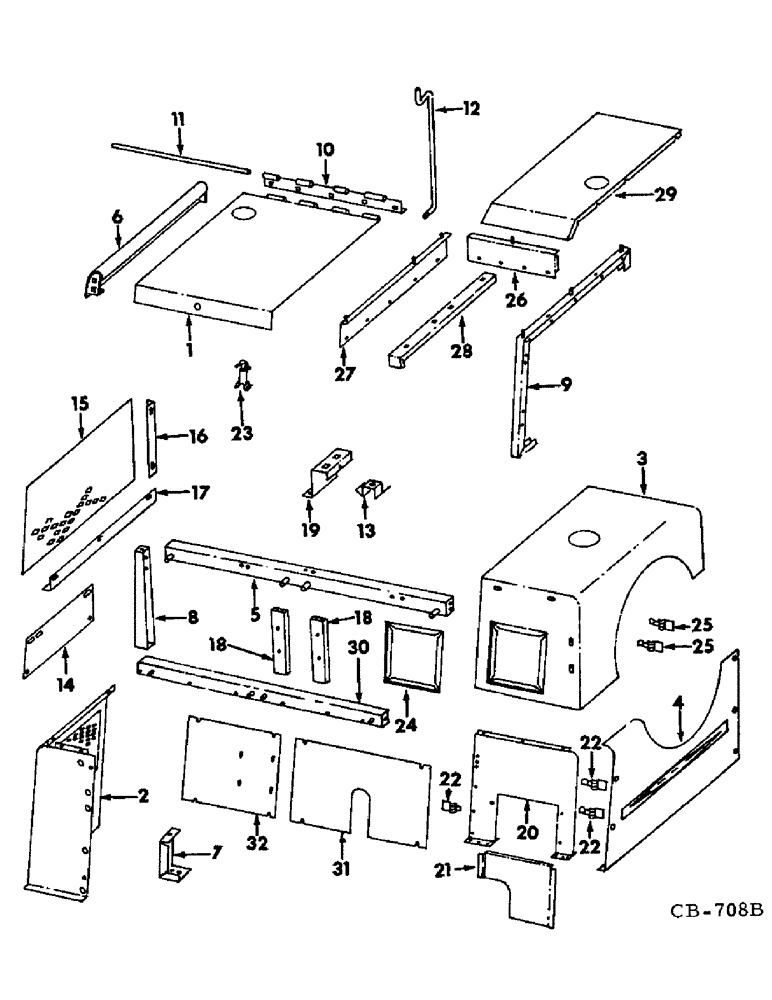

Запчасти Case IH 815 (A-14) - CHASSIS, RADIATOR AND SHEET METAL, ENGINE HOOD COVER, D407 DIESEL Chassis, Radiator & Sheet Metal
№
Артикул
Название
Примечание
Количество
1
160950C91
HOOD ASSY, engine left
1шт.
2
160910C91
HOOD ASSY, engine lower left
1шт.
18654R1
BOLT,Hex, 1/4" - 20 x 3/4", Gr 2
1/4 x 3/4 C-Z hex-hd mach
6шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
6шт.
166535C1
NUT, no. 14 C-Z speed
1шт.
445449
NUT
no. 14 C-Z speed
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
6шт.
3
169008C1
HOOD ASSY, engine upper right
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
1/4 C-Z flange lock
12шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z slt truss-hd
12шт.
4
168715C1
SUPPORT, engine right hood
1шт.
935736R1
NUT, WING
NUT, 5/16 C-Z wing
3шт.
5
167299C91
CHANNEL ASSY, engine hood upper
1шт.
935736R1
NUT, WING
NUT, 5/16 C-Z wing
4шт.
6
164898C91
FRAME ASSY, engine hood
1шт.
7
160946C1
ANGLE, engine hood support left
1шт.
18474R1
BOLT,Hex, 5/16" - 18 x 1", Gr 2
5/16 x 1 C-Z hex hd mach
2шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
8
160943C1
SUPPORT, engine hood left
1шт.
9
168797C1
ANGLE ASSY, engine hood support right
1шт.
10
160898C1
HINGE, engine hood LH
1шт.
475954R1
NUT
3/8 C-Z flange lock
5шт.
11
161851C1
ROD, engine hood hinge
1шт.
12
160896C1
ROD, engine hood support
1шт.
121222
COTTER PIN,3/32" x 3/4"
PIN, SPLIT (COTTER), 3/32" x 3/4"
1шт.
619855R1
WASHER
11/32 x 3/4 x 16 ga C-Z
1шт.
13
164008C1
CLIP, engine hood support rod holder
1шт.
14
163805C1
SHEET, engine hood left
1шт.
15
160984C1
HOOD, engine left
1шт.
16
161853C1
ANGLE, engine hood support
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
2шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt truss-hd
2шт.
17
166507C1
ANGLE, engine hood trim support
1шт.
18
170191C1
CHANNEL, engine hood support center
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
8шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z whiz lock
8шт.
19
167280C1
BRACKET, engine hood
1шт.
20
168798C1
SUPPORT, RH hood rear lower
1шт.
21
168799C1
DOOR, air cleaner
1шт.
22
167800C1
CLIP
CLIP, air cleaner door retainer
3шт.
120614
NUT,Hex, #10 - 32
NUT, #10-32
3шт.
437650
REAR VIEW MIRROR,225mm x 315mm
SCREW, no. 10-32 x 1/2 C-Z pan-hd sltd mach
3шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
3шт.
23
353443R91
LATCH ASSY.
LATCH ASSY, engine hood
1шт.
120614
NUT,Hex, #10 - 32
NUT, #10-32
2шт.
436750
SCREW,Slotted Pan Hd, #10-32 x 1/2"
no. 10 x 1/2 C-Z pan-hd
2шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
2шт.
24
167847C1
DOOR, engine upper right hood access
1шт.
25
167800C1
CLIP
CLIP, engine upper right hood access door
2шт.
120614
NUT,Hex, #10 - 32
NUT, #10-32
2шт.
436750
SCREW,Slotted Pan Hd, #10-32 x 1/2"
no. 10 x 1/2 C-Z, pan-hd sltd mach
2шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
2шт.
26
168792C11
SUPPORT ASSY, center hood front
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk crg
3шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 3/4 C-Z sq-nk crg
1шт.
120376
NUT,5/16"-18, G5
3шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
3шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
27
168828C11
SUPPORT ASSY, center left
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk crg
5шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 C-Z hex hd mach
1шт.
120376
NUT,5/16"-18, G5
6шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
6шт.
28
168829C1
CHANNEL, hood support
1шт.
29
168830C1
HOOD ASSY, engine center
1шт.
935736R1
NUT, WING
NUT, 5/16 C-Z wing
7шт.
30
167298C91
CHANNEL ASSY, engine hood lower
1шт.
938736R1
NUT, 5/16 C-Z wing
1шт.
31
170786C1
SHEET, engine hood rear cover
1шт.
32
170788C1
SHEET, engine cover LH
1шт.
Выбрано товаров: 74
