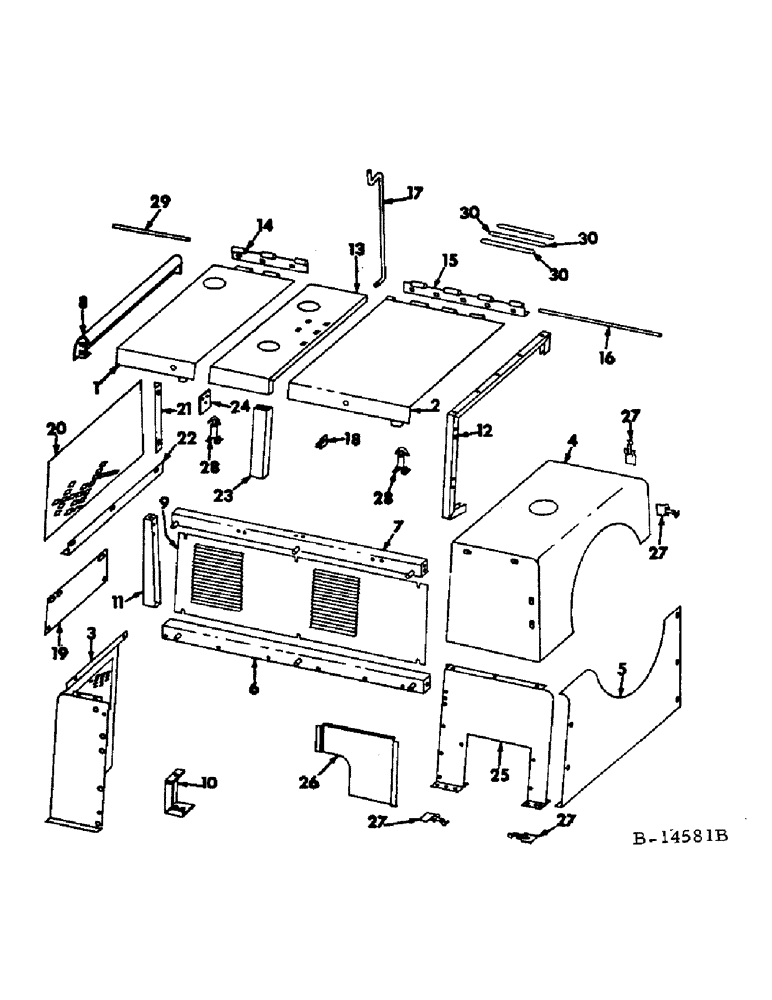

Запчасти Case IH 815 (A-12) - CHASSIS, RADIATOR AND SHEET METAL, ENGINE HOOD COVER, FOR V-8 GASONLINE AND LP GAS ENGINES Chassis, Radiator & Sheet Metal

1

170567C1

HOOD ASSY, engine left

1шт.

2

160953C91

HOOD ASSY, engine right, for V-8 gasoline engine

1шт.

2

168891C1

HOOD ASSY, engine right, for LP gas engine

1шт.

3

160910C91

HOOD ASSY, engine lower left

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd mach

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

166535C1

NUT, no. 14 C-Z speed

1шт.

445449

NUT

no. 14 C-Z speed

2шт.

144824

SCREW, no. 14-10 x 3/4 C-Z slt pan hd tapping type A

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

4

169007C1

HOOD ASSY, engine upper right

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

6шт.

564791R1

SPRING NUT

1/4 speed

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

SCREW, 1/4 x 1/2 C-Z hex-hd mach

6шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 C-Z hex-hd tap

5шт.

5

161501C1

SUPPORT, engine right hood

1шт.

6

167298C91

CHANNEL ASSY, engine hood lower

1шт.

935736R1

NUT, WING

NUT, 5/16 C-Z wing

3шт.

7

167299C91

CHANNEL ASSY, engine hood upper

1шт.

935736R1

NUT, WING

NUT, 5/16 C-Z wing

3шт.

8

164898C91

FRAME ASSY, engine hood

1шт.

9

168800C1

SHEET, engine hood rear cover

1шт.

10

160946C1

ANGLE, engine hood support left

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

160943C1

SUPPORT, engine hood left

1шт.

12

160947C1

ANGLE, engine hood support right

1шт.

13

170576C1

HOOD, engine center

1шт.

14

170574C1

HINGE, engine hood left

1шт.

475954

NUT, 3/8 C-Z flange lock

5шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 flange lock

5шт.

15

167815C1

HINGE, engine hood right

1шт.

475954R1

NUT

3/8 C-Z flange lock

5шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 flange lock

5шт.

16

161851C1

ROD, engine hood hinge RH

1шт.

17

160896C1

ROD, engine hood support

2шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

18

170579C1

CLIP, engine hood support rod holder

2шт.

19

163805C1

SHEET, engine hood left

1шт.

20

160984C1

HOOD, engine left

1шт.

21

161853C1

ANGLE, engine hood support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt truss hd

2шт.

22

166507C1

ANGLE, engine hood trim support

1шт.

23

160906C1

CHANNEL, engine hood support center

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt truss hd

4шт.

24

170580C1

PLATE, engine hood rod support door

2шт.

25

163912C1

SUPPORT, engine hood lower right, serial no. 3601 and below

1шт.

25

172682C1

SUPPORT, engine hood lower right, serial no. 3602 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

17шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

17шт.

26

163907C1

DOOR, air cleaner

1шт.

27

167800C1

CLIP

CLIP, air cleaner door retainer

3шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

3шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

no. 10 x 1/2 C-Z pan-hd

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

28

353443R91

LATCH ASSY.

LATCH ASSY, engine hood

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

4шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

no. 10 x 1/2 C-Z pan-hd

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

29

170573C1

ROD, engine hood hinge LH

1шт.

30

155615C1

TREAD, engine cover non skid

6шт.
