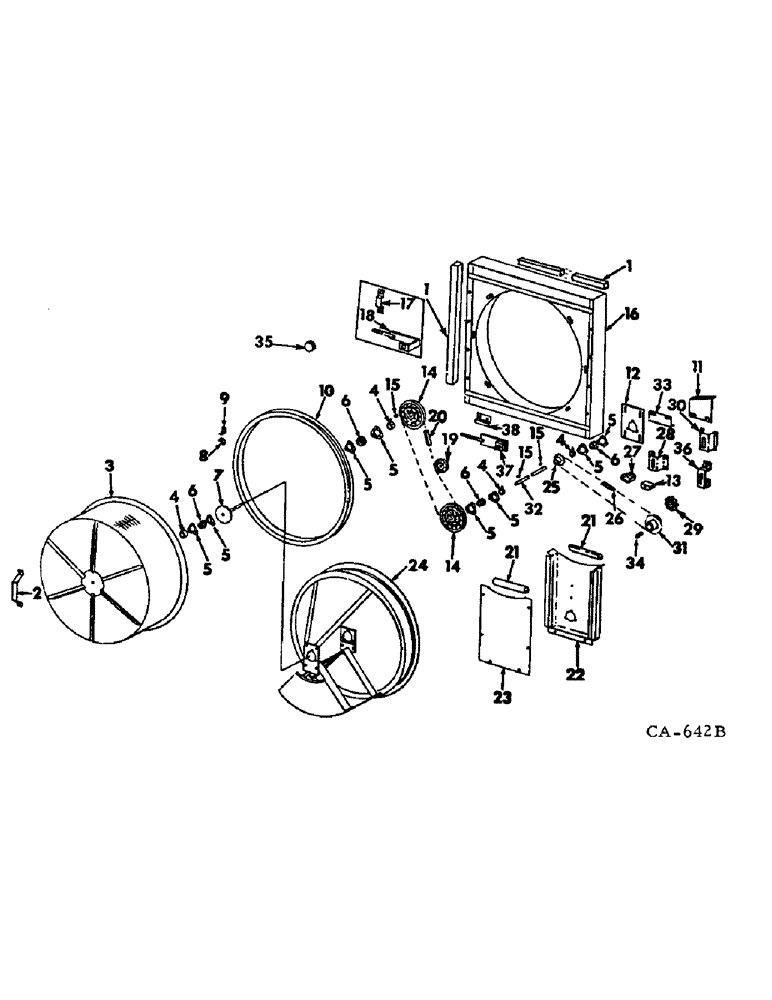

Запчасти Case IH 815 (A-08) - CHASSIS, RADIATOR AND SHEET METAL, RADIATOR ROTARY AIR SCREEN AND DRIVE SERIAL NO. 3783 AND BELOW Chassis, Radiator & Sheet Metal

1

400143R1

GASKET

STRIP, stafoam

4шт.

2

164628C1

HANDLE, rotary air sieve adaptor

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z slt truss hd

2шт.

3

164629C91

SCREEN

SIEVE ASSY, rotary air

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

12шт.

21352R1

RIVET,Tr Hd, 3/16" x .281", Alum.

3/16 x 9/32 semi-tubular

12шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 znd hex-hd cap

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z truss hd

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

165483C11

BEARING

COLLAR W/SET, screw locking

4шт.

20683R1

SCREW, no. 10 x 1/4 hex-soc-hd

4шт.

5

165484C1

FLANGE

bearing

8шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

12шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

6

165482C91

BEARING ASSY,19.05mm ID x 42mm OD x 12mm W

4шт.

7

166487C91

SHAFT ASSY, rotary air screen

1шт.

8

164617C1

ANGLE

CLIP, rotary air sieve brush long

1шт.

19910R1

LOCK NUT

no. 10-24 C-Z lock

1шт.

436736

SCREW,Slotted Pan Hd, #10-24 x 1"

no. 10-24 x 1 C-Z pan hd slt

1шт.

9

164616C1

ANGLE

CLIP, rotary air sieve brush short

1шт.

161013C1

RIVET,Pop, 3/32" x 3/8"

3/32 pop

1шт.

10

164615C91

BRUSH ASSY.

BRUSH ASSY, rotary air sieve, includes ref. nos. 8 & 9

1шт.

11

166481C1

SUPPORT, rotary air screen drive upper

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

12

166477C1

SUPPORT, rotary air screen drive brg

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

13

575622R1

BLOCK, drive chain tightener front, serial no. 3194 and above

1шт.

18785R1

BOLT,Hex, 3/8"-16 x 3", G2

3/8 x 3 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga

3шт.

14

166472C91

PULLEY ASSY, rotary air screen drive and driven

2шт.

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

2шт.

NLS

NO LONGER SERVICED

SCREW, 1/4 x 1 C-Z sq-hd cup pt

2шт.

15

106751

KEY

3/16 x 3/4 woodruff

3шт.

16

162401C91

ADAPTOR ASSY, rotary air sieve, V8 gasoline & LP gas engines, includes ref no. 1

1шт.

16

168716C1

ADAPTOR ASSY, rotary air sieve, diesel engine, includes ref no. 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

8шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

8шт.

17

166473C1

CLAMP, rotary air screen drive belt tightener, serial no. 3193 and below

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

2шт.

18

166474C92

TIGHTENER ASSY, rotary air screen drive belt, serial no. 3193 and below

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

178372R1

WASHER

13/32 x 1-1/4 x 16 ga C-Z

1шт.

19

572267R91

PULLEY ASSY.

PULLEY ASSY, rotary air screen drive belt tightener, 3.25 in OD, hardware for use w/pulley serial no. 3193 and below only

1шт.

19081R1

BOLT,5/8"-11 x 2", G2, Full Thd

5/8 x 2 C-Z no. 3 plow

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

22858R1

SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole

21/32 x 1-1/4 x 12 ga sq hole C-Z

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

2шт.

20

38331K

V-BELT

Rotary air screen drive, V8 gasoline & LP gas engines

1шт.

20

168725C1

V-BELT,0.49" W x 84.99" L

Rotary Air Screen Drive, Diesel Engine 0.49" W x 84.99" L

1шт.

21

166484C1

STRIP, rotary air screen sealing

2шт.

22

166479C91

SUPPORT ASSY, rotary air screen drive, V8 gasoline & LP gas engines

1шт.

22

168721C1

SUPPORT ASSY, rotary air screen drive, diesel engine

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

1шт.

23

166480C1

COVER, rotary air screen drive support, V8 gasoline & LP gas engines

1шт.

23

168720C1

COVER, rotary air screen drive support, diesel engine

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

1шт.

24

165318C91

FRAME ASSY, rotary air screen, V8 engine

1шт.

24

168856C1

FRAME ASSY, rotary air screen, diesel engine

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

8шт.

120376

NUT,5/16"-18, G5

8шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

6шт.

106884

RIVET

3/16 x 1/2 truss-hd

4шт.

135287

RIVET,Truss Hd, 3/16" x 9/16"

3/16 x 9/16 truss-hd

4шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z slt-truss-hd

1шт.

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 C-Z hex-hd tap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

1шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga C-Z

1шт.

25

163884C2

SPROCKET ASSY.

SPROCKET, rotary air screen driven 10T

1шт.

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

1шт.

107345

SUPPORT

SCREW, 1/4 x 1 C-Z sq-hd cup PT set

1шт.

26

CHAIN, rotary air screen drive, order 113 links from A 10-ft roll marked 569089R91, 1 offset link 457114R91 & 1 connecting link 457113R91

1шт.

27

936878R1

BLOCK

rotary air screen drive chain tightener, serial no. 3193 and below

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 C-Z hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

3шт.

28

164096C1

BRACKET, rotary air screen drive chain tightener block

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

29

565336R91

BEARING

SPROCKET, rotary air screen drive tightener-11T

1шт.

20314R1

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 C-Z sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

4шт.

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

17/32 sq x 1-1/4 x 11 ga C-Z

1шт.

30

164096C1

BRACKET, rotary air screen tightener sprocket, serial no. 3193 and below

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

4шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 C-Z slt-truss-hd

4шт.

31

166990C1

SPROCKET, radiator rotary air screen drive 19T

1шт.

32

164095C1

SHAFT, rotary air screen jack

1шт.

33

167018C1

SUPPORT, jackshaft

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

34

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

3/8 x 1-1/2 gib

1шт.

35

178031

SHIM,1 3/4"

1-3/4 button

1шт.

36

173241C1

BRACKET, tightener sprocket rear, serial no. 3194 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

161945R1

SCREW, 5/16 x 1 C-Z whiz lock

2шт.

37

170467C1

TIGHTENER ASSY, rotary screen drive, serial no. 3194 and above

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8 C-Z hex-jam

1шт.

138557

WASHER,Int Tooth, 5/8"

5/8 C-Z int-tooth lock

1шт.

178372R1

WASHER

13/32 x 1-1/4 x 16 ga C-Z

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga

2шт.

38

170469C1

CLIP, drive belt tightener, serial no. 3194 and above

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

4шт.
