Запчасти Case IH 815 (A-07B) - CHASSIS, RADIATOR AND SHEET METAL, FAN BLADE AND BELT DIESEL ENGINES Chassis, Radiator & Sheet Metal

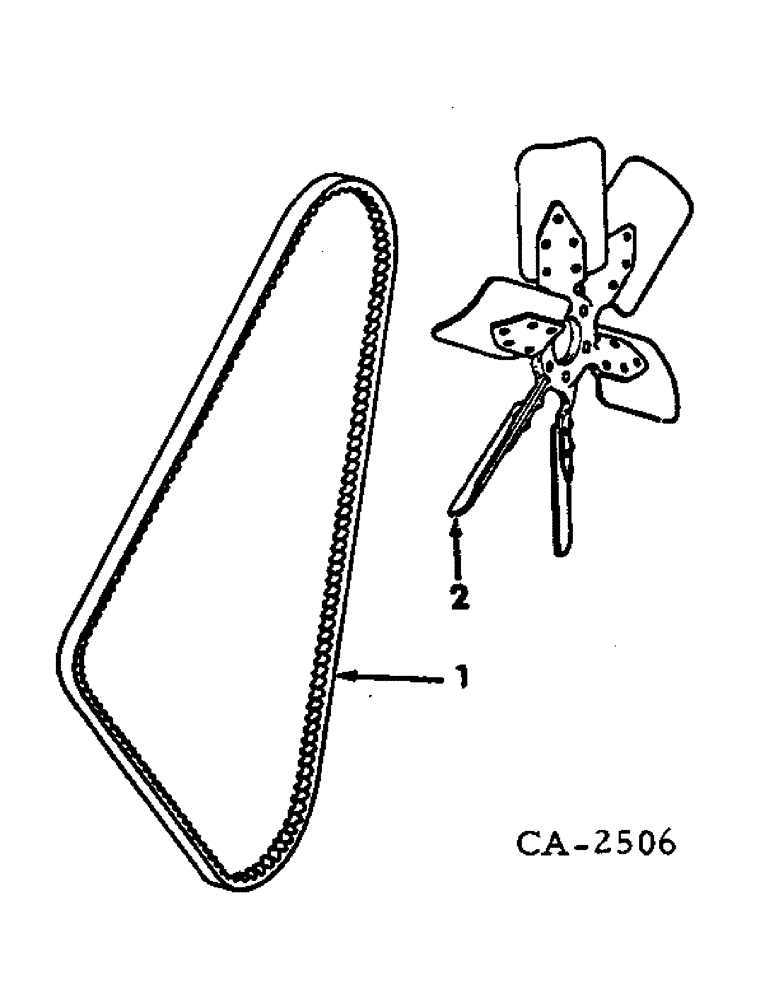

Схема запчастей Case IH 815 - (A-07B) - CHASSIS, RADIATOR AND SHEET METAL, FAN BLADE AND BELT DIESEL ENGINES Chassis, Radiator & Sheet Metal
1
2

Артикул

Название

Примечание

Количество

1

528419R91

SET OF BELTS,0.60" W x 66.50" L

V-Belt, Matched set, Used w/D-407 engines 0.60" W x 66.50" L

1шт.

1

537072R91

SET OF BELTS

Matched, Used w/D-414 engines

1шт.

2

528437R1

BLADE ASSY, fan, used w/D-407 engines

1шт.

2

548218R1

FAN

BLADE ASSY, fan, used w/D-414 engines

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

6шт.

REF#2A SHOULD USE A173736 10/18/96

1шт.

Выбрано товаров: 7
