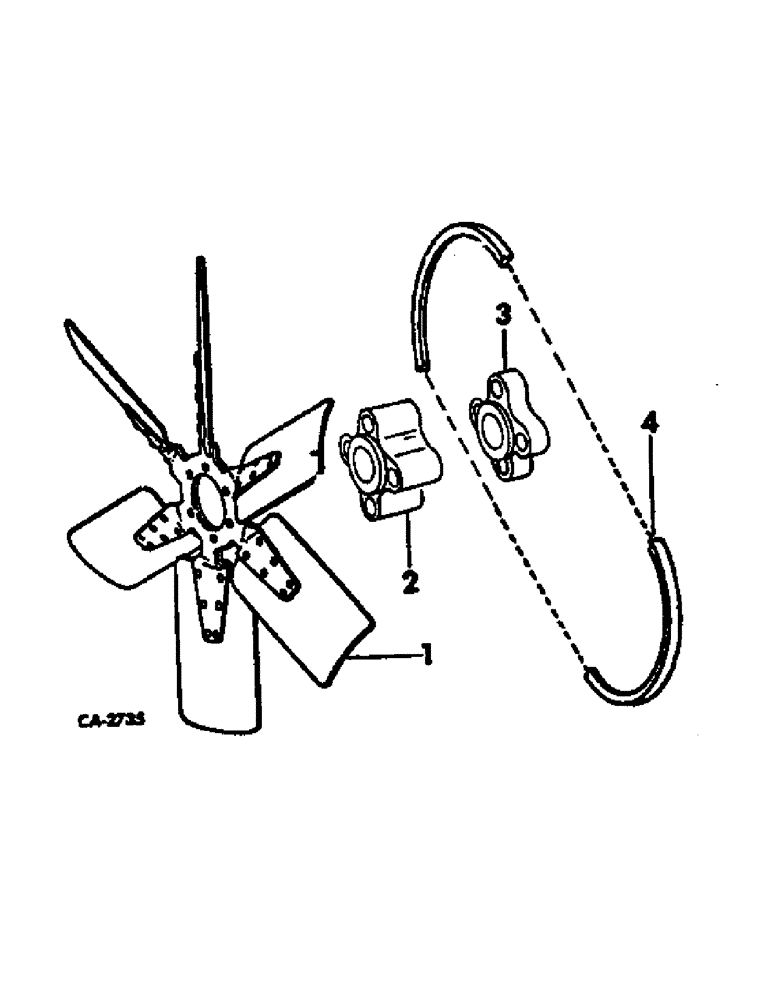

Запчасти Case IH 815 (A-07A) - CHASSIS, RADIATOR AND SHEET METAL, FAN BLADE AND BELT GASOLINE OR LP GAS ENGINES Chassis, Radiator & Sheet Metal

1

400136R1

BLADE ASSY, fan, six bolt mounting, used w/cast iron pulley

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

1

531944R1

FAN

BLADE ASSY, fan, eight bolt mounting, used w/sheet metal pulley, all combines except corn special combine w/345 gasoline engine

1шт.

1

548064R1

BLADE

ASSY, fan, eight bolt mounting, used w/sheet metal pulley, corn special combine w/345 gasoline engine

1шт.

19797R1

BOLT (SPREADER),1/4" x 4 1/4", Gr 5

SCREW, 1/4-28 x 4-1/4 hex-hd cap

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

2

296645C1

SPACER

fan, optional w/401125R1

2шт.

2

401125R1

SPACER

fan, optional w/296645C1

2шт.

3

320287R1

SPACER, fan

1шт.

4

402253R91

SET OF BELTS,0.50" W x 68.00" L

SET OF 2 BELTS , V-Belt, Fan, Water pump & Generator matched belt, V-345 engines 0.50" W x 68.00" L

1шт.

4

402254R91

SET OF BELTS,0.50" W x 66.50" L

BELT , V-Belt, Set, Fan, Water pump & Generator matched belt, V-304 engines 0.50" W x 66.50" L

1шт.
