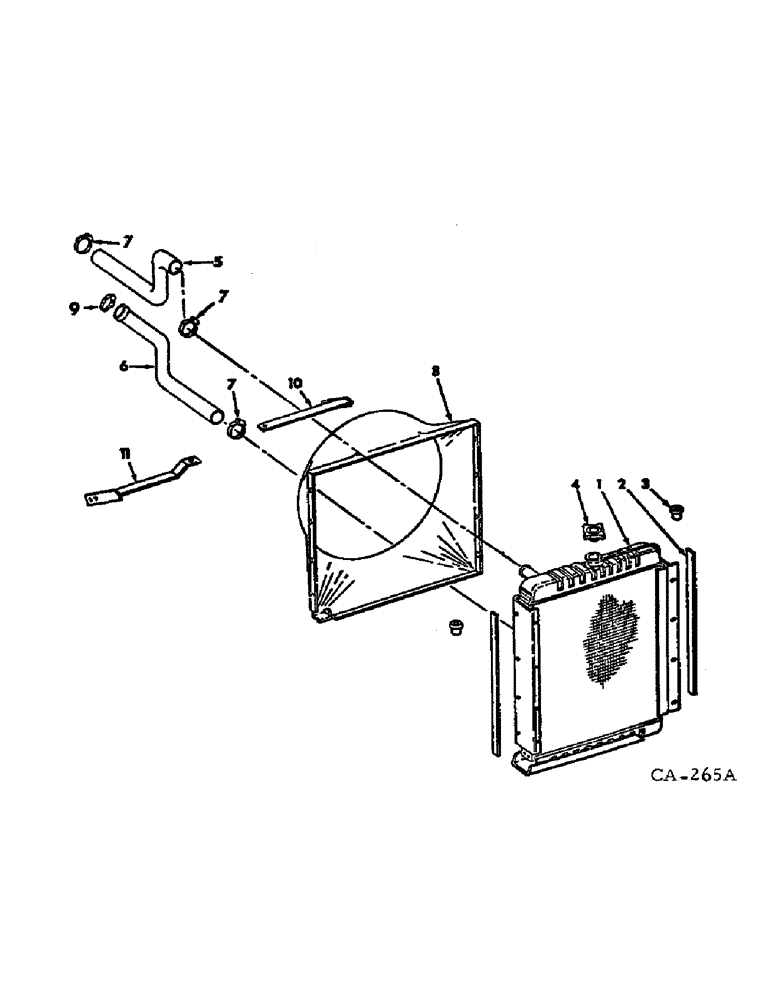

Запчасти Case IH 815 (A-04) - CHASSIS, RADIATOR AND SHEET METAL, RADIATOR AND CONNECTIONS, COMBINE WITH D-407 ENGINES Chassis, Radiator & Sheet Metal

1

400734R3

RADIATOR

ASSY, less pressure cap

1шт.

86982771

VALVE

COCK, radiator drain

1шт.

2

400143R1

GASKET

radiator baffle

2шт.

3

400159R1

BUMPER

MOUNT, radiator vibration

2шт.

18698R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 2

BOLT, 7/16-14 x 2 C-Z short sq-nk crg

2шт.

231-1447

NUT,7/16"-14, GB

NUT, LOCK, , ESNA 7/16"-14, GB

2шт.

20609R1

WASHER

15/32 x 1-3/4 x 11 ga C-Z

2шт.

4

80889R91

COVER

CAP, radiator pressure, 7 PSI, used w/400734R2

1шт.

4

530874R1

CAP

radiator pressure, 10 PSI, used w/400734R3

1шт.

5

528417R1

RADIATOR HOSE,2.00" ID x 14.00", SAE 20R4 Class R Grade 1A

2.00" mm ID X 14.00", SAE 20R4 Class R Grade 1A, Inlet

1шт.

6

528418R1

RADIATOR HOSE,2.00" ID, 2.25" ID x 14.20", SAE 20R4 Class R Grade 1

2.00" ID, 2.25" mm ID X 14.20", SAE 20R4 Class R Grade 1, Outlet

1шт.

7

995223R1

CLAMP

radiator hose

3шт.

8

400134R1

SHROUD

fan

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

124238R1

WASHER, 11/32 x 1 x 16 ga C-Z

6шт.

9

995222R1

CLAMP

radiator hose

1шт.

10

528511R1

BRACE ASSY, radiator LH

1шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

SCREW, 5/16-18 x 1-1/8 znd hex-hd cap

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

528508R1

BRACE ASSY, radiator RH

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120381

WASHER

3/8 znd med lock

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

2шт.
