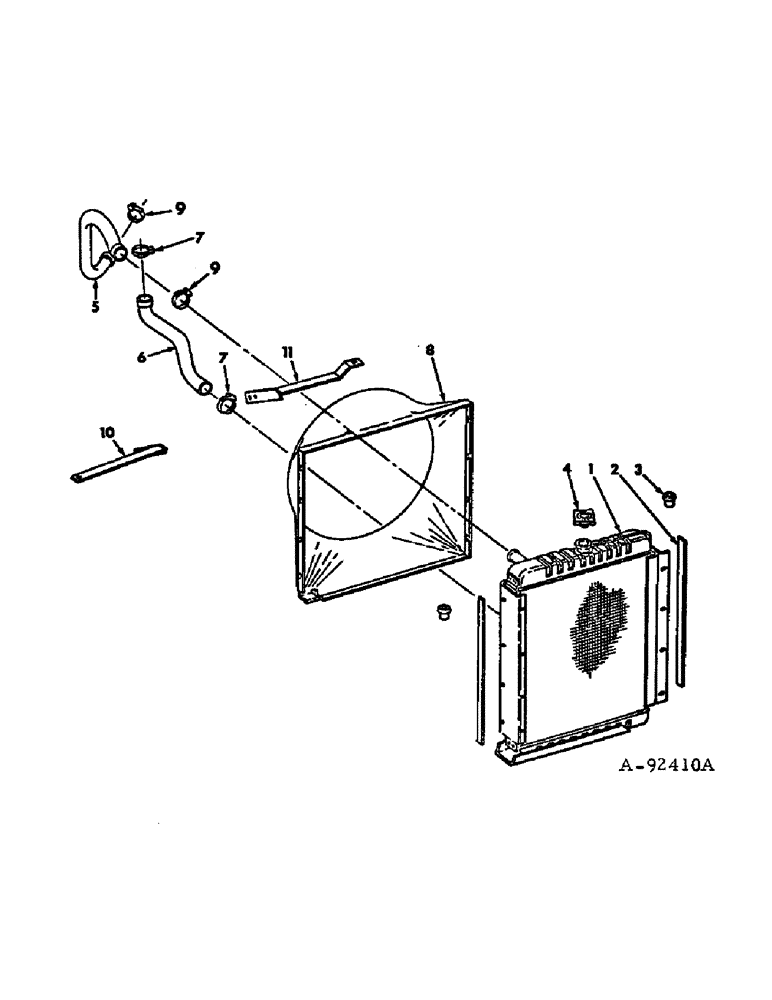

Запчасти Case IH 815 (A-02) - CHASSIS, RADIATOR AND SHEET METAL, RADIATOR AND CONNECTIONS, USED WITH GASOLINE AND LP GAS ENGINES Chassis, Radiator & Sheet Metal

1

400734R3

RADIATOR

ASSY, less pressure cap

1шт.

86982771

VALVE

COCK, radiator drain

1шт.

2

400143R1

GASKET

radiator baffle

2шт.

3

400159R1

BUMPER

MOUNT, radiator vibration

2шт.

18698R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 2

BOLT, 7/16-14 x 2 C-Z short sq-nk crg

2шт.

231-1447

NUT,7/16"-14, GB

NUT, LOCK, , ESNA 7/16"-14, GB

2шт.

20609R1

WASHER

15/32 x 1-3/4 x 11 ga C-Z

2шт.

4

80889R91

COVER

CAP, radiator pressure, 7 PSI, used w/400734R3

1шт.

4

530874R1

CAP

radiator pressure, 10 PSI, used w/400734R3

1шт.

5

403468R1

HOSE, radiator inlet, 304 gasoline engine combines

1шт.

5

401212R1

RADIATOR HOSE,2.00" ID, 2.50" ID x 16.10", SAE 20R4 CLASS R, GRADE 1A

Inlet, 345 gasoline and LP gas engine combines 2.00" ID, 2.50" ID x 16.10", SAE 20R4 CLASS R, GRADE 1A

1шт.

6

401213R1

RADIATOR HOSE,2.00" ID, 2.50" ID x 15.25", SAE 20R4, CLASS R, GRADE 1A

Outlet 2.00" ID, 2.50" ID x 15.25", SAE 20R4, CLASS R, GRADE 1A

1шт.

7

995223R1

CLAMP

radiator hose

2шт.

8

400134R1

SHROUD

fan

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

134238R1

WASHER

11/32 x 11/16 x 16 ga C-Z

6шт.

9

995222R1

CLAMP

radiator hose

2шт.

10

535112R1

BRACE ASSY, radiator LH, 304 gasoline engine combines, replaces 402958R1

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

2шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

SCREW, 3/8-16 x 1-1/8 znd hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

535111R1

BRACE ASSY, radiator LH, 345 gasoline and LP gas engine combines

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

SCREW, 3/8-16 x 1-1/8 znd hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

11

402961R1

BRACE ASSY, radiator RH, 304 gasoline engine combines

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

402966R1

BRACE ASSY, radiator RH, 345 gasoline and LP gas engine combines

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
