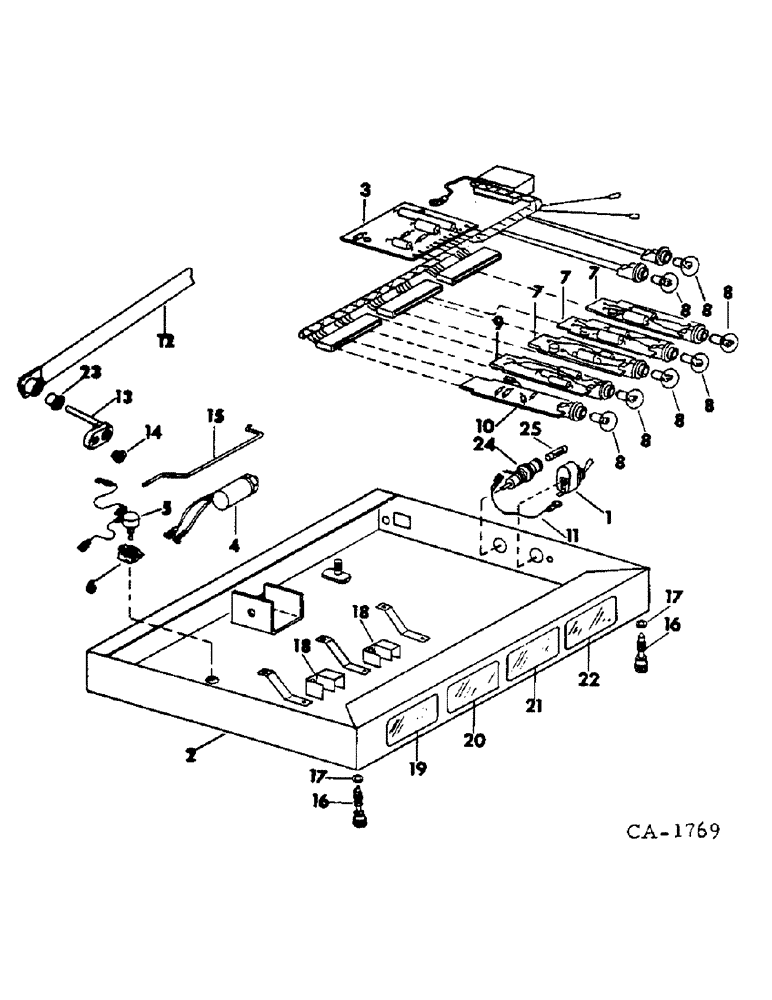

Запчасти Case IH 815 (N-23) - PARTS, ACCESSORIES AND ATTACHMENTS, MONITOR CONTROL PANEL Accessories & Attachments
№
Артикул
Название
Примечание
Количество
174016C91
PANEL ASSY, monitor, includes ref nos. 1 thru 25
1шт.
1
244641R91
SWITCH
ASSY, monitor control
1шт.
2
174017C1
TRAY ASSY, monitor control panel
1шт.
121222
COTTER PIN,3/32" x 3/4"
PIN, SPLIT (COTTER), 3/32" x 3/4"
3шт.
131183
WASHER, no. 10 C-Z med lock
5шт.
3
174027C1
HARNESS ASSY, monitor relay
1шт.
21595R1
SCREW
no. 10 x 3/8 pan-hd slt
2шт.
121801
LOCK WASHER,Int Tooth, #10
WASHER, LOCK, Int Tooth, #10
2шт.
4
174031C1
SOLENOID ASSY
1шт.
121222
COTTER PIN,3/32" x 3/4"
PIN, SPLIT (COTTER), 3/32" x 3/4"
1шт.
5
174033C91
POTENTIOMETER ASSY, includes ref no. 6
1шт.
6
174035C1
KNOB, potentiometer
1шт.
7
174036C1
INDICATOR ASSY, grain & tailings augers and straw rack warning, includes ref no. 8
3шт.
8
9417863
BULB,C2F, #1895, 14V
LAMP, trade no. 1895
7шт.
9
174038C1
INDICATOR ASSY, show warning, includes ref no. 8
1шт.
10
174039C1
INDICATOR ASSY, fan, includes ref no. 8
1шт.
11
174041C1
WIRE ASSY, fuse holder to switch 2.25 inches
1шт.
12
174042C91
WAND ASSY, monitor warning
1шт.
121222
COTTER PIN,3/32" x 3/4"
PIN, SPLIT (COTTER), 3/32" x 3/4"
1шт.
131240
RIVET, 3/32 x 5/32 oval hd tubular
2шт.
13
174047C1
SHAFT ASSY, solenoid link
1шт.
14
174050C1
PIVOT, solenoid link
1шт.
936694
SCREW, no. 8 x 7/16 C-Z pan-hd slt
1шт.
446152
HYD CONNECTOR
13/64 x 15/32 x .036 C-Z
1шт.
15
174051C1
LINK, solenoid
1шт.
16
174052C1
SCREW, monitor control panel mount
2шт.
17
891615C1
WASHER, panel mount screw retaining
2шт.
18
174053C1
HOLDER ASSY, warning indicator
4шт.
19
174056C1
WINDOW ASSY, fan shoe
1шт.
20
174060C1
WINDOW ASSY, tailings grain
1шт.
21
174062C1
WINDOW ASSY, rack chopper
1шт.
22
174064C1
WINDOW ASSY, rack load
1шт.
23
174069C1
BUSHING, monitor warning wand
1шт.
24
376852R91
HOUSING
ASSY, fuse
1шт.
25
3118918R1
FUSE
5 amp type 3AG
1шт.
Выбрано товаров: 37
