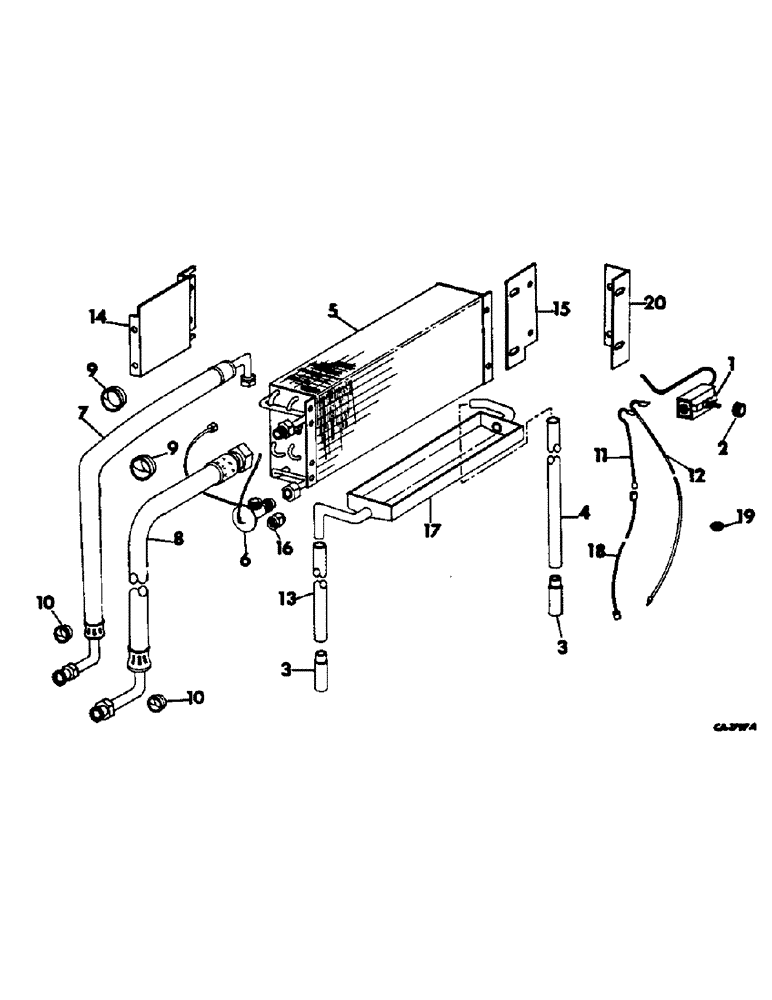

Запчасти Case IH 815 (N-15) - PARTS, ACCESSORIES AND ATTACHMENTS, AIR CONDITIONING EVAPORATOR AND CONNECTIONS S/N 3452 AND ABOVE Accessories & Attachments
№
Артикул
Название
Примечание
Количество
1
175575C1
THERMOSTAT
1шт.
109311H
JAM NUT
thermostat switch
1шт.
2
200860C1
KNOB
thermostat
1шт.
3
173910C1
HOSE
drain 3.75 inches
2шт.
4
HOSE, drain RH, use 106 inches of 1/2 inch plastic tubing
1шт.
5
173915C1
CORE
ASSY, evaporator
1шт.
24388R1
SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"
SCREW, SELF TAPPING, Cross Pan Hd, #10 x 3/8"
4шт.
164539
GEAR
SCREW, no. 14 x 3/8 pan-hd recess
4шт.
6
173899C1
VALVE
expansion, external sensing
1шт.
6
168903C1
VALVE
expansion, internal sensing
1шт.
7
171851C1
HOSE ASSY.
HOSE & TUBE ASSY, 99 inches
1шт.
8
171850C1
HOSE
& TUBE ASSY, 101.5 inches
1шт.
9
173895C1
GROMMET
3/4 ID
1шт.
9
166868C1
GROMMET
1 ID
1шт.
10
173893C1
GROMMET
3/8 ID
1шт.
10
173894C1
GROMMET
5/8 ID
1шт.
11
WIRE, switch to thermostat jumper, use 6 inches of 16 ga wire from 100 ft roll marked 995056R1 and 2 terminals 915073R1
1шт.
12
WIRE, thermostat to condensor front, use 162 inches of 16 ga wire from 100 ft roll marked 995056R1 and 1 terminal 915073R1 & 1 terminal 244063R1 & 1 connector 46893H
1шт.
13
HOSE, drain LH, use 66-3/4 inches of 1/2 inch plastic tubing
1шт.
14
175799C1
BRACKET, evaporator mounting LH, cab w/rear air intake
1шт.
24388R1
SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"
SCREW, SELF TAPPING, Cross Pan Hd, #10 x 3/8"
2шт.
164539
GEAR
SCREW, no. 14 x 3/8 pan-hd recess
2шт.
14
175581C1
BRACKET
evaporator mounting LH, cab w/left side air intake
1шт.
552897R1
SELF-TAP SCREW,1/4" - 20 x 1/2"
SCREW, 1/4 x 1/2 hex-hd washer
2шт.
447163
SCREW, no. 10 x 1/2 hex-hd mach
2шт.
15
175582C1
BRACKET
evaporator mounting RH, cab w/left side air intake
1шт.
552897R1
SELF-TAP SCREW,1/4" - 20 x 1/2"
SCREW, 1/4 x 1/2 hex-hd washer
2шт.
447163
SCREW, no. 10 x 1/2 hex-hd mach
2шт.
16
615195C1
NUT, flared cap, for use w/168903C1, ref.
6шт.
17
175803C1
PAN ASSY, evaporator drain, cab w/rear air intake
1шт.
24396R1
SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"
SCREW, no. 10 x 3/4 pan-hd recess
2шт.
16553R1
WASHER, 7/32 x 1/2 x 16 ga
2шт.
17
175802C1
PAN ASSY, evaporator drain, cab w/left side air intake
1шт.
18
WIRE, thermostat to condensor rear, cab w/rear air intake, use 235 inches of 16 ga wire from 100 ft roll marked 995056R1 and 2 terminals 377279C1
1шт.
19
399347R1
GROMMET, 3/16 ID, cab w/rear air intake
1шт.
20
175800C1
BRACKET, evaporator mounting RH, cab w/rear air intake
1шт.
24388R1
SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"
SCREW, SELF TAPPING, Cross Pan Hd, #10 x 3/8"
2шт.
164539
GEAR
SCREW, no. 14 x 3/8 pan-hd recess
2шт.
Выбрано товаров: 38
