(N-14) - PARTS, ACCESSORIES AND ATTACHMENTS, AIR CONDITIONING EVAPORATOR & CONNECTIONS S/N 3451 AND BELOW

Запчасти Case IH 815 (N-14) - PARTS, ACCESSORIES AND ATTACHMENTS, AIR CONDITIONING EVAPORATOR & CONNECTIONS S/N 3451 AND BELOW Accessories & Attachments

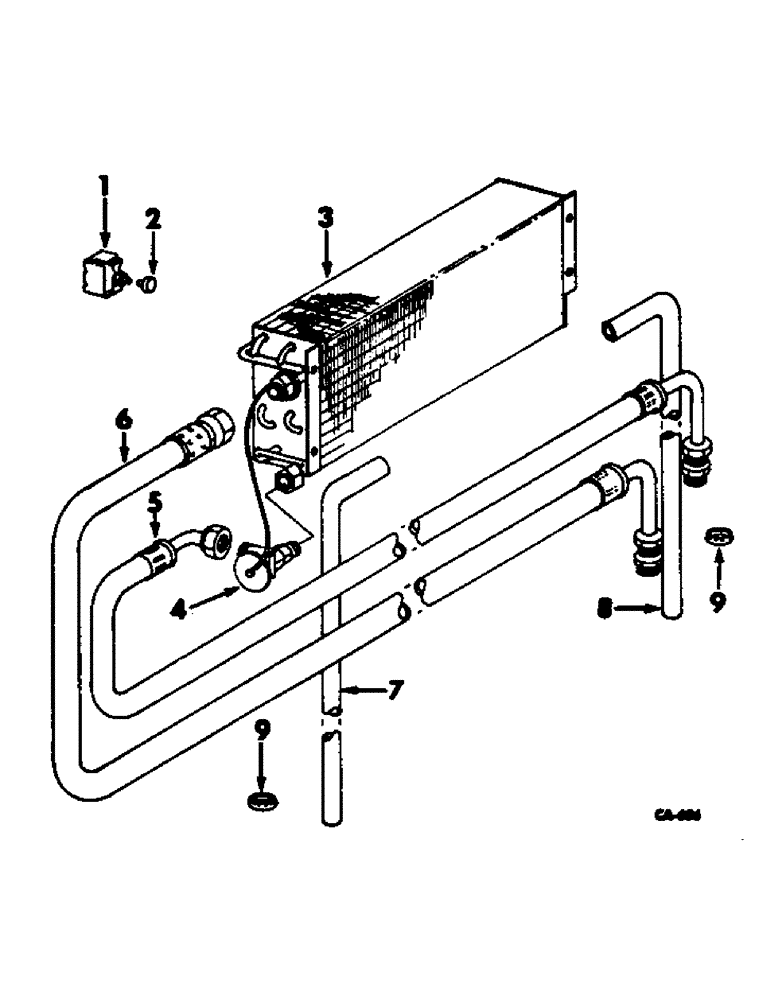

Схема запчастей Case IH 815 - (N-14) - PARTS, ACCESSORIES AND ATTACHMENTS, AIR CONDITIONING EVAPORATOR & CONNECTIONS S/N 3451 AND BELOW Accessories & Attachments
7
5
3
9
2
8
1
6
9
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

168902C1

THERMOSTAT

1шт.

2

200860C1

KNOB

1шт.

3

168904C1

COIL, evaporator

1шт.

4

168903C1

VALVE

expansion

1шт.

5

167867C1

HOSE

ASSY

1шт.

6

167866C1

HOSE

ASSY

1шт.

7

HOSE, LH drain, use 91 inches of excelon clear flexible vinal tubing procure locally

1шт.

8

HOSE, RH drain, use 113 inches of excelon clear flexible vinal tubing, procure locally

1шт.

9

188622H1

GROMMET

2шт.
