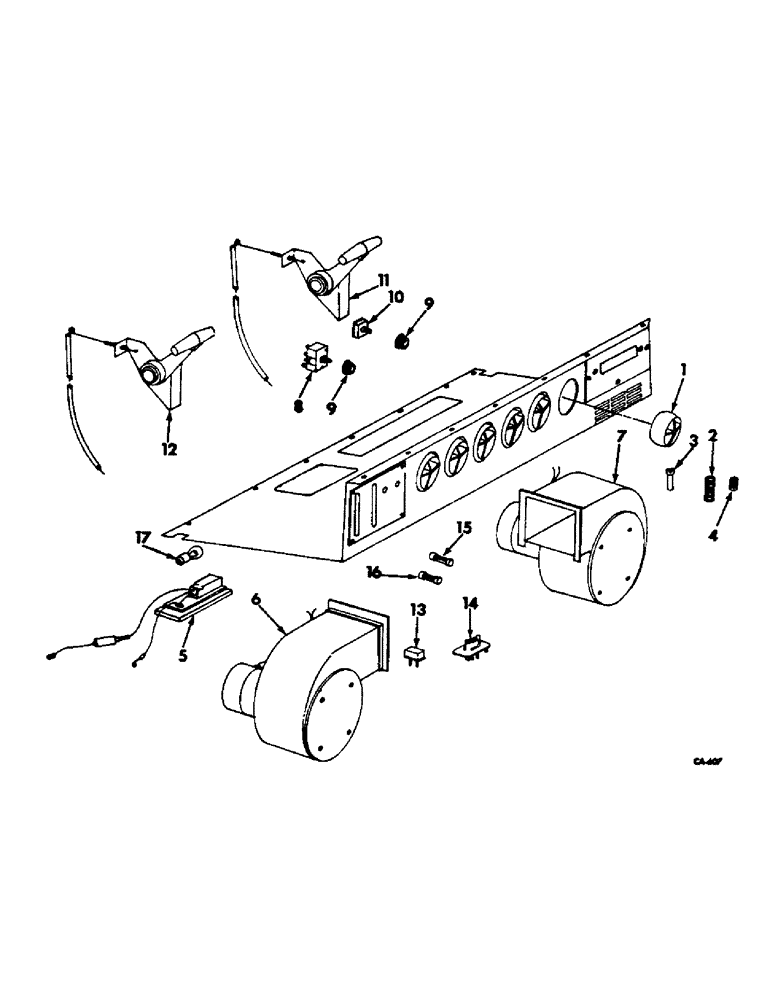

Запчасти Case IH 815 (N-08) - PARTS, ACCESSORIES AND ATTACHMENTS, OPERATORS CAB PRESSURIZER SERIAL NO. 3451 AND BELOW Accessories & Attachments

1

168921C1

DEFLECTOR, air

6шт.

2

168922C1

SPRING, air deflector

6шт.

3

168923C1

PIN, air deflector retaining

6шт.

4

168924C1

SPRING, retaining

12шт.

5

168823C1

LIGHT ASSY, dome

1шт.

6

BLOWER ASSY, 12 volt LH, refer to blower unit for listing

1шт.

7

BLOWER ASSY, 12 volt RH, refer to blower unit for listing

1шт.

8

168822C1

IGNITION SWITCH

SWITCH, blower

1шт.

9

200860C1

KNOB

blower and light

2шт.

10

168251C1

SWITCH

light

1шт.

11

168826C1

LEVER ASSY, roof vent control

1шт.

12

168827C1

LEVER ASSY, damper door

1шт.

13

262969C91

FUSE

BREAKER ASSY, 30 amp

1шт.

14

168824C1

BLOCK, resistor

1шт.

15

147685

FUSE,14 Amp, Type SFE

SFE 14 amp head light

1шт.

16

NLS

NO LONGER SERVICED

FUSE, SFE 4 amp dome light

1шт.

17

86982697

BULB

LAMP, dome light

1шт.
