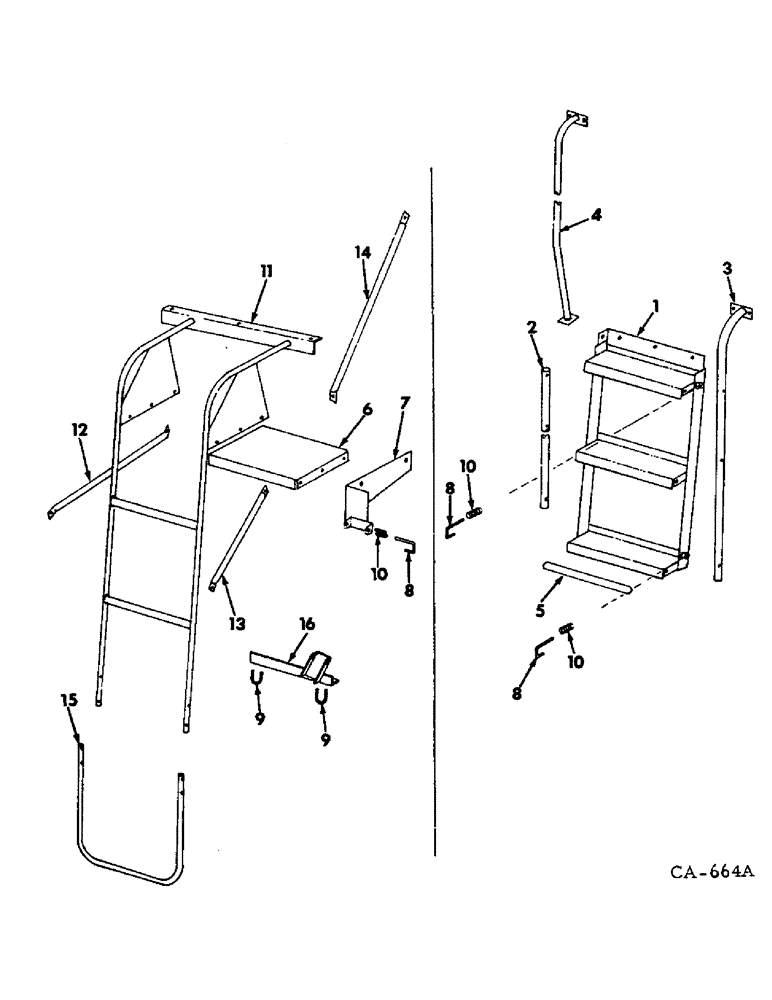

Запчасти Case IH 815 (M-12) - SEAT, OPERATORS PLATFORM AND MISC., SERVICE LADDER (10) - OPERATORS PLATFORM

1

161918C91

LADDER ASSY, service, for V-8 gasoline or diesel engine

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

5шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 3/4 C-Z slt truss-hd

5шт.

2

161923C1

PIPE, service ladder rail, for V-8 gasoline or diesel engine

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 C-Z hex-hd mach

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

3

161924C91

RAIL ASSY, service ladder lower, for V-8 gasoline or diesel engine

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 C-Z hex-hd mach

3шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

4

161920C91

PIPE ASSY, service ladder hand rail upper

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

5

167409C1

TAPE, service ladder step safety

1шт.

6

168983C1

STEP, ladder upper service, for LP gas engine

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 3/4 C-Z slt truss-hd

3шт.

7

168641C1

BRACKET ASSY, door latch, for lp gas engine

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt truss-hd

2шт.

8

173242C1

HANDLE

PIN, separator side shield locking

2шт.

121223

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

2шт.

12784R1

WASHER, 17/64 x 1/2 x 16 ga C-Z

2шт.

9

634824R1

U-BOLT, separator right rear shield clip, for LP gas engine

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

4шт.

10

606245R1

SPRING

locking pin

2шт.

11

168977C1

LADDER ASSY, service, for lp gas engine

1шт.

12

168980C1

PIPE, service ladder support lower rear, for LP gas engine

1шт.

13

168981C1

PIPE, service ladder support lower front, for LP gas engine

1шт.

14

169172C1

SUPPORT, service ladder upper, for LP gas engine

1шт.

18767R1

BOLT,Hex, 5/16"-18 x 2", G2

5/16 x 2-1/4 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

15

169173C1

STEP, service ladder lower, for LP gas engine w/23.1-34 main wheel tires

1шт.

18768R1

BOLT,Hex, 5/16"-18 x 2 1/4", G2

5/16 x 2 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

16

169214C1

CLIP ASSY, separator right rear shield, for LP gas engine

1шт.

2754254R2

PRODUCT GRAPHIC, corporate trademark, IH

1шт.

2754371R1

DECAL

PRODUCT GRAPHIC, International Harvester of Canada, Ltd.

1шт.

2753190R1

DECAL

PRODUCT GRAPHIC, made in United States of America

1шт.

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

SMV emblem

1шт.

169164C91

KIT

1шт.

KIT, product graphic, consists of safety & operating ins., rice special, windrow special, grain and maize special, corn and soybean special, (2) wheel bolt nut torque, clean engine instructions warning, diesel, diesel, turbo, LP gas, (2) hydrostatic, made in United States of America, International Harverster Harvester of Canada LTD., park brake and unloader drive, concave clearance, reel speed, header drive, ladder lift, (2) separator drive, propulsion drive, fan speed, warning, coasting down hill etc., mon

1шт.

547494R91

DECAL

KIT ASSY, product graphic IH trade, consists of (6) IH trade mark

1шт.

547495R91

DECAL

KIT ASSY, product graphic trade mark, consists of (8) International

1шт.

547497R91

PACKAGE

KIT ASSY, product graphic model designation, consists of (8) model designation

1шт.

2750173R1

ADHESIVE

PRODUCT GRAPHIC, rice special

1шт.
