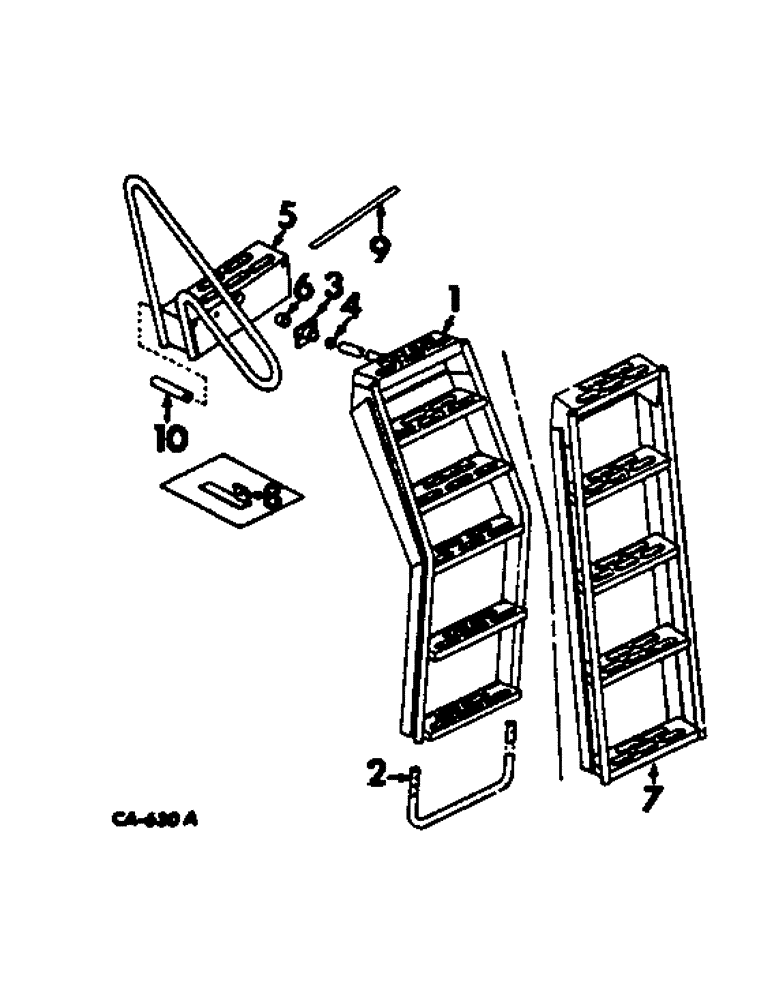

Запчасти Case IH 815 (M-11) - SEAT, OPERATORS PLATFORM AND MISC., PLATFORM LADDER (10) - OPERATORS PLATFORM

1

169001C1

LADDER ASSY, operator platform, hinged ladder, standard w/28.1-26 main wheels

1шт.

2

166024C1

STEP, operator platform ladder ext., standard for 23.1-34 main wheels

1шт.

18766R1

BOLT,Hex, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 C-Z hex-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

164544C91

HUB ASSY, operators platform ladder pivot, hinged ladder, includes ref no. 4

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

587247R1

BUSHING, LARGE

BUSHING, operators pltf ladder pivot

1шт.

5

168478C91

EXTENSION ASSY, operators deck, includes ref no. 6, hinged ladder w/hydraulic lift

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

555026R1

BOLT,Hex, 5/8" - 11 x 3", Full Thd

5/8 x 3 znp hex-hd mach

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

6

587247R1

BUSHING, LARGE

BUSHING, operators ladder pivot, hinged ladder w/hydraulic lift

1шт.

7

169002C1

LADDER ASSY, operators platform, fixed ladder, not for 28.1-26 main wheels or main wheel ext.

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 C-Z hex-hd mach

2шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 C-Z hex-hd

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

8

168475C91

STOP ASSY, operators deck ladder, for use w/hydraulic ladder lift

1шт.

555026R1

BOLT,Hex, 5/8" - 11 x 3", Full Thd

5/8 x 3 znp hex-hd mach

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex

2шт.

9

155615C1

TAPE, operators deck non-skid, not operators cab

1шт.

10

454599R1

SPACER, oper. deck ladder, optional

1шт.

17916R1

BOLT, 7/16 x 6-3/4 C-Z hex-hd mach

1шт.

271501

SOCKET

NUT, 7/16 C-Z hex

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.
