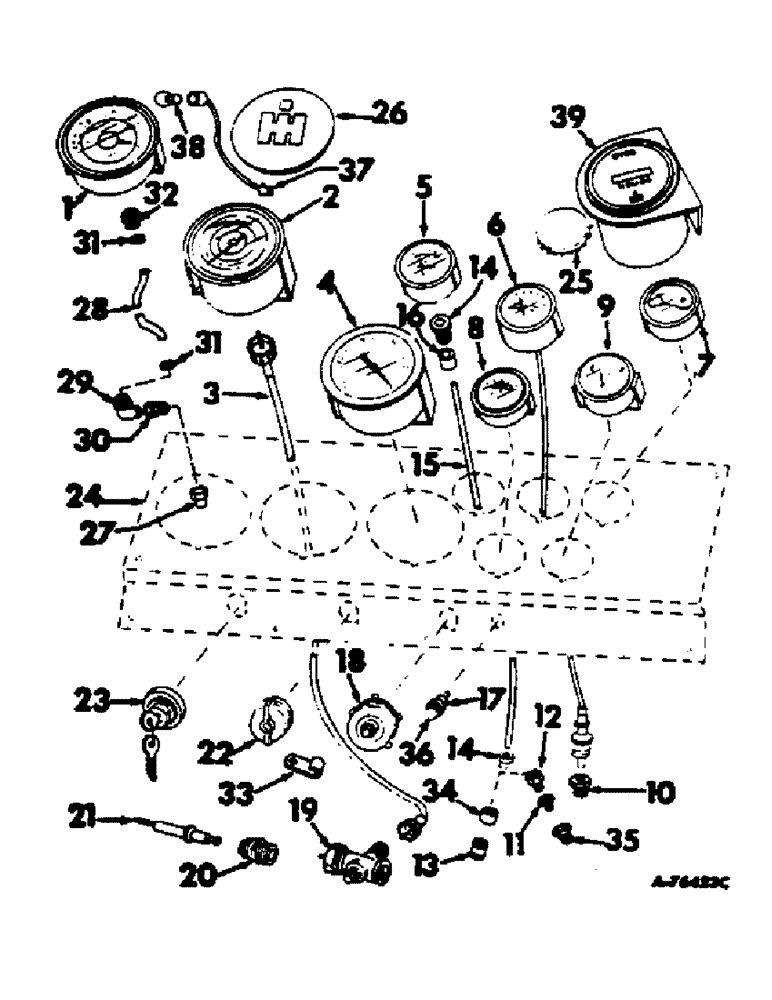

Запчасти Case IH 815 (M-10) - SEAT, OPERATORS PLATFORM AND MISC, GAUGES AND SWITCHES (10) - OPERATORS PLATFORM

1

165045C91

GAUGE ASSY, vacuum, serial no. 1249 and below

1шт.

1

168936C1

GAUGE ASSY, vacuum, serial no. 1250 and above

1шт.

2

160700C91

SPEEDOMETER

ASSY

1шт.

3

156042C91

SHAFT ASSY.

SHAFT ASSY, speedometer flexible

1шт.

4

159884C91

INDICATOR

TACHOMETER ASSY

1шт.

5

163835C91

GAUGE

ASSY, oil pressure

1шт.

6

163834C91

GAUGE

ASSY, water temperature, V-8 engines

1шт.

6

174467C1

GAUGE

ASSY, water temperature, diesel engine

1шт.

7

167020C1

GAUGE ASSY, air cleaner restriction indicator, serial no. 3783 and below

1шт.

8

167021C1

GAUGE ASSY.

GAUGE ASSY, ammeter

1шт.

9

163836C91

GAUGE

ASSY, fuel, for V-8 gasoline & diesel engines

1шт.

10

144216

BUSHING,1/2" NPT Male x 3/8" NPT Fem

REDUCER, 1/2 x 3/8 steel znp, diesel engine

1шт.

11

222-500

TUBE NUT,5/16" - 24 NPT

NUT, 5/16-24 flared tube, diesel engine

1шт.

12

59939D

HYD CONNECTOR,1/8" NPT x 5/16"-24

CONNECTOR, 1/8 NPTF male hi-duty, oil pressure rear to engine block, diesel engine

1шт.

13

192043

NIPPLE, 1/8 x 2 C-Z pipe, V-8 gasoline and LP gas engines

1шт.

14

222-500

TUBE NUT,5/16" - 24 NPT

NUT, 5/16-24 flared tube, 1 used diesel, 2 used V-8 engines

1шт.

15

TUBE, oil pressure gauge, use 104 in. for V-8 engines & 130 in. for diesel engines of 1/8 in. copper tubing from 50 ft roll marked 995059R1

1шт.

16

19715R1

HYD CONNECTOR,Fem, 5/16"-24

CONNECTOR, 1/8 NPTF female hi-duty, oil pressure line to oil pressure gauge

1шт.

17

376852R91

HOUSING

ASSY, fuse, serial no. 1972 and below

1шт.

18

166380C92

SWITCH

ASSY, light

1шт.

19

156232C91

DRIVE

JOINT ASSY, speedometer flexible shaft angle, 30/25 & 25/30 gear transmissions

1шт.

19

160701C1

DRIVE

JOINT ASSY, speedometer flexible shaft angle, 27/28 gear transmission

1шт.

20

128584HX

SLEEVE

AND SEAL ASSY, speedometer

1шт.

21

673050R91

SHAFT

TIP AND WASHER ASSY, speedometer

1шт.

22

394771R91

IGNITION SWITCH

SWITCH ASSY, flasher light, serial no. 3783 and below

1шт.

23

164895C91

SWITCH

ASSY, ignition

1шт.

24

COVER, instrument front, refer to operators control console for listing

1шт.

25

432580

PLUG, fuel gauge, LP gas engine 2 3/32"

1шт.

26

167008C1

PLUG, instrument panel

1шт.

27

389908R91

ADAPTER

ADAPTOR ASSY, switch

1шт.

28

HOSE, vacuum gauge, use 13 ft, 2 in. of 628461R1 nylon hose w/1/8 OD

1шт.

29

289970C91

FITTING

ELBOW, 1/8 pipe to 1/8 tube male

1шт.

30

112877

ADAPTER,1/4" NPT Male x 1/8" NPT Fem

REDUCER, 1/8 x 1/4 brass pipe connector, for use w/V-8 engine w/o closed crank case ventilation

1шт.

30

144037

SUPPORT

ADAPTER, 1/2-18 zid reducing pipe, for use w/V-345 engine w/closed crank case ventilation

1шт.

31

165207C1

NUT

1/8 tube

2шт.

32

165205C1

CONNECTOR, 1/8 pipe to 1/8 tube female

1шт.

33

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, speedometer

2шт.

33

263717R91

CLIP

speedometer shaft

1шт.

34

19715R1

HYD CONNECTOR,Fem, 5/16"-24

CONNECTOR, 1/8 NPTF female hi-duty, oil pressure rear to engine block V-8 engine

1шт.

35

87016922

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

1/4 x 1/8 steel znd, diesel engine, in engine block for oil pressure line

1шт.

36

223-31

FUSE,10 Amp, Type 3AG

30 amp; cartridge type 3AG 1-1/4 in. long, serial no. 1972 and below

1шт.

37

372546R91

CABLE

SOCKET ASSY, vacuum gauge light

1шт.

38

A14553

BULB

vacuum light

1шт.

39

407206R1

KIT

ASSY, hour meter, parts accessories

1шт.
