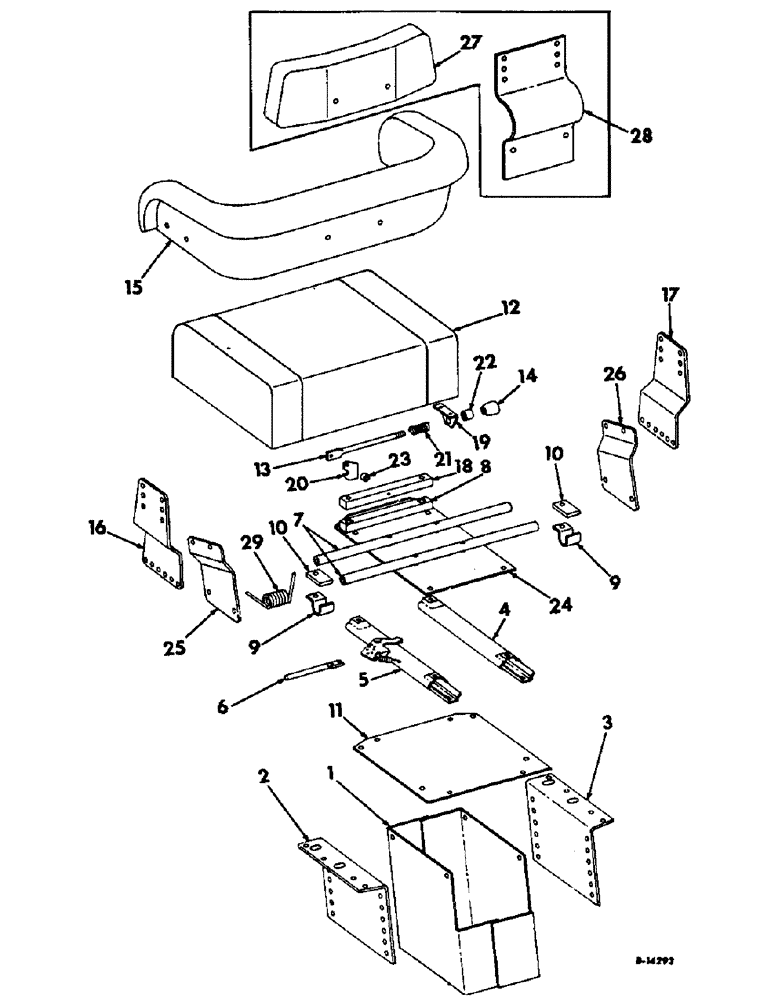

Запчасти Case IH 815 (M-04) - SEAT, OPERATORS PLATFORM AND MISC., OPERATORS SEAT, SERIAL NO. 2891 AND BELOW (10) - OPERATORS PLATFORM

1

666830R92

SUPPORT ASSY, seat

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

2

939266R1

BRACKET, seat adjustment LH

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

939267R1

BRACKET, seat adjustment RH

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

631731R91

TRACK CHAIN

SLIDE ASSY, lower cushion

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

5

631732R91

TRACK CHAIN

SLIDE W/LATCH, seat lower cushion

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

631733R1

HANDLE, seat adjustment

1шт.

32-1212

COTTER PIN,3/16" x 3/4"

PIN, SPLIT (COTTER), 3/16" x 3/4"

2шт.

7

632706R1

SHAFT, seat support cross

2шт.

18765R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2

5/16 x 1-1/2 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 C-Z hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

8

632718R1

STOP, seat lower

1шт.

120376

NUT,5/16"-18, G5

2шт.

133841

SCREW, 5/16 x 1-1/4 C-Z slt-f-hd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

632703R1

CLAMP

PIVOT, seat

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

632704R1

SPACER, seat pivot

2шт.

11

939223R1

BASE, seat lower cushion

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

12

167891C1

CUSHION ASSY, seat lower

1шт.

13

939224R1

ROD, seat latch control

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

619855R1

WASHER

13/32 x 3/4 x 16 ga

1шт.

14

611976R1

KNOB, seat latch control rod

1шт.

15

167892C1

CUSHION

ASSY, seat lower back

1шт.

16

387172R1

SUPPORT

seat lower back cushion LH

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

160771

SCREW, 3/8 x 5/8 C-Z cr-rec-pan-hd

2шт.

160776

SCREW,Cross Pan Hd, 3/8" - 16 x 3/4"

3/8 x 3/4 C-Z cr-rec-pan-hd

2шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

17

387173R1

SUPPORT

seat lower back cushion RH

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

160771

SCREW, 3/8 x 5/8 C-Z cr-rec-pan-hd mach

2шт.

160776

SCREW,Cross Pan Hd, 3/8" - 16 x 3/4"

3/8 x 3/4 C-Z cr-rec-pan-hd mach

2шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

18

939226R1

STOP, seat upper

1шт.

133841

SCREW, 5/16 x 1-1/4 C-Z slt-fl-hd mach

2шт.

19

939227R1

ANGLE, seat control rod

1шт.

263-5658

SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"

SCREW, 10 x 1/2 C-Z slt-pan-hd tap

2шт.

20

939230R91

LATCH ASSY, seat control

1шт.

18659R1

BOLT,Hex, 1/4" - 20 x 2", Gr 2

1/4 x 2 C-Z hex-hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

495-21031

WASHER,1/4"

5/16 x 3/4 x 16 ga C-Z

4шт.

21

140DS

SPRING, seat control rod

1шт.

22

86224H

SPACER,1/4" Pipe x 3/8"

Seat release control stop 1/4" Pipe x 3/8"

1шт.

23

568395R1

SPACER,5/8" Tube x 5/8"

seat latch stop

1шт.

24

939233R91

BASE ASSY, seat upper

1шт.

25

939228R91

SUPPORT ASSY, seat lower back cushion LH

1шт.

26

939248R1

SUPPORT, seat lower back cushion RH

1шт.

27

387177R91

CUSHION

ASSY, seat upper back, special

1шт.

28

387178R1

SUPPORT

seat upper back cushion, special

1шт.

160688

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

2шт.

29

627221R1

SPRING, seat

1шт.
