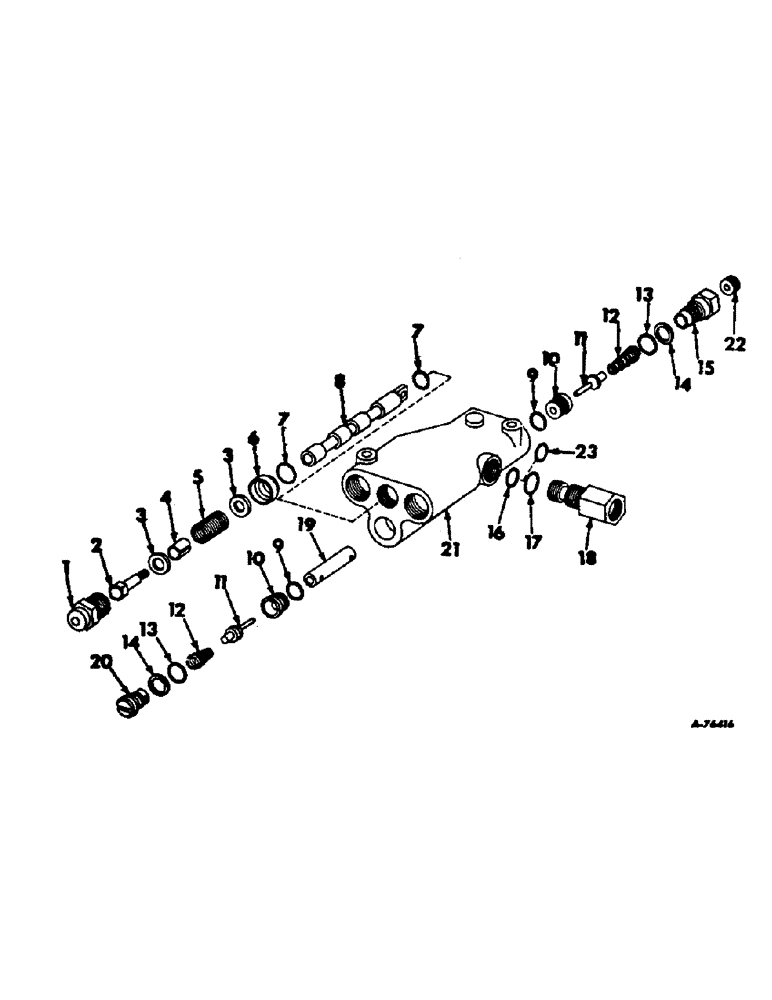

Запчасти Case IH 815 (F-23) - HYDRAULICS SYSTEM, LADDER LIFT CONTROL VALVE (07) - HYDRAULIC SYSTEM

166995C91

VALVE ASSY, ladder lift control

1шт.

1

674493R91

CAP

ASSY

1шт.

2

674491R1

SCREW

spool

1шт.

3

674495R1

WASHER, serial no. 3193 and below

2шт.

3

673628R1

WASHER

serial no. 3194 and above

2шт.

4

674492R1

SPACER

spool

1шт.

5

674490R1

SPRING

spool center

1шт.

6

674775R1

BUSHING

1шт.

7

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

3/32 x 1/2 ID

2шт.

8

SPOOL, not serviced separately, order 166995C91 valve assy

1шт.

9

370920R1

O-RING,1/2" ID

1/2 x 5/8 x 1/16

2шт.

10

674505R91

SEAT

ASSY, includes ref no. 9

2шт.

11

588351R91

VALVE

POPPET ASSY

2шт.

12

674509R1

SPRING

lockout

2шт.

13

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

3шт.

14

587585R1

WASHER

back-up

3шт.

15

674507R91

PLUG

ASSY, port adapter, includes ref nos. 13 and 14

1шт.

16

598644R1

WASHER

back-up

1шт.

17

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

18

673907R91

PLUG ASSY, serial no. 3193 and below, includes ref nos. 16, 17 and 23

1шт.

18

598386R91

PLUG

ASSY, serial no. 3194 and above, includes ref nos. 16, 17 and 23

1шт.

19

588352R1

PLUNGER

lockout

1шт.

20

674506R91

PLUG

ASSY, set retainer, includes ref nos. 13 and 14

1шт.

21

BODY, not serviced separately, order 166995C91 valve assy

1шт.

22

168187C1

PLATE, orifice

1шт.

23

370920R1

O-RING,1/2" ID

1/2 x 5/8 x 1/16

1шт.

168186C91

KIT, seal repair, consists of (2) poppet assys 588351R91, (2) o-rings 252739R1, (3) o-rings 350429R1, (3) washers, back-up 587585R1, (3) o-rings 370920R1

1шт.
