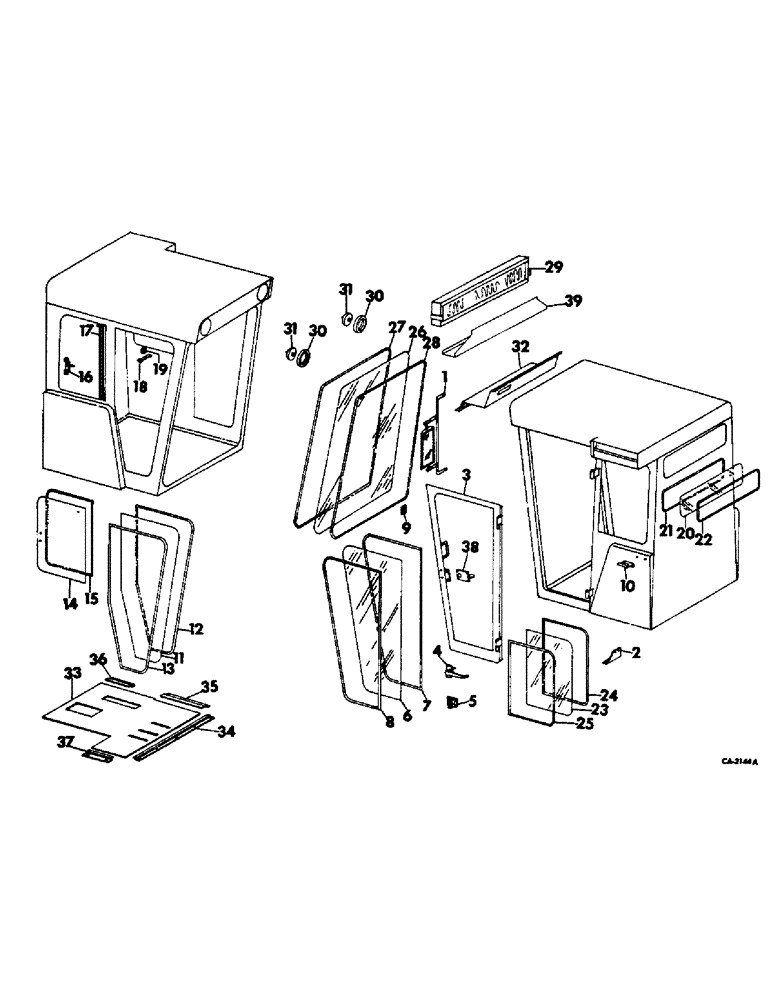

Запчасти Case IH 815 (N-06) - PARTS, ACCESSORIES AND ATTACHMENTS, OPERATORS CAB, CAB WITH LEFT SIDE AIR INTAKE Accessories & Attachments

1

167477C91

MIRROR ASSY, rear view, refer to rear view mirror unit for listing

1шт.

2

169186C1

BRACKET, separator shield support

1шт.

587640R1

NUT, 1/4-20 speed

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z whiz lock

1шт.

3

173918C91

DOOR ASSY, cab, includes ref nos. 4 thru 8 & 38

1шт.

4

175566C1

HANDLE

ASSY, door

1шт.

5

173897C1

LATCH

ASSY, door holder

1шт.

6

175567C1

GLASS, door

1шт.

7

886263C1

SEAL, door glass noulding

1шт.

8

886262C1

STRIP, door glass filler

1шт.

9

937635R1

STRIP

STRIKER, door

1шт.

10

173911C1

LATCH, door

1шт.

11

175572C1

GLASS, RH side front

1шт.

12

169148C1

SEAL, RH side front glass moulding

1шт.

13

169153C1

STRIP, RH side front glass filler

1шт.

14

175573C1

GLASS, RH rear side vent window

1шт.

15

173900C1

SEAL, RH rear side glass moulding

1шт.

16

170404C1

HANDLE

ASSY, vent window

1шт.

17

173912C1

HINGE ASSY, vent window

1шт.

18

174574C1

LATCH, vent window holding

1шт.

19

168913C1

SPRING, vent window latch

1шт.

20

168814C1

GLASS, rear

1шт.

21

169146C1

SEAL, rear glass moulding

1шт.

22

169151C1

STRIP, rear glass filler

1шт.

23

175571C1

GLASS, LH rear side

1шт.

24

169145C1

SEAL, LH rear side glass moulding

1шт.

25

169150C1

STRIP, LH rear side glass filler

1шт.

26

168809C1

GLASS, windshield

1шт.

27

169149C1

SEAL, windshield glass moulding

1шт.

28

169154C1

STRIP, windshield glass filler

1шт.

29

175568C1

FILLER

FILTER ASSY, air

1шт.

30

175570C1

SEAL RETAINER

RETAINER, headlight

2шт.

31

373662R91

LAMP

seal beam

2шт.

32

PRESSURIZER, cab, refer to pressurizer unit for listing

1шт.

33

165067C1

MAT

operators cab floor, for chain drive feeder

1шт.

33

169205C1

MAT, operators cab floor, for belt drive feeder

1шт.

34

174959C1

RETAINER, floor mat front

1шт.

35

174960C1

RETAINER, floor mat door

1шт.

36

174961C1

RETAINER, floor mat LH rear

1шт.

37

174962C1

RETAINER, floor mat RH

1шт.

38

169156C1

LATCH

LOCK ASSY, door

1шт.

39

175730R1

RETAINER, air filter

1шт.
