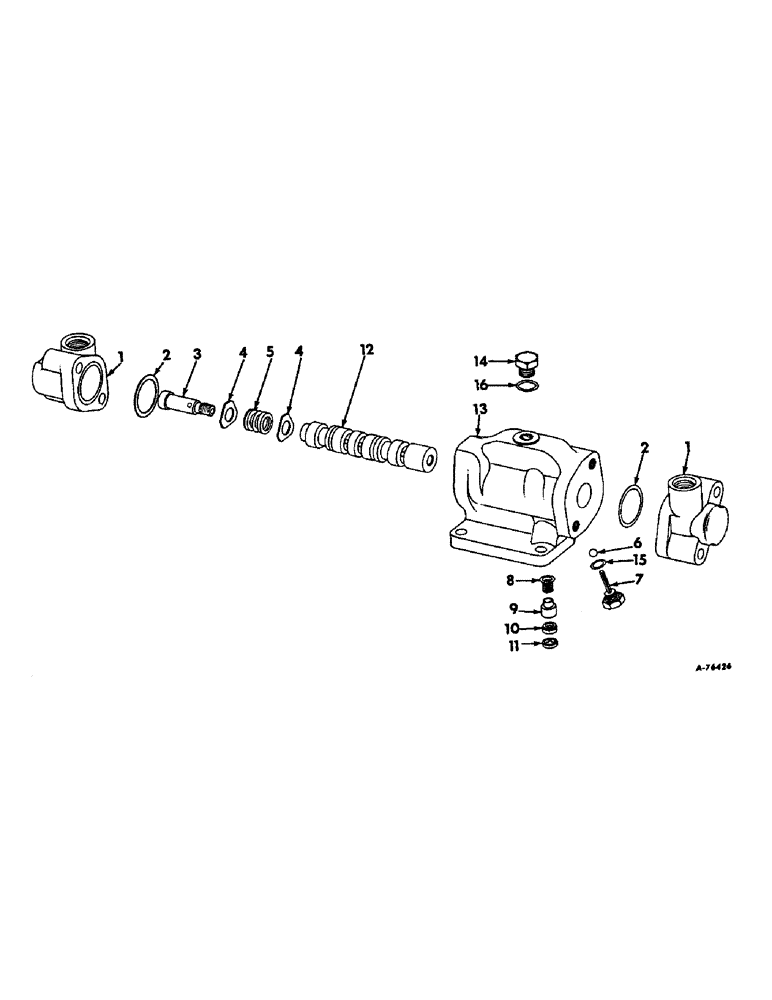

Запчасти Case IH 815 (F-22) - HYDRAULICS SYSTEM, STEERING VALVE (07) - HYDRAULIC SYSTEM

527492R91

LOCK VALVE

VALVE ASSY, steering

1шт.

18762R1

BOLT, 3/8 x 2-1/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

SCREW, 3/8 x 1 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

1

379894R1

CAP

end

2шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

2

387088R1

SEALING RING,1.237" ID x 0.103" Width

SEAL, end cap

2шт.

3

379896R1

SCREW,3/8" - 24, Drilled, W/ Nylon Pellet

spring centering

1шт.

4

379897R1

WASHER

centering screw

2шт.

5

395754R1

SPRING

valve centering

1шт.

6

16008R1

BALL,1/4" Dia, Steel

1/4 diameter

1шт.

7

379901R91

PLUG

ASSY

1шт.

8

382125R1

SPRING

pressure check

1шт.

9

382126R1

NO LONGER SERVICED

VALVE, check, for 396726R91 valve assy

1шт.

9

527494R1

VALVE

check, for 527492R91 valve assy

1шт.

10

379810R1

SEAL

ball seat, for 396726R91 valve assy

1шт.

10

527495R1

DISC

SEAT, valve check, for 527492R91 valve assy

1шт.

11

382127R1

WASHER

SPACER, check valve, for 396726R91 valve assy

1шт.

11

SPACER, check valve, not serviced separately, order package 527493R91

1шт.

12

SPOOL, not serviced separately, order 527492R91 valve assy

1шт.

13

BODY, not serviced separately, order 527492R91 valve assy

1шт.

14

9410357

PLUG

o-ring Boss

1шт.

527493R91

PACKAGE

power steering pilot valve, composed of (1) o-ring, Boss plug 369384R1, (1) o-ring, boss plug 379795R1 and (2) seals, valve end 387088R1

1шт.

15

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, Boss plug

1шт.

16

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, Boss plug

1шт.
