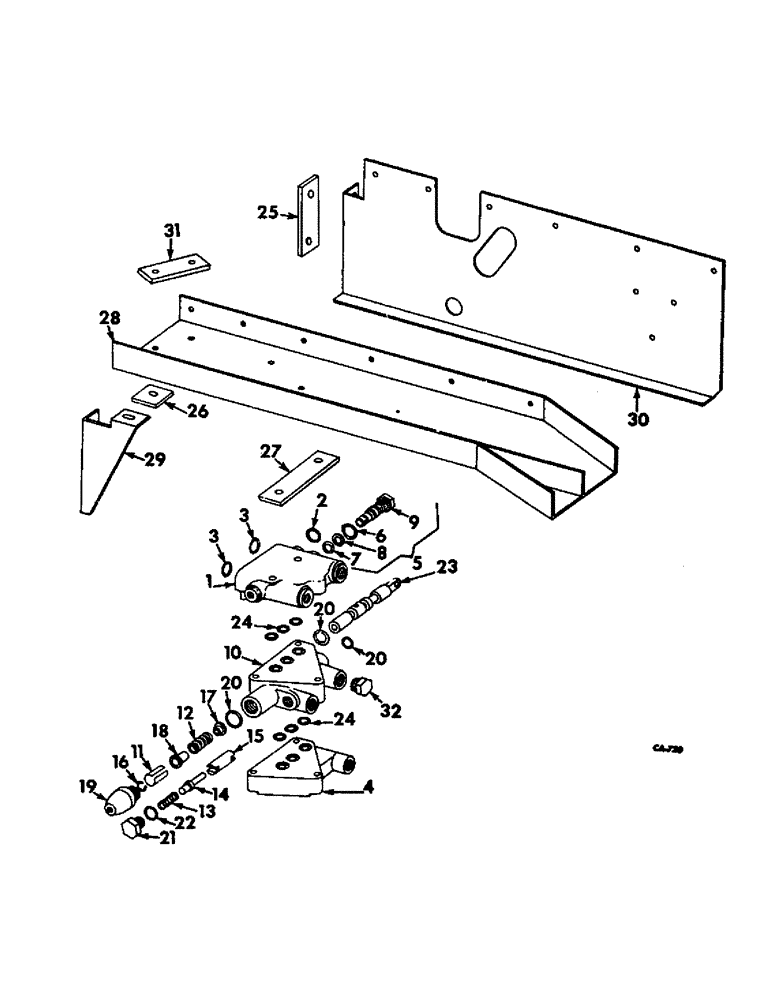

Запчасти Case IH 815 (F-20) - HYD. SYS., PLATFORM LIFT VALVE & SUPPORTS, FOR COMBINES W/O PLATFORM AUTO., CONTROL S/N 1973 & ABOVE (07) - HYDRAULIC SYSTEM

170299C91

HYDRAULIC VALVE

VALVE ASSY, platform lift, includes ref nos. 1 thru 24

1шт.

426444

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 5

SCREW, 5/16 x 3-1/4 hex-hd cap

3шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

SCREW, 3/8 x 1 C-Z hex-hd cap

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

1

166881C91

PLATE ASSY, port LH, includes ref nos. 2 and 3

1шт.

2

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32

1шт.

3

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16 x 7/8 x 3/32

2шт.

4

166882C1

VALVE

PLATE, port RH

1шт.

5

167447C91

VALVE

ASSY, 1750 PSI relief, includes ref nos. 6 thru 9

1шт.

6

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32

1шт.

7

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

8

587585R1

WASHER

back-up

1шт.

9

BODY, relief valve, not serviced separately, order valve assy 167447C91

1шт.

10

170300C91

VALVE, CHECK

VALVE ASSY, 3 way, includes ref nos. 11 thru 23

1шт.

11

588345R1

SLEEVE

spool

1шт.

12

588353R1

SPRING

spool centering

1шт.

13

159382C1

SPRING

lockout

1шт.

14

159380C91

VALVE

POPPET ASSY

1шт.

15

173859C1

PLUNGER

lockout

1шт.

16

85633R1

RING

snap

1шт.

17

11002VA

WASHER

spool spring

1шт.

18

557268R1

WASHER

spool spring

1шт.

19

CAP ASSY, not serviced separately, order valve assy 170300C91

1шт.

20

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32

3шт.

21

159801C1

PLUG

1шт.

22

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

23

SPOOL, not serviced separately, order valve assy 170300C91

1шт.

24

574069R1

O-RING,0.750" ID x .062"

1/16 x 3/4 ID

6шт.

159383C91

PACKAGE

KIT, repair, for valve 170300C91, consists of the following (1) o-ring 252707R1, (1) o-ring 252739R1, (1) o-ring 310925R1, (1) o-ring 321956R1, (1) poppet 159380C91

1шт.

166883C91

PACKAGE

KIT, repair, for valve 170299C91, consists of the following (1) kit 159383C91, (1) o-ring 352221R1, (2) o-ring 350667R1, (3) o-ring 574069R1, (1) o-ring 350429R1, (1) o-ring 252707R1, (1) washer 673644R1

1шт.

25

164639C1

PAD, hyd valve support left front

1шт.

26

164640C1

PAD, hyd valve support left rear

1шт.

27

165767C1

PAD, hyd valve support right

1шт.

28

167292C92

SUPPORT ASSY, hyd valve

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 C-Z hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

22264R1

WASHER

13/32 x 1 x 7 ga C-Z

2шт.

29

164646C1

BRACKET, hyd valve support

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

475954R1

NUT

3/8 C-Z flange lock

2шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 C-Z truss-hd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

30

164648C1

SWITCH

SUPPORT, hyd valve front outer

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1/4 C-Z sq-nk crg

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

6шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

22264R1

WASHER

13/32 x 1 x 7 ga C-Z

2шт.

31

165767C1

PAD, platform lift valve rubber

1шт.

32

588342R1

PLUG

1шт.
