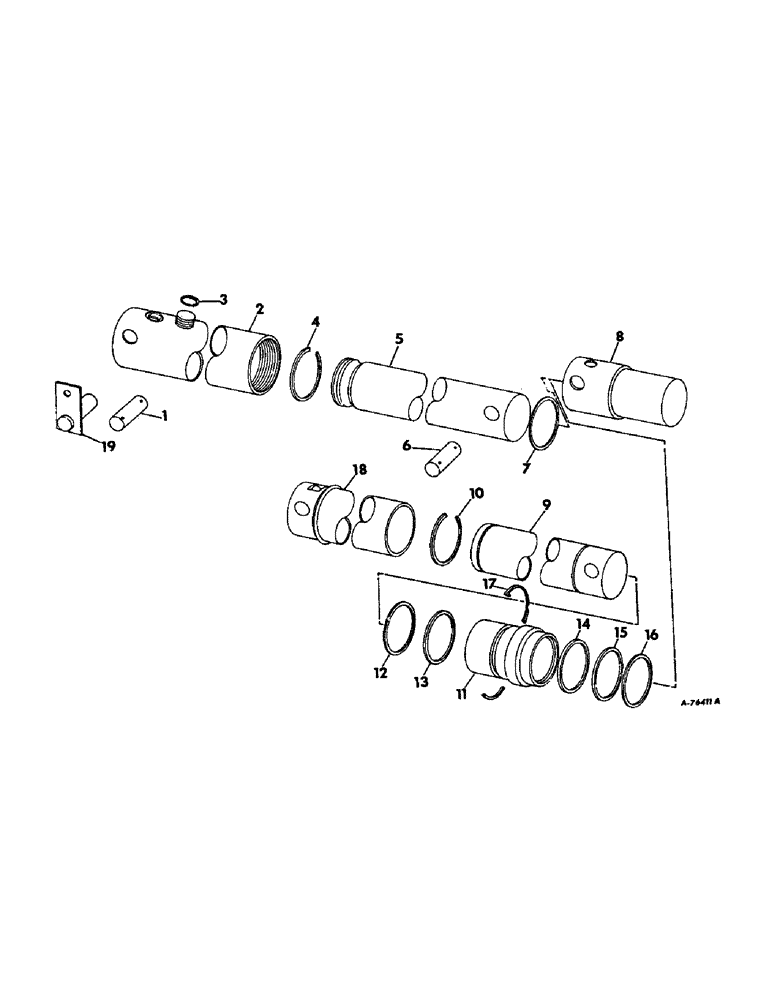

Запчасти Case IH 815 (F-14) - HYDRAULICS SYSTEM, PLATFORM LIFT CYLINDER AND EXTENSIONS (07) - HYDRAULIC SYSTEM

160417C91

CYLINDER

ASSY, platform lift, optional for 545705R91 cyl, includes ref nos. 9 thru 18 and kit assy 545715R91

1шт.

1

164533C1

PIN

platform lift cylinder rear

2шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

4шт.

2

168041C1

TUBE ASSY.

BARREL ASSY

1шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/32 x 41/64 ID

1шт.

4

631621R1

RING

.118 x 1.976 ID

1шт.

5

168042C1

ROD, piston

1шт.

6

569335R1

PIN, platform lift cylinder front, 2 standard, 4 used w/cyl extension

1шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

7

21597R1

O-RING,0.21" Thk x 2.225" ID, -331, Cl 5, 75 Duro

3/16 x 2-1/4 ID

1шт.

8

162173C91

EXTENSION ASSY, platform lift, windrow special

1шт.

167884C91

SEAL KIT

ASSY, cylinder repair

1шт.

545705R91

NO LONGER SERVICED

CYLINDER ASSY, platform lift, optional for 160417C91 cyl, includes ref nos. 9 thru 18 and kit assy 545715R91

1шт.

9

545709R1

ROD

piston

1шт.

10

545710R1

STOP

piston rod

1шт.

11

545711R1

HEAD

front

1шт.

12

327110R1

O-RING,-144, 90 Duro, 2.487" ID x .103" Thk

2-1/2 x 2-11/16 x 3/32

1шт.

13

545712R1

WASHER

back-up static

1шт.

14

381082R1

O-RING,2.225" ID x 0.21" Width

2-1/4 x 2-5/8 x 3/16

1шт.

15

381083R2

BACK-UP RING

WASHER, o-ring back-up

1шт.

16

545713R1

WIPER SEAL

WIPER, piston rod

1шт.

17

545714R1

RETAINING WIRE

retaining

1шт.

18

545706R1

SPARE PART

BODY ASSY, hyd cylinder

1шт.

545715R1

KIT

ASSY, service

1шт.

19

(Not used in this application)

1шт.
