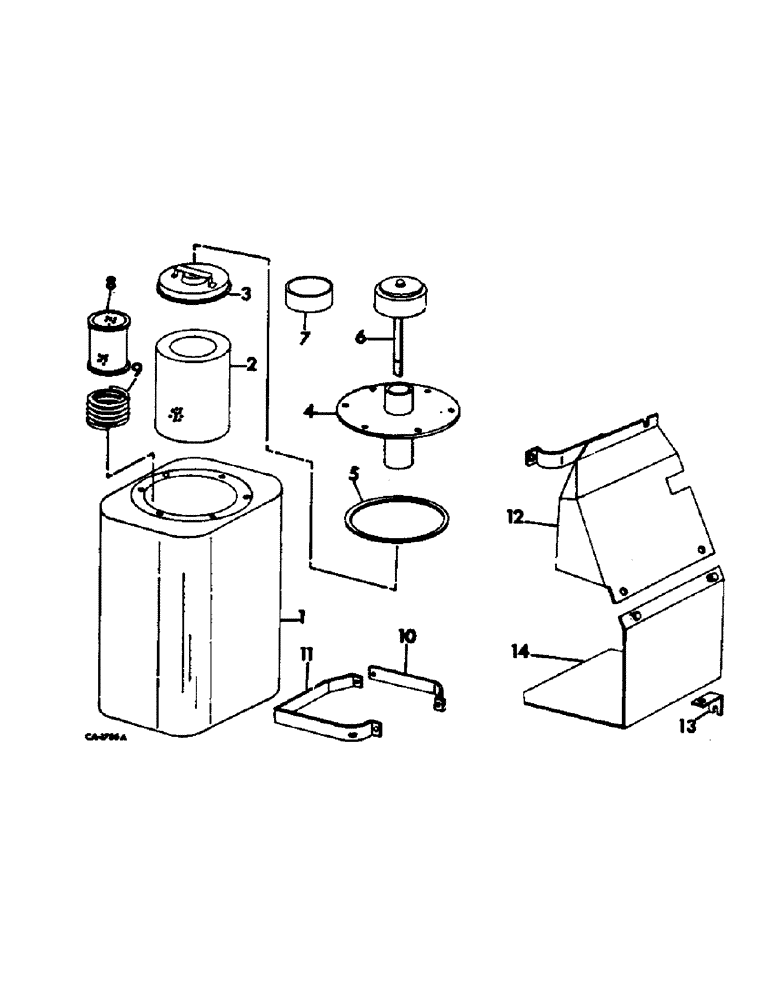

Запчасти Case IH 815 (F-13) - HYDRAULICS SYSTEM, HYDRAULIC RESERVOIR, 171956C91, SERIAL NO. 3194 AND ABOVE (07) - HYDRAULIC SYSTEM

171956C91

RESERVOIR ASSY, hydraulic oil, includes ref nos. 1 thru 9

1шт.

1

BODY, reservoir, not serviced separately, order reservoir assy 171956C91

1шт.

2

386120R91

FILTER CARTRIDGE

ELEMENT ASSY, oil reservoir

1шт.

3

173131C1

COVER ASSY

LID ASSY, filter

1шт.

4

173132C1

COVER ASSY, reservoir

1шт.

5

21295R1

O-RING,5.725" ID x 6.275" OD x 0.275"

5-3/4 x 6-1/4 x 1/4

1шт.

6

167461C91

CAP

W/DIPSTICK & FILTER, reservoir, includes ref no. 7

1шт.

7

167852C1

ELEMENT, reservoir cap filter

1шт.

8

173929C1

STRAINER ELEMENT

STRAINER, hydraulic oil

1шт.

9

173930C1

SPRING

hydraulic oil strainer

1шт.

10

160995C1

SUPPORT, hydraulic oil reservoir

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

1шт.

18767R1

BOLT,Hex, 5/16"-18 x 2", G2

5/16 x 2 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

2шт.

124824

NUT,Hex, 5/16" - 18

5/16 C-Z hex-jam

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

160996C1

SUPPORT, hydraulic oil reservoir

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

175821C1

SHIELD ASSY, reservoir upper, V-8 engines, serial no. 4689 and above

1шт.

13

175825C1

ANGLE, reservoir shield support, V-8 engines, serial no. 4689 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

1шт.

14

175819C1

SHIELD ASSY, reservoir lower, V-8 engines, serial no. 4689 and above

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

2шт.
