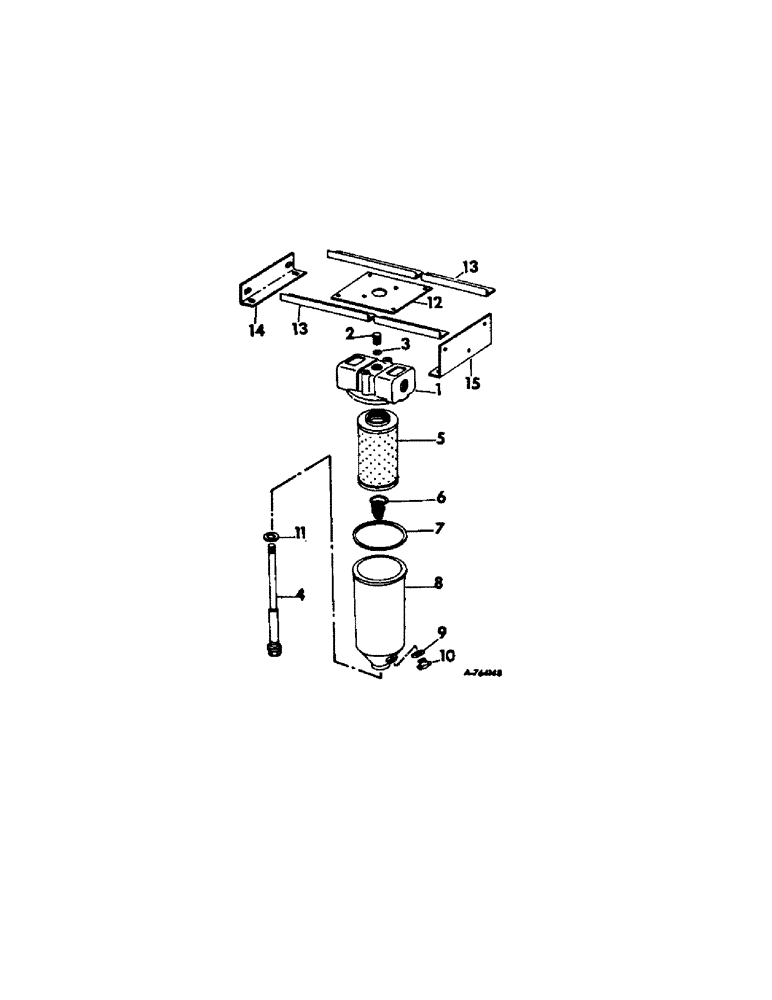

Запчасти Case IH 815 (F-12) - HYDRAULICS SYSTEM, HYDRAULIC OIL FILTER AND SUPPORTS, FOR USE WITH RESERVOIR 172003C91 (07) - HYDRAULIC SYSTEM

156571C91

FILTER CARTRIDGE

FILTER ASSY, oil, includes ref nos. 1 thru 11

1шт.

1

Not serviced separately

1шт.

2

9410359

PLUG

1шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

471632R1

BOLT, holdown

1шт.

5

381256R91

ELEMENT

ASSY

1шт.

6

471633R1

SPRING

1шт.

7

381627R1

RUBBER WASHER

GASKET

1шт.

8

471634R1

BODY AND FITTING

1шт.

9

381618R1

COPPER WASHER

GASKET

1шт.

10

445078

PLUG

1шт.

11

381629R1

GASKET

1шт.

12

160682C1

SUPPORT, hydraulic oil filter

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

167279C1

ANGLE, hydraulic oil filter support, diesel only

2шт.

13

170578C1

ANGLE, oil filter support, V-8 engines

2шт.

14

166508C1

ANGLE, hydraulic oil filter support

1шт.

15

170577C1

ANGLE, oil filter support, V-8 engines

1шт.
