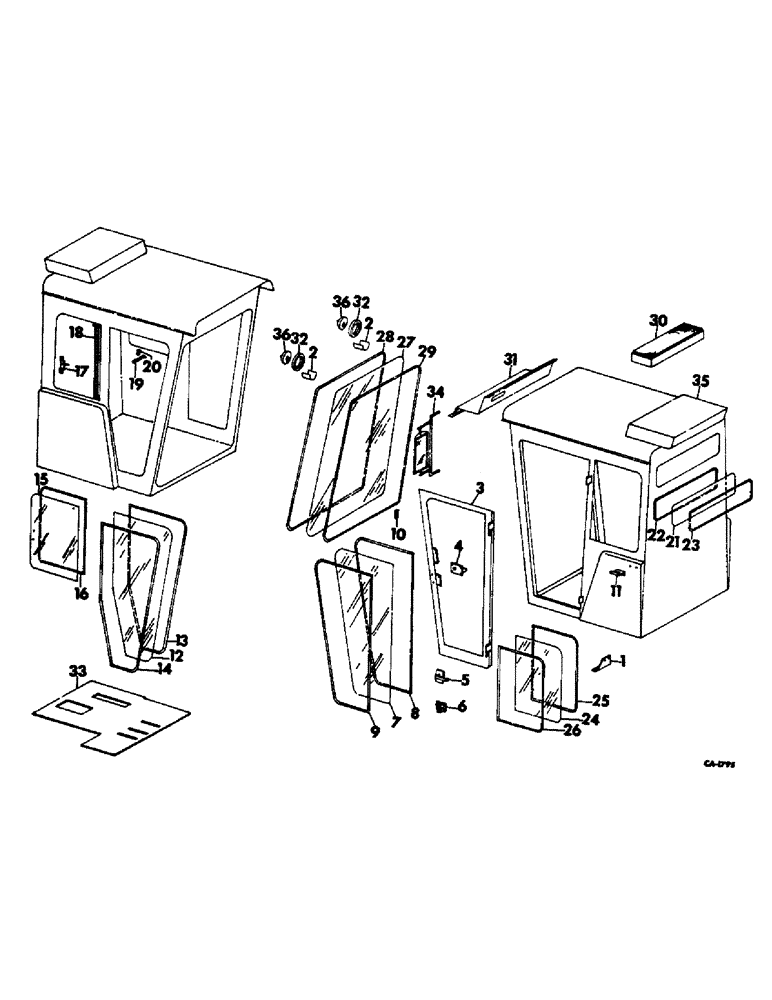

Запчасти Case IH 815 (N-04) - PARTS, ACCESSORIES AND ATTACHMENTS, OPERATORS CAB, SERIAL NO 3452 & ABOVE FOR CAB W/REAR AIR INTAKE Accessories & Attachments
№
Артикул
Название
Примечание
Количество
1
169186C1
BRACKET, separator shield support
1шт.
587640R1
NUT, 1/4 speed
1шт.
937875R1
SCREW,Serr, 1/4" - 20
1/4 x 3/4 C-Z whiz lock
1шт.
2
168925C1
SHIELD
headlight
2шт.
3
173918C91
DOOR ASSY, cab, includes ref nos. 4 thru 9
1шт.
4
169156C1
LATCH
LOCK ASSY, door
1шт.
5
393237R91
HANDLE
ASSY, door
1шт.
6
173897C1
LATCH
ASSY, door holder
1шт.
7
173905C1
GLASS, door
1шт.
8
886263C1
SEAL, glass moulding 137 inches
1шт.
9
886262C1
STRIP, filler 137 inches
1шт.
10
937635R1
STRIP
STRIKER, door
1шт.
11
173911C1
LATCH, door
1шт.
12
173903C1
GLASS, RH side front
1шт.
13
169148C1
SEAL, glass mounting 136 inches
1шт.
14
169153C1
STRIP, filler 136 inches
1шт.
15
173904C1
GLASS, RH rear side vent
1шт.
16
173900C1
MOULDING, rear RH window 100 inches
1шт.
17
170404C1
HANDLE
ASSY, vent window
1шт.
18
173912C1
HINGE ASSY, vent window
1шт.
19
168914C1
LATCH, vent window holding
1шт.
20
168913C1
SPRING, vent window latch
1шт.
21
168814C1
GLASS, rear
1шт.
22
169146C1
SEAL, glass mounting 96 inches
1шт.
23
169151C1
STRIP, filler 96 inches
1шт.
24
168811C1
GLASS, LH rear side
1шт.
25
169145C1
SEAL, glass moulding 88 inches
1шт.
26
169150C1
STRIP, filler 88 inches
1шт.
27
168809C1
GLASS, windshield
1шт.
28
169149C1
SEAL, glass moulding 190 inches
1шт.
29
169154C1
STRIP, filler 190 inches
1шт.
30
167870C1
FILTER
ASSY
1шт.
31
173919C91
WRAPPER W/DOME LIGHT & LOUVERS PRESSURIZER, refer to cab pressurizer unit for listing
1шт.
32
676078R1
RETAINER
shockproof light
2шт.
33
165067C1
MAT
operators cab floor, for chain drive feeder
1шт.
33
169205C1
MAT, operators cab floor, for belt drive feeder
1шт.
34
167477C91
MIRROR ASSY, rear view, refer to rear view mirror unit for listing
1шт.
35
173917C1
AIR SCOOP ASSY
1шт.
36
535850R1
LAMP
headlight
2шт.
Выбрано товаров: 39
