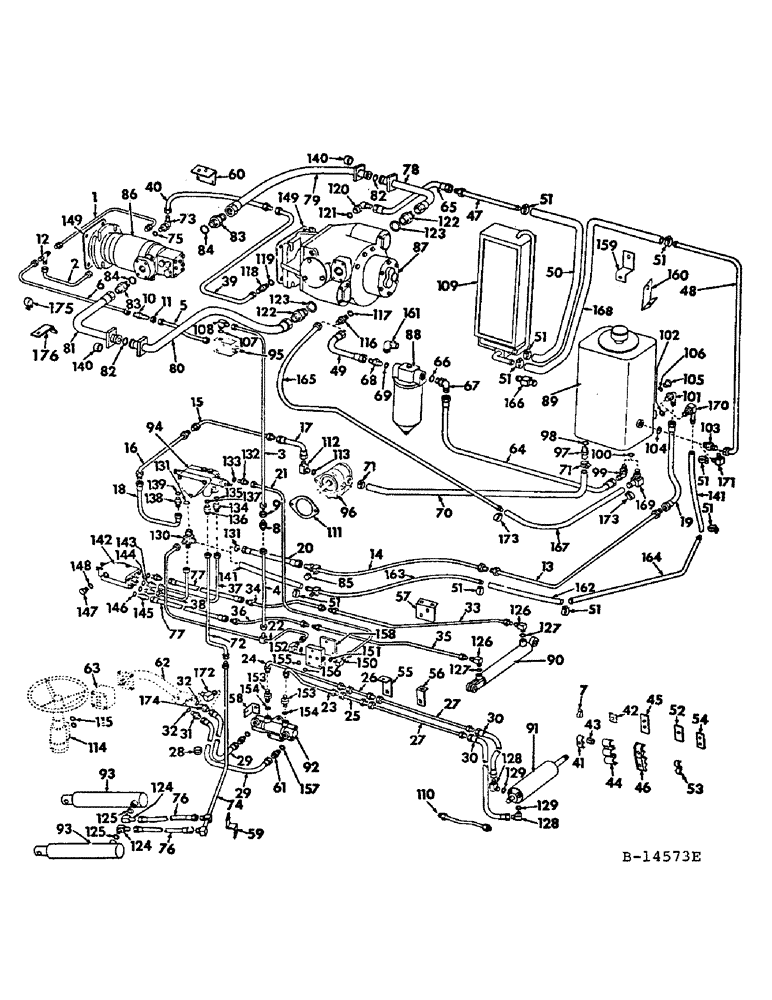

Запчасти Case IH 815 (F-02) - HYDRAULICS SYSTEM, HYDRAULIC DIAGRAM, BASIC (07) - HYDRAULIC SYSTEM

1

165625C92

TUBE

ASSY, foot-n-inch lower front

1шт.

2

165626C92

TUBE

ASSY, foot-n-inch lower rear

1шт.

3

165638C91

TUBE ASSY, foot-n-inch front return

1шт.

4

165604C91

TUBE ASSY, foot-n-inch rear return

1шт.

5

165624C92

TUBE ASSY, foot-n-inch upper

1шт.

6

175763C1

TUBE ASSY, foot-n-inch lower

1шт.

7

587501R2

CLAMP

CLIP, hydraulic tube

2шт.

8

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION, 9/16-18 37 deg hyd flared tube bulk head

1шт.

9

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT, 9/16-18 bulk head union lock

1шт.

10

9403252

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

UNION, 7/16-20 37 deg hyd flared tube bulk head

1шт.

11

9403291

BHD LOCK NUT,Blkhd, 7/16"-20

NUT, 7/16-20 bulk head union lock

1шт.

12

9402979

TEE,7/16"-20, 37 Degree

7/16-20 37 deg hyd flared tube three way

1шт.

13

165639C92

TUBE ASSY, platform lift upper return, for use w/reservoir 173003C91

1шт.

14

165616C91

TUBE ASSY, platform lift lower return, for use w/reservoir 172003C91

1шт.

15

165617C92

TUBE ASSY, platform lift upper pressure

1шт.

16

165615C91

TUBE ASSY, platform lift lower pressure

1шт.

17

381170R91

HOSE

ASSY, platform lift upper pressure 15.5 inch, for all combines serial no. 4688 and below, diesel only serial no. 4689 and above

1шт.

17

175818C1

HOSE ASSY, platform lift upper pressure 13 inch, V-8 engine serial no. 4689 and above

1шт.

18

381173R91

HOSE,12.7mm ID x 209.55mm L, SAE 100R1

ASSY, platform lift lower pressure 18.25 inch

1шт.

19

166601C91

HOSE ASSY, platform lift upper return 19 inch, for use w/reservoir 172003C91

1шт.

20

633301R91

HOSE ASSY, platform lift lower return 15 inch, for use w/reservoir 172003C91

1шт.

21

165612C92

TUBE ASSY, steering pressure

1шт.

22

165613C91

TUBE ASSY, steering return

1шт.

23

165606C92

TUBE ASSY, steering front upper

1шт.

24

165605C92

TUBE ASSY, steering front lower

1шт.

25

165623C92

TUBE ASSY, steering center upper

1шт.

26

165622C92

TUBE ASSY, steering center lower

1шт.

27

166286C91

TUBE ASSY, steering rear, for grain, bean, corn & windrow special

2шт.

27

167566C1

TUBE ASSY, steering rear, for rice special

2шт.

28

115329R1

GROMMET

steering upper hose rubber

6шт.

29

168132C1

HOSE

ASSY, steering upper 67 inch

2шт.

30

155309C91

HYDRAULIC HOSE,0.31" ID x 20.00", SAE 100R1

0.31" ID x 20.00", Steering Rear

2шт.

31

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 37 deg hyd flared tube

1шт.

32

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

for 1/2 OD tube

2шт.

33

165610C93

TUBE ASSY, unloader tube swing cylinder extension upper

1шт.

34

165611C92

TUBE ASSY, unloader swing cyl ext lower, for use w/reservoir 172003C91

1шт.

34

172421C1

TUBE ASSY, unloader swing cyl ext lower, for use w/reservoir 171956C91

1шт.

35

165608C92

TUBE ASSY, unloader swing cyl retract upper

1шт.

36

165609C92

TUBE ASSY, unloader swing cyl retract lower, for use w/reservoir 172003C91

1шт.

36

172420C1

TUBE ASSY, unloader swing cyl retract lower, for use w/reservoir 171956C91

1шт.

37

165614C92

TUBE ASSY, unloader tube swing cylinder valve pressure

1шт.

38

165607C91

TUBE ASSY, grain tank unldr tube swing cyl valve return

1шт.

39

166289C91

TUBE ASSY, hydrostatic bleed upper

1шт.

40

166292C91

TUBE ASSY, hydostatic bleed lower

1шт.

41

165602C1

CLAMP

for 3/8 OD hyd tube

1шт.

41

165601C1

CLAMP

for 5/8 OD hyd tube

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 C-Z sq-nk crg

1шт.

18675R1

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 C-Z sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

41

157678C1

CLAMP

hydrostatic pressure tube

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 hex-hd mach

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

42

581284R1

STRIP, hyd tube clamp backing

1шт.

43

163489C1

STRIP

hyd tube clamp rubber

1шт.

43

163490C1

RUBBER INSULATOR

STRIP, hyd tube clamp rubber

1шт.

43

163491C1

RUBBER INSULATOR

STRIP, hyd tube clamp rubber

1шт.

43

163492C1

RUBBER INSULATOR

STRIP, hyd tube clamp rubber

1шт.

43

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

hyd tube clamp rubber

1шт.

44

150778C1

CLAMP, ground drive pressure tube

1шт.

45

150779C1

TUBE

STRAP, ground drive pressure tube

1шт.

45

150780C1

STRAP

ground drive pressure tube

1шт.

45

150780C1

STRAP

ground drive pressure tube

1шт.

46

165603C1

CLAMP, for 1/4, 5/8, 3/4 OD hyd tube

3шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 znp sq-nk crg

3шт.

18630R1

BOLT (SPREADER),Short NK, 1/4"-20 x 1 3/4", G2

BOLT, 5/16 x 1-3/4 znp sq-nk crg

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

6шт.

47

165619C91

TUBE ASSY, hyd pump to oil cooler, all comb. but diesel w/hyd reel lift

1шт.

47

168946C1

TUBE ASSY, hyd pump to oil cooler, for diesel w/hyd reel lift

1шт.

48

165618C91

TUBE ASSY, oil reservoir to oil cooler, for use w/cooler 400733R1, V-8 gasoline and LP gas engines

1шт.

48

168947C1

TUBE ASSY, oil reservoir to oil cooler, for use w/cooler 400733R1, diesel engine

1шт.

48

173018C1

TUBE ASSY, oil reservoir to oil cooler, for use w/cooler 400733R2, all comb. but diesel w/hyd reel lift

1шт.

48

173020C1

TUBE ASSY, oil reservoir to oil cooler, for use w/cooler 400733R2, for diesel w/hyd reel lift

1шт.

49

162392C91

HOSE ASSY, hyd pump to oil filter, for use w/reservoir 172003C91

1шт.

50

171939C1

HOSE ASSY.

HOSE, oil cooler to hyd pump, 18 inch

1шт.

51

995224R1

CLAMP

ASSY, hyd hose

10шт.

52

573186R1

PLATE

STRIP, tube clamp backing

1шт.

52

157783C1

SEAL, tube clamp cushion

1шт.

52

157679C1

SEAL, tube clamp cushion

1шт.

53

157678C1

CLAMP

hydrostatic bleed lower tube

1шт.

54

165628C1

STRIP, hyd tube clamp backing

2шт.

55

165600C1

ANGLE, steering tube support lower, rice only

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znp sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

56

165599C1

ANGLE, steering tube support upper

2шт.

57

165598C1

BRACKET, grain tank unloader tube supt

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

58

166523C1

ANGLE, platform lift tube support

1шт.

59

166524C1

SUPPORT, platform lift tube

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

60

167030C1

ANGLE, ground drive pressure tube clip support

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

2шт.

61

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 37 deg hyd tube

2шт.

62

SUPPORT ASSY, steering, see section J under steering wheel

1шт.

63

BLOCK, steering wheel tilt, see section J under steering wheel

1шт.

64

155016C91

HOSE ASSY, reservoir to filter 21 in., for use w/reservoir 172003C91

1шт.

65

628440R91

HOSE ASSY, hydrostatic return, 12 in.

1шт.

66

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

for 3/4 OD tube, for use w/reservoir 172003C91

1шт.

67

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

1-1/16-12 deg hyd tube 90 deg, for use w/reservoir 172003C91

1шт.

68

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 1-1/16-12 37 deg hyd tube, diesel w/reservoir 172003C91

1шт.

69

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

for 3/4 OD tube, for use w/reservoir 172003C91

1шт.

70

168386C3

HYDRAULIC HOSE,1.00" ID x 14.00"

HOSE - Pump suction, Not hydraulic reel drive 1.00" ID x 14.00"

1шт.

71

279024R91

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP, pump suction hose

2шт.

72

168261C1

TUBE ASSY, platform lift upper, serial no. 3783 and below

1шт.

72

174198C1

TUBE ASSY, platform lift upper, serial no. 3784 and above

1шт.

73

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

1-1/16-12 hyd tube 90 deg

1шт.

74

166283C91

TUBE ASSY, platform lift lower

1шт.

75

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for 5/8 OD tube

1шт.

76

587582R91

HOSE ASSY.

HOSE ASSY, platform lift, 29 in.

2шт.

77

162305C91

HOSE

ASSY, grain tank unloader tube, for use w/reservoir 172003C91

2шт.

78

160803C91

TUBE ASSY, ground drive up rear pressure

1шт.

79

165418C91

TUBE ASSY, ground drive rear lower, includes ref no. 140

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 type 4 C-Z

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

80

160804C91

TUBE ASSY, ground dr front up pressure

1шт.

81

165434C91

TUBE ASSY, ground drive front lower, includes ref no. 140

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 type 4 C-Z

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

82

343906R1

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1-5/16 x 1-9/16 x 1/8

2шт.

83

163915C1

FITTING

CONNECTOR, 1-5/16-12 hyd tube 37 deg

2шт.

84

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

for 1 OD tube

2шт.

85

9403373

CAP,37 Degree, 7/8"-14

7/8-14 37 deg hyd flared tube

1шт.

86

403332R92

MOTOR

ASSY, hydrostatic drive, refer to hydrostatic drive motor unit for listing

1шт.

87

403331R95

PUMP

ASSY, hydrostatic drive, refer to hydrostatic drive pump unit for listing

1шт.

88

156571C91

FILTER CARTRIDGE

FILTER ASSY, hydrostatic oil, for use w/reservoir 172003C91, refer to hydrostatic oil filter unit for listing

1шт.

89

172003C91

RESERVOIR ASSY, hydraulic oil, w/o built-in strainer

1шт.

107

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube

1шт.

89

171956C91

RESERVOIR ASSY, hydraulic oil w/built-in strainer, refer to hydraulic reservoir for listing

1шт.

90

532764R91

CYLINDER

ASSY, unloader tube swing, optional w/160419C91 cylinder

1шт.

90

160419C91

CYLINDER

ASSY, unloader tube swing, optional w/532764R91 cylinder, refer to unloader tube swing cylinder unit for listing

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

21890R1

PIN, 5/8 x 1-3/4 std hd dld

1шт.

21933R1

PIN

5/8 x 2-1/2 std hd dld

1шт.

91

157422C91

CYLINDER

ASSY, steering, optional w/548247R91 cylinder

1шт.

91

548247R91

CYLINDER ASSY.,Double Acting, 22.35mm Rod, 228.6mm Stroke

CYLINDER ASSY, steering, optional w/157422C91 cylinder, refer to steering cylinder unit for listing

1шт.

92

527492R91

LOCK VALVE

VALVE ASSY, steering, refer to steering valve unit for listing

1шт.

93

160417C91

CYLINDER

ASSY, platform lift, optional w/545705R91 cylinder

1шт.

93

545705R91

NO LONGER SERVICED

CYLINDER ASSY, platform lift, optional w/160417C91 cylinder, refer to platform lift cylinder unit for listing

1шт.

94

164753C91

HYDRAULIC VALVE

VALVE ASSY, platform lift, for all comb. serial no. 1972 and below for comb. w/pltf automatic control serial no. 1973 thru 3783

1шт.

94

170299C91

HYDRAULIC VALVE

VALVE ASSY, platform lift, for comb. w/o pltf auto control, serial no. 1973 thru 3783, all comb. serial no. 3784 and above, refer to platform lift valve unit for listing

1шт.

95

403347R91

LOCK VALVE

VALVE ASSY, foot-n-inch, refer foot-n-inch valve unit for listing

1шт.

96

160452C92

PUMP, HYDRAULIC

PUMP ASSY, hydraulic, not hydraulic reel drive

1шт.

18797R1

BOLT

7/16 x 1-3/4 hex-hd mach

2шт.

636489R1

KEY

3/16 sq x 13/16

1шт.

271501

SOCKET

NUT, 7/16 C-Z hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

168318C92

KIT

ASSY, for 160452C92

1шт.

96

160453C92

PUMP ASSY, hydraulic, for use w/hydraulic reel drive

1шт.

The kit for item 96 pump should read168316c92.mck 8/96

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 hex-hd mach

2шт.

452779R1

KEY,1/4" Sq x 3/4", Par

1/4 sq x 1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

168318C92

KIT

ASSY, diaphram repair, for pump assy 160453C92

1шт.

97

390640R1

FITTING

hydraulic reservoir hose

1шт.

98

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

for 1 OD tube

1шт.

99

150776C91

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

1-1/16-12 & 1-5/16-12 37 deg hyd, for use w/reservoir 172003C91

1шт.

100

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

for 1 OD tube

1шт.

101

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

1-1/16-12 37 deg hyd, for use w/reservoir 172003C91

1шт.

102

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

for 3/4 OD tube

1шт.

103

573206R1

HYD CONNECTOR,7/8"-14, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 7/8-14 & 1-1/16 37 deg hyd, all w/400733R1 cooler except diesel w/hydraulic reel lift

1шт.

103

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, reservoir to cooler tube, all w/400733R2 cooler except diesel w/hydraulic reel lift

1шт.

104

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

for 3/4 OD tube

1шт.

105

9410361

PLUG

1-1/16-12, not for use w/hydraulic reel dr

1шт.

106

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

for 3/4 OD tube

1шт.

108

164596C1

ELBOW

90 degree

1шт.

109

400733R2

NO LONGER SERVICED

COOLER ASSY, hydraulic oil

1шт.

110

166841C92

TUBE ASSY, narrow guide wheel axle, for grain bean and windrow w/52 to 68 in. adj axle

1шт.

111

173585C1

GASKET

hydraulic pump

1шт.

112

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 hyd tube 37 deg 90 deg, 1 for 160452C92 pump

1шт.

113

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for 5/8 OD tube, 2 for 160453C92 pump

1шт.

114

160454C91

PUMP ASSY, steering hand, refer to steering hand pump unit for listing

1шт.

115

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

for 1/2 OD tube

2шт.

116

574479R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 & 1-1/16-12 hyd tube

1шт.

117

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for 5/8 OD tube

1шт.

118

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 hyd tube 37 deg

1шт.

119

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for 5/8 OD tube

1шт.

120

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 hyd tube 37 deg 90 deg

1шт.

121

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for 5/8 OD tube

1шт.

122

163915C1

FITTING

CONNECTOR, 1-5/16-12 hyd tube

2шт.

123

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

for 1 OD tube

2шт.

124

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 37 deg hyd tube 90 deg

2шт.

125

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

for 1/2 OD tube

2шт.

126

9410974

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

7/16-20 37 deg hyd tube 90 deg

2шт.

127

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

2шт.

128

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg tube 90 deg, not for use w/wide adj guide wheel axle & cyl 548247R91

2шт.

128

9411104

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 45 deg hyd tube, for use w/wide adj guide wheel axle & cyl 548247R91

2шт.

129

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, for 3/8 OD tube

2шт.

130

165705C91

TEE, 7/8-14 & 1-1/16-12 & 9/16-18 37 deg, for use w/reservoir 172003C91

1шт.

130

172418C1

TEE, return tube, for use w/reservoir 171956C91

1шт.

131

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for 5/8 OD tube

2шт.

132

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg hyd tube

1шт.

133

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, for 3/8 OD tube

1шт.

134

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg hyd tube

1шт.

135

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, for 3/8 OD tube

1шт.

136

574478R1

UNION

CONNECTOR, 3/4-16 & 7/8-14 37 deg hyd tube

1шт.

137

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

for 1/2 OD tube

1шт.

138

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg hyd tube

1шт.

139

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for 5/8 OD tube

1шт.

140

165722C1

SLEEVE

tube nut rubber

1шт.

141

HOSE ASSY, platform lift return, use 18 ins. of 3/4 ID hyd hose from 25 ft roll marked 526603R1, for use w/reservoir 171956C91

2шт.

142

164754C91

VALVE

ASSY, grain tank unloader tube swing & reel lift, refer to grain tank unloader tube swing & reel lift valve unit for listing

1шт.

18660R1

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 2

1/4 x 2-1/4 znp hex-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

143

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

CONNECTOR, 9/16-18 & 3/4-16 37 deg

2шт.

143

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 & 9/16-18 & 9/16-18 37 deg

2шт.

144

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

for 1/2 OD tube

2шт.

144

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, for 3/8 OD tube

2шт.

145

157519C1

HYD CONNECTOR,7/16"-20, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 7/16-20 & 9/16-18 37 deg hyd

2шт.

146

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, for 3/8 OD tube

2шт.

147

9410358

PLUG

9/16-18 37 deg

2шт.

148

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, for 3/8 OD tube

2шт.

149

165506C1

GASKET, hydrostatic drive motor & pump

2шт.

150

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd tube 90 deg

2шт.

151

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, for 3/8 OD tube

2шт.

152

633383R1

BLOCK, steering valve

1шт.

153

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg hyd tube

2шт.

154

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, for 3/8 OD tube

2шт.

155

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1 1/8 x 3/32

1шт.

156

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32

1шт.

157

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

for 1/2 OD tube

2шт.

158

161149C1

STRAP, steering valve rubber

1шт.

159

168952C1

STRAP, hose clamp, for diesel w/hyd reel lift

1шт.

160

168951C1

STRAP, hose clamp, for diesel w/hyd reel lift

1шт.

161

9410949

ELBOW, 1-1/16-12 37 deg hyd tube, V-8 engine, for use w/reservoir 172003C91

1шт.

162

HOSE, platform lift center return, use 7 ins. of 3/4 ID hyd hose, from 25 ft roll marked 526603R1, for use w/reservoir 171956C91

1шт.

163

172416C1

TUBE ASSY, platform lift lower return, for use w/reservoir 171956C91

1шт.

164

172414C1

TUBE ASSY, platform lift upper return, for use w/reservoir 171956C91

1шт.

165

172419C1

TUBE, pump charge suction, for use w/reservoir 171956C91

1шт.

166

173148C1

CONNECTOR, oil cooler inlet port, for use w/400733R2 cooler on combines equipped w/5/8 OD tubes

1шт.

167

171355C1

HOSE ASSY, charge pump suction, 7-1/2 in., for use w/reservoir 171956C91

1шт.

168

162458C1

PIPE CLAMP

HOSE, oil cooler to reservoir, use 15 ins. of 3/4 ID hose, from 25 ft roll marked 526603R1, for use w/cooler 400733R2

1шт.

169

171948C1

ELBOW

1-5/16-12 90 deg hyd hose, for use w/reservoir 171956C91

1шт.

170

387006R91

ELBOW

1-1/16-12 90 deg hyd hose, for use w/reservoir 171956C91

1шт.

171

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

reservoir to cooler tube, for D-414 diesel w/hyd reel lift and 400733R2 cooler

1шт.

171

633460R91

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1 1/16"-12, O-Ring

reservoir to cooler tube, for D-407 diesel w/hyd reel lift and 400733R1 cooler

1шт.

172

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-37 deg hyd flared tube, D-414 diesel

1шт.

173

333710R91

HOSE CLAMP,#16, 0.81/1.50 Type F Worm

SWITCH MOUNTING, suction hose, for use w/reservoir 171956C91

2шт.

174

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 37 deg hyd flared tube, for V-8 or D-407 diesel engines

1шт.

173584C91

PACKAGE ASSY, oil cooler connector service, parts accessories, includes ref nos. 50, 51 and 166, for use w/cooler 400733R2 on combines equipped w/5/8 OD tubes

1шт.

175

573674R1

CLIP

hyd tube

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt truss-hd

1шт.

176

175767C1

ANGLE, lower tube support

1шт.
