Запчасти Case IH 815 (G-31) - ELECTRICAL SYSTEM, NIGHT LIGHT (06) - ELECTRICAL SYSTEMS

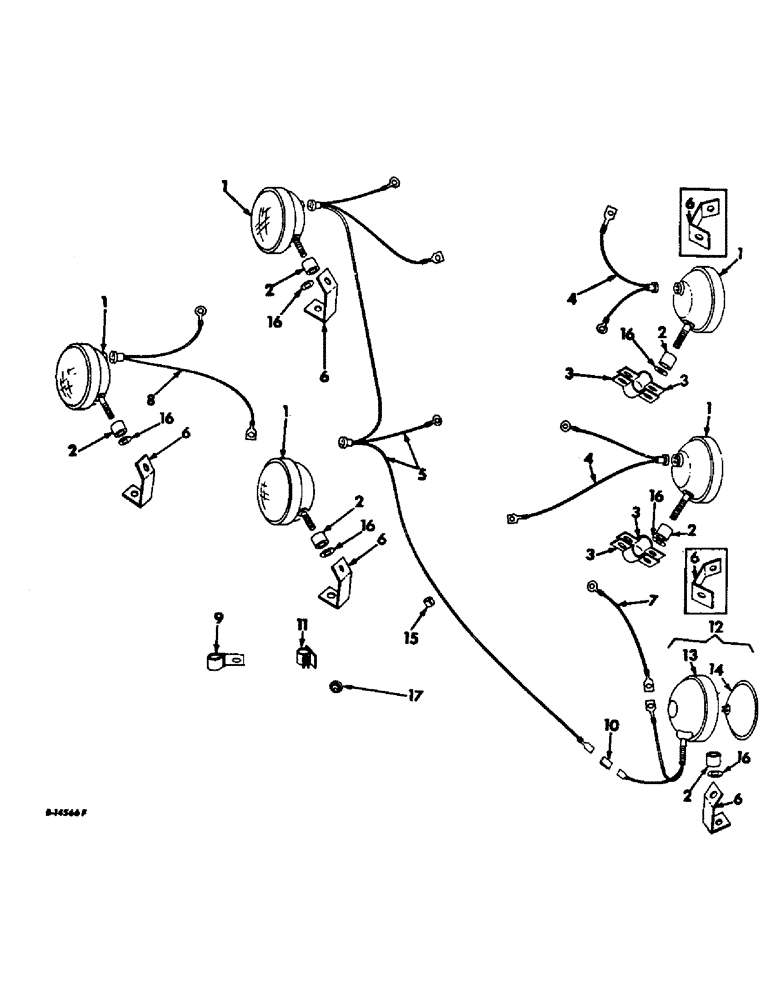

Схема запчастей Case IH 815 - (G-31) - ELECTRICAL SYSTEM, NIGHT LIGHT (06) - ELECTRICAL SYSTEMS
6
3
11
1
6
3
3
1
15
3
2
1
6
2
1
3
16
10
4
14
16
13
8
12
16
7
17
1
16
4
16
2
6
2
9
6
2
6
2
16

Артикул

Название

Примечание

Количество

1

391005R91

HEADLIGHT

LAMP ASSY, head grain tank & rear

5шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

5шт.

120384

WASHER,1/2"

LOCK, 1/2"

5шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

5шт.

2

49069D

SPACER

lamp

6шт.

3

167032C1

CLAMP, head light, not used w/operators cab

4шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

167412C1

CABLE

ASSY, front head light, for use w/operators cab

2шт.

4

166059C91

CABLE ASSY, front head light, not for use w/operators cab

2шт.

5

163812C91

HARNESS ASSY, grain tank light cable, 75 in.

1шт.

6

561915R1

BRACKET

lamp mounting, 4 used w/o operators cab, 6 used w/operators cab

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

388825R91

CABLE ASSY, right front head light to ground, 6 in.

1шт.

8

165669C91

CABLE ASSY, rear light

1шт.

9

362127R1

CLIP

light cable

1шт.

9

366460R1

CABLE CLIP

CLIP, grain tank front light cable

4шт.

10

376794R1

CONNECTOR, plastic body single line for right front lamp, serial no. 1972 and below

1шт.

11

166921C1

CLIP, grain tank light cable

1шт.

12

402080R91

LAMP ASSY, right front, serial no. 1972 and below

1шт.

12

391005R91

HEADLIGHT

LAMP ASSY, right front, serial no. 1973 and above

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

13

676078R1

RETAINER

shock proof light, serial no. 1972 and below

1шт.

14

373662R91

LAMP

UNIT ASSY, sealed beam, serial no. 1972 and below

1шт.

14

371443R91

LAMP BASE

UNIT ASSY, sealed beam, serial no. 1973 and above

1шт.

15

163489C1

STRIP

grain tank light cable rubber

1шт.

16

936476R1

SQ HOLE WASHER

lamp spacer

1шт.

17

117959

GROMMET,5/16" ID x .719" x .062"

rubber diagonal cut

1шт.

Выбрано товаров: 33
