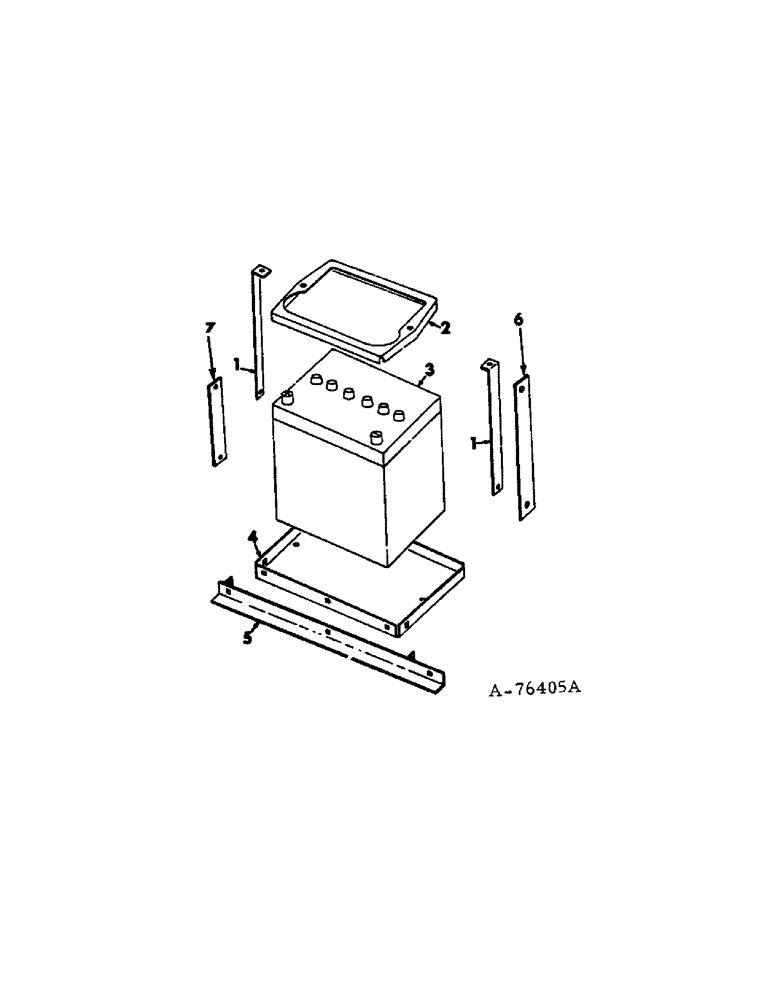

Запчасти Case IH 815 (G-30) - ELECTRICAL SYSTEM, BATTERY AND SUPPORTS, FOR V-8 GASOLINE AND LP GAS ENGINES (06) - ELECTRICAL SYSTEMS

1

166543C2

STRAP, battery support, V-8 gasoline engine

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

72924R1

CLAMP

battery hold down

1шт.

22394R1

BOLT,Hex, 5/16"-18 x 9 1/2", G2

5/16 x 9-1/2 hex-hd mach

2шт.

935736R1

NUT, WING

NUT, 5/16 C-Z wing

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

2шт.

3

395587R1

BATTERY, 12 volt, Prestolite 2431X

1шт.

4

166544C1

PLATE, battery support

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

166540C91

ANGLE ASSY, battery lower support, V-8 gasoline engine

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

166663C1

STRAP, battery support, LP gas engine

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

166664C1

STRAP, battery support, LP gas engine

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
