Запчасти Case IH 815 (G-30[1]) - BATTERY AND SUPPORTS, DIESEL ENGINE (06) - ELECTRICAL SYSTEMS

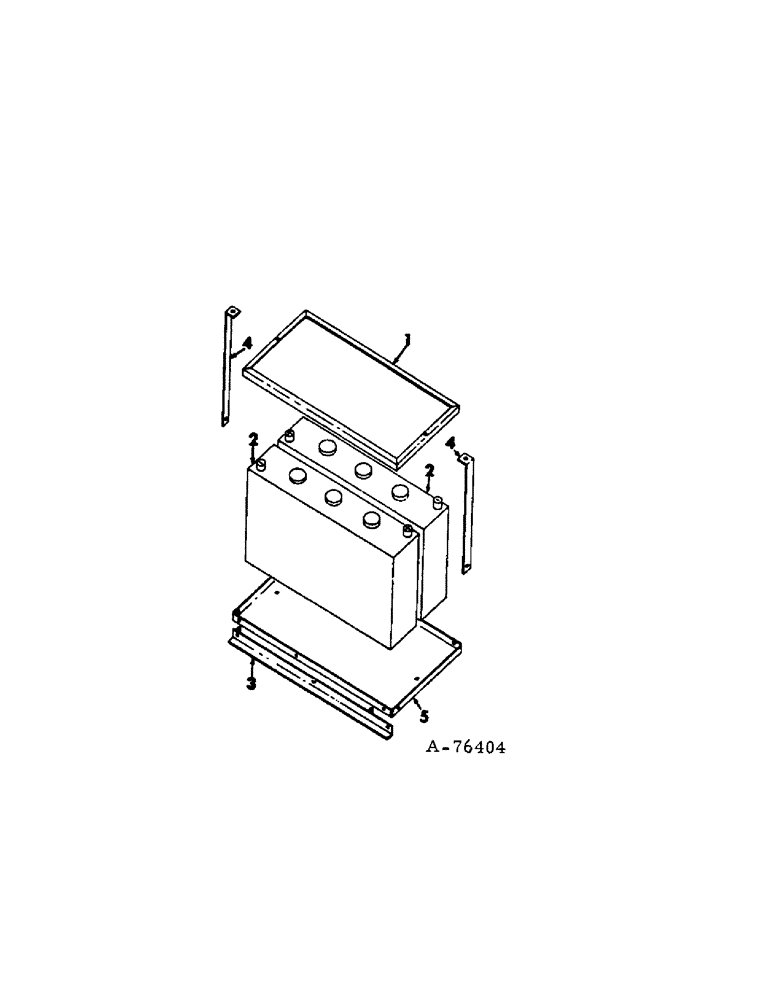

Схема запчастей Case IH 815 - (G-30[1]) - BATTERY AND SUPPORTS, DIESEL ENGINE (06) - ELECTRICAL SYSTEMS
1
3
4
2
5
4
2

Артикул

Название

Примечание

Количество

1

161616C1

ANGLE, battery hold down

1шт.

22394R1

BOLT,Hex, 5/16"-18 x 9 1/2", G2

5/16 x 9-1/2 znp hex-hd mach

2шт.

935736R1

NUT, WING

NUT, 5/16 C-Z wing

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

2шт.

2

392244R91

BATTERY, 6 volt, Prestolite 1303X

1шт.

3

166540C91

ANGLE ASSY, battery lower support

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

166543C2

STRAP, battery support

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

166545C1

PLATE, battery support

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Выбрано товаров: 17
