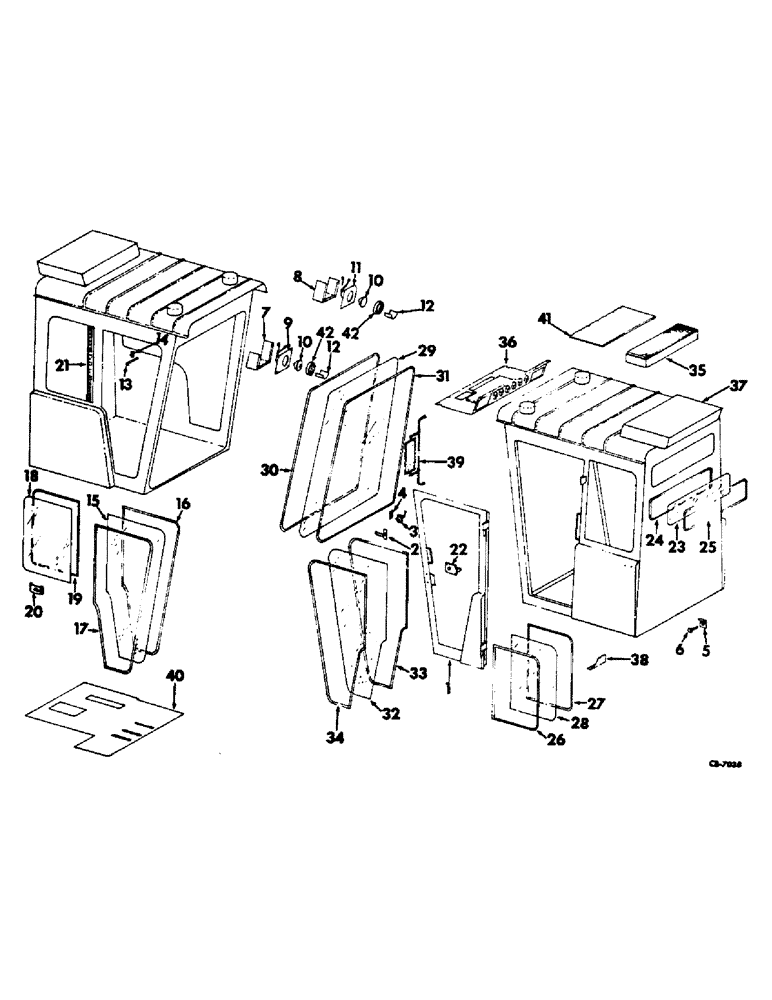

Запчасти Case IH 815 (N-02) - PARTS, ACCESSORIES AND ATTACHMENTS, OPERATORS CAB, SERIAL NO. 3451 & BELOW FOR CAB W/REAR AIR INTAKE Accessories & Attachments

1

168918C91

DOOR ASSY

1шт.

2

393237R91

HANDLE

ASSY, door

1шт.

3

168917C1

LATCH ASSY, door holder

1шт.

4

937635R1

STRIP

STRIKER, door

1шт.

5

168916C1

CHECK ASSY, door

1шт.

6

168915C1

BUMPER

1шт.

7

168926C1

HOUSING ASSY, LH headlight

1шт.

8

168927C1

HOUSING ASSY, RH headlight

1шт.

9

387730R91

LIGHT

LAMP ASSY, LH headlight, includes ref nos. 10 and 42

1шт.

10

535850R1

LAMP

headlight

2шт.

11

387927R91

LAMP

ASSY, RH headlight, includes ref nos. 10 and 42

1шт.

12

168925C1

SHIELD

head lamp

2шт.

13

168914C1

LATCH, vent window moulding

1шт.

14

168913C1

SPRING, vent window latch

1шт.

15

168813C1

GLASS, side RH front

1шт.

16

169148C1

SEAL, glass moulding 136 inches

1шт.

17

169153C1

STRIP, filler 136 inches

1шт.

18

168812C2

GLASS, RH rear side vent

1шт.

19

169155C1

MOULDING

1шт.

20

170404C1

HANDLE

FASTENER ASSY, vent window

1шт.

21

168945C2

HINGE ASSY, vent window

1шт.

22

169156C1

LATCH

ASSY, door

1шт.

23

168814C1

GLASS, rear window glass dimensions

1шт.

24

169146C1

SEAL, glass moulding 96 inches

1шт.

25

169151C1

STRIP, filler 96 inches

1шт.

26

169150C1

STRIP, filler 88 inches

1шт.

27

169145C1

SEAL, glass moulding 88 inches

1шт.

28

168811C1

GLASS, LH rear side

1шт.

29

168809C1

GLASS, windshield

1шт.

30

169149C1

SEAL, glass moulding 190 inches

1шт.

31

169154C1

STRIP, filler 190 inches

1шт.

32

168810C1

GLASS, door

1шт.

33

169147C1

SEAL, glass moulding 132 inches

1шт.

34

169152C1

STRIP, filler 132 inches

1шт.

35

167870C1

FILTER

ASSY

1шт.

36

168825C91

PRESSURIZER W/DOME LIGHT, refer to pressurizer unit for listing

1шт.

37

168842C1

AIR SCOOP ASSY

1шт.

38

169186C1

BRACKET, shield support

1шт.

587640R1

NUT, 1/4-20 speed

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z slt truss-hd whiz lock

1шт.

39

167477C91

MIRROR ASSY, rear view, refer to rear view mirror for unit listing

1шт.

40

165067C1

MAT

operators cab floor, for chain drive feeders

1шт.

40

169205C1

MAT, operators cab floor, for belt drive feeders

1шт.

41

172945C1

HEADLINER, operators cab

1шт.

42

676078R1

RETAINER

shockproof light

2шт.
