Запчасти Case IH 815 (G-25) - ELECTRICAL SYSTEM, ALTERNATOR GENERATOR, FOR COMBINES WITH VOLTAGE REGULATOR (06) - ELECTRICAL SYSTEMS

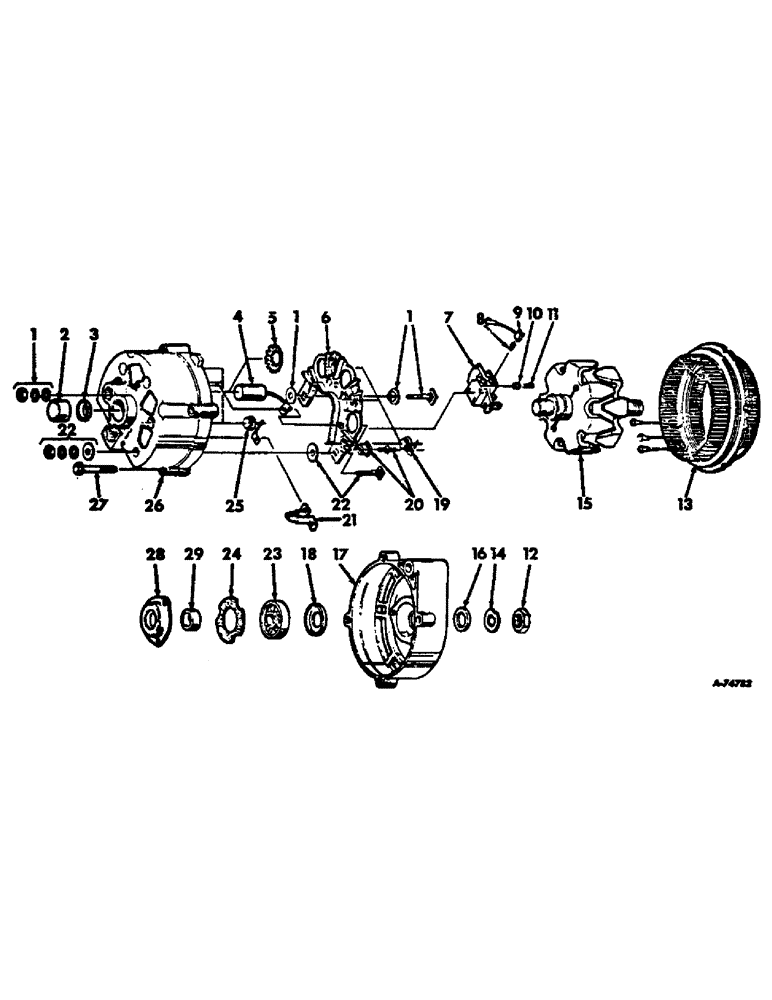

Схема запчастей Case IH 815 - (G-25) - ELECTRICAL SYSTEM, ALTERNATOR GENERATOR, FOR COMBINES WITH VOLTAGE REGULATOR (06) - ELECTRICAL SYSTEMS
19
13
28
16
29
25
6
7
12
4
1
17
11
1
8
2
20
22
9
26
10
18
23
15
24
27
14
3
1
21
5

Артикул

Название

Примечание

Количество

1100791

GENERATOR

ALTERNATOR GENERATOR ASSY, 397091R91

1шт.

1100883

GENERATOR

ALTERNATOR GENERATOR ASSY, 532176R91

1шт.

87297246

REMAN-ALTERNATOR

Reman For New P/N 1100883

1шт.

87297247

CORE-ALTERNATOR

Return Part Number

1шт.

87297244

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

87297245

CORE-ALTERNATOR

Return Part Number, 12 volt, 61 ampere Alternator

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Part Number, 12 VOLT, 61 AMP Alternator

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

103799A1C

CORE-ALTERNATOR

Return Part Number

1шт.

103802A1R

REMAN-ALTERNATOR

Reman For New P/N 1100883

1шт.

103802A1C

CORE-ALTERNATOR

Return Part Number

1шт.

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

103804A1R

REMAN-ALTERNATOR

Reman For New P/N 1100883

1шт.

103804A1C

CORE-ALTERNATOR

Return Part Number

1шт.

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere

1шт.

103805A1C

CORE-ALTERNATOR

Return Part Number

1шт.

103806A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 60 ampere

1шт.

103806A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

1959833

TERMINAL CONNECTOR

TERMINAL PACKAGE, ground

1шт.

2

7451326

BEARING

BEARING, slip ring end, used with 1100791

1шт.

2

423649C91

BALL BEARING

BEARING, slip ring end, used with 1100883

1шт.

3

1961323

SEAL

RETAINER W/FELT, slip ring end

1шт.

4

1959455

CAPACITOR

CAPACITOR

1шт.

1959523

SPARE PART WASHER, capacitor screw insulator

1шт.

5

1960750

VALVE SPRING

SPRING, capacitor

1шт.

6

1959828

PACKAGE

HEAT SINK ASSY

1шт.

7

1964682

HOLDER

HOLDER ASSY, brush & spring

1шт.

8

NOT SERVICED SEPARATELY, order holder assy 1964682

1шт.

9

NOT SERVICED SEPARATELY, order holder assy 1964682

1шт.

10

1959389

INSULATOR

INSULATOR, capacitor terminal screw, used with 1100883

1шт.

11

1957501

SCREW

SCREW, brush holder attaching

2шт.

12

1911324

NUT

NUT, drive end shaft

1шт.

13

1959531

STATOR

STATOR ASSY, used with 1100791

1шт.

13

1962025

COIL

STATOR ASSY, used with 1100883

1шт.

14

1941978

WASHER

WASHER, drive end shaft

1шт.

15

1958565

ROTOR

ROTOR ASSY

1шт.

16

1959991

COLLAR

COLLAR, drive end outside spacer

1шт.

17

1959917

FUNNEL

FRAME, drive end

1шт.

18

(Not used in this application)

1шт.

19

1964353

DIODE

DIODE, positive

3шт.

20

1959834

TERMINAL STRIP

TERMINAL PACKAGE, diode junction

3шт.

21

(Not used in this application)

1шт.

22

1959832

TERMINAL STRIP

TERMINAL PACKAGE, battery

1шт.

23

904751

BEARING

BEARING, drive end ball, used with 1100791

1шт.

23

539103R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

BEARING, drive end ball, used with 1100883

1шт.

24

1912008

FELT

GASKET, bearing retainer plate

1шт.

25

1964354

DIODE

DIODE, negative

3шт.

26

1969329

FUNNEL

FRAME FRAME, slip ring end, used with 1100791

1шт.

26

1959827

FUNNEL

FRAME FRAME, slip ring end, used with 1100883

1шт.

27

1956975

BOLT

BOLT, thru

4шт.

28

1955494

PLATE

RETAINER ASSY, drive end bearing

1шт.

A46941

SCREW,Hex Washer, #10 - 24 x 0.52"

SCREW, attaching

3шт.

29

1963139

COLLAR CLAMP

COLLAR, drive end inside spacer

1шт.

Выбрано товаров: 54
