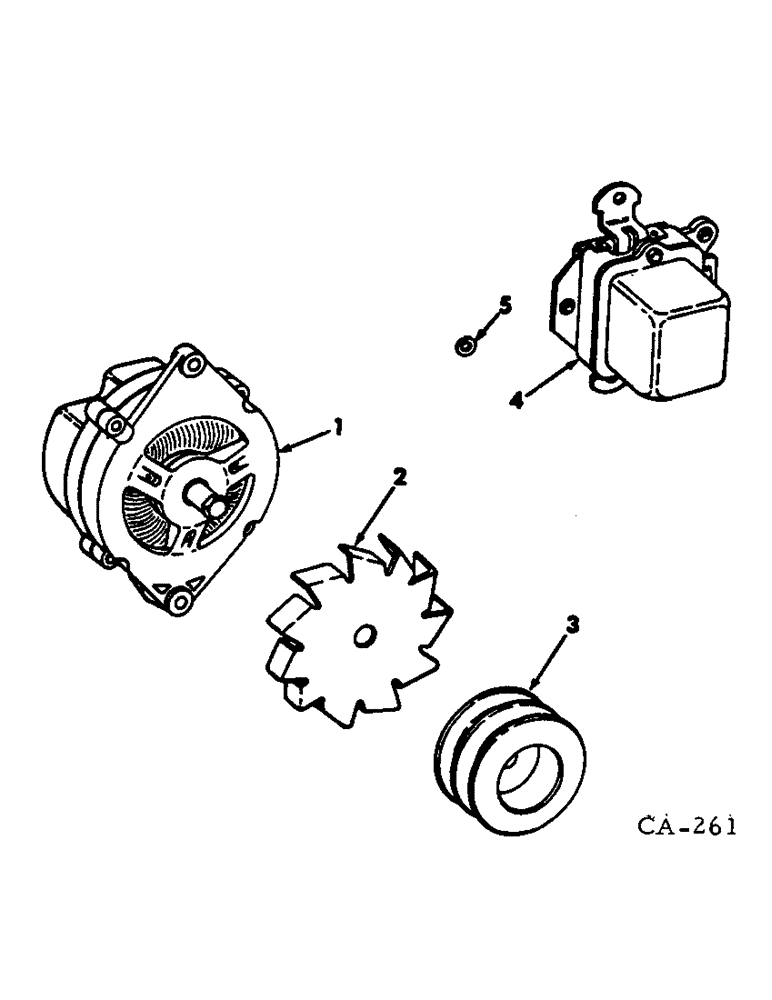

Запчасти Case IH 815 (G-24) - ELEC. SYS., ALTERNATOR-GENERATOR AND VOLTAGE REGULATOR CONNECTIONS DIESEL ENG. W/ VOLTAGE REGULATOR (06) - ELECTRICAL SYSTEMS

1

1100791

GENERATOR

ALTERNATOR-GENERATOR, 397091R91, order alternator-generator 1100883

1шт.

1

1100883

GENERATOR

ALTERNATOR-GENERATOR, 532176R91, for components see list of parts under details of alternator-generator

1шт.

1

87297246

REMAN-ALTERNATOR

Reman For New P/N 1100883

1шт.

1

87297247

CORE-ALTERNATOR

Return Part Number

1шт.

1

87297244

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

1

87297245

CORE-ALTERNATOR

Return Part Number, 12 volt, 61 ampere

1шт.

1

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

1

103801A1C

CORE-ALTERNATOR

Return Part Number, 12 VOLT, 61 AMP Alternator

1шт.

1

103799A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

1

103799A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

103802A1R

REMAN-ALTERNATOR

Reman For New P/N 1100883

1шт.

1

103802A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

1

103804A1R

REMAN-ALTERNATOR

Reman For New P/N 1100883

1шт.

1

103804A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere

1шт.

1

103805A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

103806A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 60 ampere

1шт.

1

103806A1C

CORE-ALTERNATOR

Return Part Number

1шт.

2

1940994

FAN

FAN, alternator-generator, 221425R1

1шт.

3

528438R1

SPARE PART PULLEY, alternator-generator

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

121743

CHAIN,#12 - 24

no. 12-24 C-Z hex

1шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 x 3-1/4 znd hex-hd cap

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

4

1119513

VOLTAGE REGULATOR

REGULATOR, voltage 336410R91, consists of (1) regulator 1119507, (1) cover 1958151, (2) screw 1962733, (1) package 1962629

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

NUT, 1/4 C-Z whiz lock

2шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4-20 x 5/8 C-Z hex-hd cap

2шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

SCREW, 5/16-18 x 1-1/8 C-Z hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

557264R1

WASHER

WASHER, 11/32 x 3/4 x 11 ga

1шт.

5

280185R1

SPACER

SPACER, alternator brace

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

BOLT, Hex, 5/16"-18 x 1 1/4", G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
