Запчасти Case IH 815 (G-23) - ELECTRICAL SYSTEM, ALTERNATOR-GENERATOR AND CONNECTIONS, FOR ENGINES WITHOUT VOLTAGE REGULATOR (06) - ELECTRICAL SYSTEMS

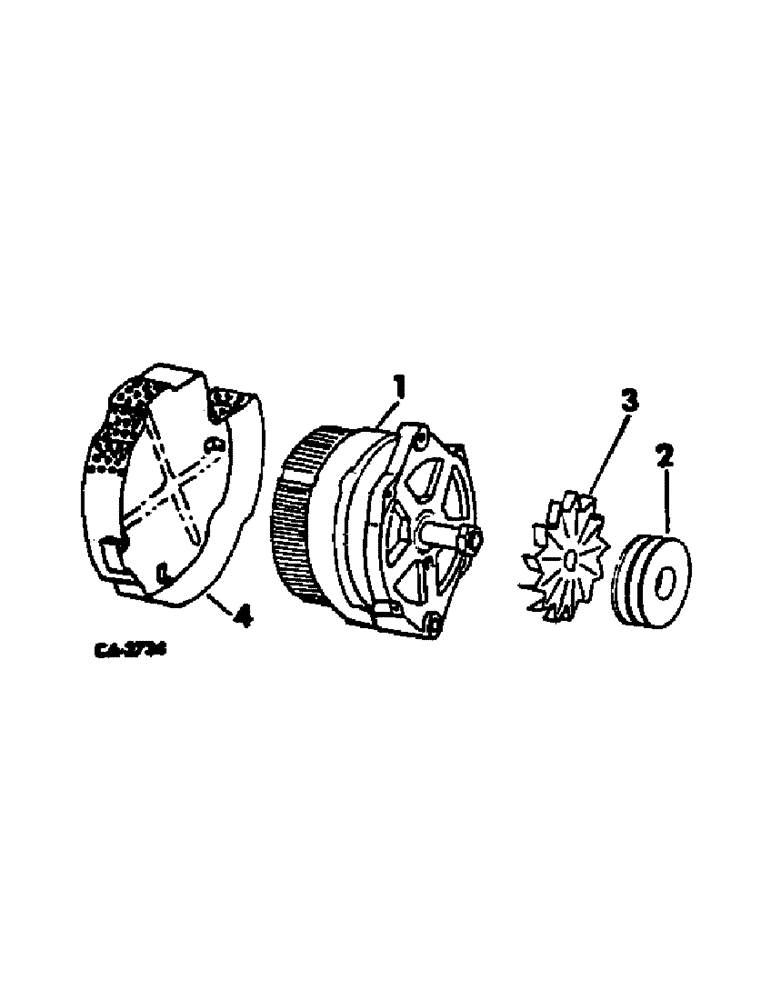

Схема запчастей Case IH 815 - (G-23) - ELECTRICAL SYSTEM, ALTERNATOR-GENERATOR AND CONNECTIONS, FOR ENGINES WITHOUT VOLTAGE REGULATOR (06) - ELECTRICAL SYSTEMS
4
2
3
1

Артикул

Название

Примечание

Количество

1

1102375

ALTERNATOR

ALTERNATOR-GENERATOR, 548237R91, for components see list of parts under details of alternator-generator

1шт.

1

87297246

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

1

87297247

CORE-ALTERNATOR

Return Part Number

1шт.

1

103799A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

1

103799A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

1

103804A1R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

1

103804A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere

1шт.

1

103805A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

103806A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 60 ampere

1шт.

1

103806A1C

CORE-ALTERNATOR

Return Part Number

1шт.

225-14112

NUT,#12-24

12-24 C-Z hex

1шт.

121744

ANGLE

Washer, Lock, #12

1шт.

2

537070R1

PULLEY

PULLEY, alternator-generator

1шт.

3

221425R1

FAN

FAN, alternator-generator, 221425R1

1шт.

4

1851153

SHIELD

SHIELD, cover assembly, 548238R1

1шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

SCREW, 5/16-18 x 1-1/8 znd hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

Выбрано товаров: 19
