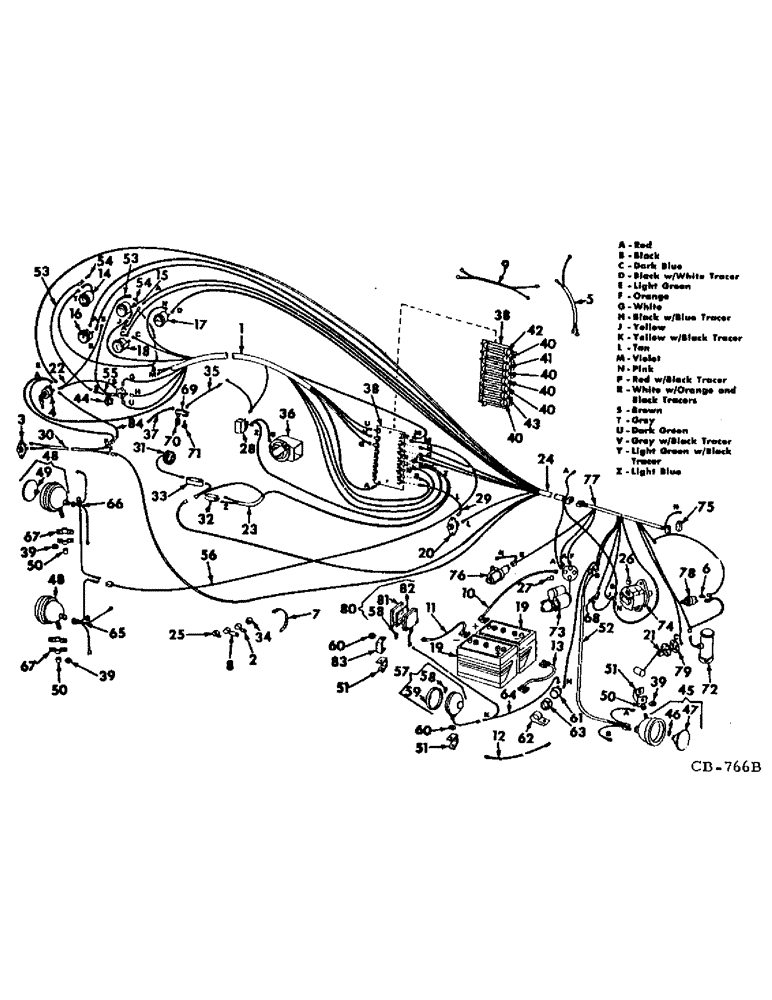

Запчасти Case IH 815 (G-18) - ELECTRICAL SYSTEM, WIRING DIAGRAM, BASIC, DIESEL ENGINE SERIAL NO. 1973 AND ABOVE (06) - ELECTRICAL SYSTEMS

1

170526C1

HARNESS ASSY, main cable front, serial no. 3027 and below

1шт.

1

172921C1

HARNESS ASSY, main cable front, serial no. 3028 thru 3783

1шт.

1

174490C1

HARNESS ASSY, main cable front, serial no. 3784 and above

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable

1шт.

2

362123R1

CLIP

cable

1шт.

2

370383R1

CLIP

cable

1шт.

2

362127R1

CLIP

cable

1шт.

2

362667R1

CLIP

cable

1шт.

2

362126R1

CLIP

cable

1шт.

3

366317R93

SWITCH

ASSY, starting

1шт.

3

366317R93GV

CONTROL

Value, Control Switch

1шт.

120611

NUT,#10 - 32

no. 10-32 C-Z sq

2шт.

436695

SCREW,Slotted Pan Hd, #8-32 x 1/2"

no. 8 x 1/2 C-Z pan-hd

2шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

no. 10 x 1/2 C-Z pan-hd

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

607893R1

WASHER

13/64 x 1/2 x 16 ga C-Z

2шт.

4

164895C91

SWITCH

ASSY, ignition

1шт.

365502R1

NUT

13/16-20 hex

2шт.

125793

LOCK, Int Tooth, 13/16"

1шт.

5

170792C1

HARNESS ASSY, air cleaner, 56 in., D-407 diesel

1шт.

6

376749R1

BODY

CONNECTOR, air cleaner cable, D-407 diesel

1шт.

7

702093C1

CABLE TIE

STRAP, wiring tie

1шт.

8

363660R1

CLIP

cable twisted

1шт.

8

370820R1

CLIP

cable

1шт.

9

170521C1

HARNESS ASSY, fuel pump, 57 in., D-407 diesel

1шт.

10

166536C91

CABLE ASSY, battery, 106 in.

1шт.

11

158476C91

CABLE

ASSY, battery ground, 66 inch

1шт.

18785R1

BOLT,Hex, 3/8"-16 x 3", G2

3/8 x 3 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

12

158477C91

CABLE

ASSY, engine ground, 18 in.

1шт.

13

259171R91

CABLE

ASSY, battery to battery, 7.5 in.

1шт.

14

174467C1

GAUGE

ASSY, water temperature

1шт.

15

163835C91

GAUGE

ASSY, oil pressure

1шт.

16

167021C1

GAUGE ASSY.

GAUGE ASSY, ammeter

1шт.

17

167020C1

GAUGE ASSY, air cleaner restriction, serial no. 3783 and below

1шт.

18

163836C91

GAUGE

ASSY, fuel

1шт.

19

392244R91

BATTERY, 6 volt dry charged, Prestolite 1303X

2шт.

20

395074R93

SWITCH

ASSY, push button ether

1шт.

120611

NUT,#10 - 32

no. 10-32 sq

2шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

no. 10 x 1/2 C-Z pan-hd

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

21

162018C91

GAUGE ASSY.

UNIT ASSY, fuel gauge sending

1шт.

168527C1

SCREW,Sl Pan Hd, #10 - 24 x 1/2", W/ Rbr Wshr, 90 Duro

no. 10 x 1/2 C-Z pan washer hd

4шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no. 10 x 1/2 C-Z slt pan-hd

1шт.

796002R1

COPPER WASHER

WASHER, .197 x .334 x .036 copper

1шт.

22

163807C91

CABLE ASSY, ammeter gauge, 16 in.

1шт.

23

170525C1

CABLE ASSY, brake warning light, serial no. 3027 and below

1шт.

23

172920C1

HARNESS ASSY, brake warning light, serial no. 3028 thru 3783

1шт.

23

174493C1

HARNESS ASSY, brake warning light, serial no. 3784 and above

1шт.

24

170518C1

HARNESS ASSY, main center, serial no. 3783 and below

1шт.

24

174492C1

HARNESS ASSY, main center, serial no. 3784 and above

1шт.

25

400505R1

CLAMP

CLIP, cable double

1шт.

25

366460R1

CABLE CLIP

CLIP, cable

1шт.

26

399470R1

BOOT

main center harness terminal

1шт.

27

364910R1

BOOT

battery terminal

1шт.

28

241120R91

RELAY

ASSY, warning, 2 used serial no. 3027 and below, 1 used serial no. 3028 and above

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

29

170517C1

CABLE ASSY, ether starting switch to key switch, 23 in.

1шт.

30

165667C91

HARNESS ASSY, starting switch, 24 in.

1шт.

31

166827C91

LIGHT

ASSY, warning

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no. 10 x 1/2 C-Z pan-hd

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

32

633643R91

SWITCH

ASSY, parking brake warning light

1шт.

134530

NUT,Hex, #6 - 32

2шт.

436668

SCREW, no. 6 x 7/8 C-Z pan-hd

2шт.

492-11006

LOCK WASHER,#6

Lock, #6

2шт.

68107H

LOCK NUT

parking brake warning light

1шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

1шт.

166817C1

WASHER

.281/.344 slt x 2 x .06

1шт.

33

303236R91

INDICATOR LIGHT

FLASHER, warning light signal

1шт.

34

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

no. 5 plain rubber diagonal

1шт.

34

23406R1

GROMMET,3/16" ID x 7/16" x .125", Diag Cut

3/16 rubber diagonal

1шт.

34

115329R1

GROMMET

rubber, not used w/monitor control

1шт.

34

117973

GROMMET,5/16" ID x 1 3/8" x .062", Diag Cut

5/16 plain diagonal

1шт.

34

117959

GROMMET,5/16" ID x .719" x .062"

no. 3 plain diagonal

1шт.

35

167411C1

CABLE ASSY, elevator clutch, 120 in., not used w/monitor control

1шт.

36

166166R91

HORN

ASSY, elevator clutch warning

1шт.

37

CABLE ASSY, elevator ground, not used w/monitor control, use 4 inches of 14 ga wire from 100 ft roll marked 995055R1, one 54771R2 terminal and one 54775R2 terminal

1шт.

38

170523C3

PANEL

ASSY, fuse

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

436734

SCREW,Slotted Pan Hd, #10-24 x 3/4"

no. 10 x 3/4 C-Z pan-hd

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

39

936476R1

SQ HOLE WASHER

lamp spacer

3шт.

40

117142

FUSE,10 Amp, Type 3AG

cartridge type 10 amp

5шт.

41

9426333

FUSE,15 Amp, Type 3AG

cartridge type 15 amp

1шт.

42

455844

FUSE,25 Amp, Type 3AG

cartridge type 25 amp

1шт.

43

223-31

FUSE,10 Amp, Type 3AG

cartridge type 30 amp

1шт.

44

166380C92

SWITCH

ASSY, light

1шт.

45

387729R91

LIGHT

LAMP ASSY, tail, includes ref nos. 46 and 47

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

46

455490

BULB,C-6, #1003, 12V, .94W

light, 1003

1шт.

47

371461R91

LENS

UNIT ASSY, sealed beam

1шт.

48

391005R91

HEADLIGHT

LAMP ASSY, head, includes ref no. 49

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

2шт.

49

371443R91

LAMP BASE

UNIT ASSY, sealed beam

2шт.

50

49069D

SPACER

lamp

3шт.

51

561915R1

BRACKET

lamp mounting, 2 used serial no. 3193 and below, 3 used serial no. 3194 and above

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

52

163815C92

HARNESS ASSY, tail light, 177 in.

1шт.

53

372546R91

CABLE

SOCKET ASSY, instrument light

5шт.

54

A14553

BULB

INSTRUMENT LIGHT

5шт.

55

165668C91

CABLE ASSY, instrument light

1шт.

56

170519C1

CABLE ASSY, head light, 60 in.

1шт.

57

394129R91

LIGHT

LAMP ASSY, flasher, round removable lens, includes ref nos. 58 & 59

1шт.

57

67538C91

HEADLAMP

LIGHT ASSY, flasher, round lens not serviced on this light, includes ref no. 58, 1 used serial no. 3193 and below, 2 used serial no. 3194 and above

2шт.

120371

NUT,1/2"-20, G5

1шт.

58

9417866

BULB,C6, #1156, 12.8V

no. 1156 flasher, 1 used serial no. 3193 and below, 2 used serial no. 3194 and above

1шт.

59

396585R1

LENS

warning light, amber

1шт.

59

397442R1

LENS, warning light, red, round lens for use w/394129R91 ref no. 57, 2 used serial no. 3193 and below, 4 used serial no. 3194 and above

1шт.

60

394262R1

WASHER

flasher lamp, 1 used serial no. 3193 and below, 2 used serial no. 3194 and above

1шт.

61

394132R91

FLASHER UNIT

FLASHER ASSY

1шт.

62

394133R1

FASTENER

CLAMP, flasher mounting

1шт.

63

394134R1

SEAL

HOSE, flasher mounting absorber

1шт.

64

165670C91

CABLE ASSY, flasher to flasher light, serial no. 3193 and below

1шт.

64

173107C1

CABLE ASSY, flasher to flasher light, serial no. 3194 and above

1шт.

65

167033C1

CALBE ASSY, head light rail LH, 44 in.

1шт.

66

167034C1

CABLE ASSY, head light rail RH, 80 in.

1шт.

67

167032C1

CLAMP, head light rail

4шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

68

548239R1

DIODE

serial no. 3784 and above

1шт.

69

574649R91

SWITCH

ASSY, elev slip clutch micro, not used w/monitor control

1шт.

134530

NUT,Hex, #6 - 32

2шт.

436670

SCREW,Slotted Pan Hd, #6-32 x 1 1/4"

no. 6 x 1-1/4 C-Z pan-hd

2шт.

492-11006

LOCK WASHER,#6

Lock, #6

2шт.

107359H

WASHER, 5/32 x 3/8 x 18 ga C-Z

2шт.

70

M296

SPRING

elevator micro switch, not used w/monitor control

1шт.

71

570028R91

BOLT

BOLT ASSY, elev slip clutch micro switch, not used w/monitor control

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

72

170352C1

PUMP

ASSY, D-407 diesel

1шт.

72

174362C91

FUEL PUMP

PUMP ASSY, fuel, D-414 diesel, see section E fuel pump for D-414 diesel for components

1шт.

73

1113647

STARTER MOTOR

MOTOR ASSY, cranking 381035R91, refer to cranking motor unit for listing

1шт.

74

GENERATORY ALTERNATOR, refer to alternator generator and voltage regulator unit for listing

1шт.

75

1119513

VOLTAGE REGULATOR

REGULATOR, voltage 336410R91, serial no. 3783 and below, refer to alternator generator unit for listing

1шт.

76

393719R92

NOZZLE

SOLENOID ASSY, ether injection

1шт.

77

532392R1

HARNESS ASSY, main cable, serial no. 3783 and below

1шт.

77

548240R1

HARNESS ASSY, main cable, serial no., Serial Range: 3784-8000

1шт.

78

389682R91

SWITCH

electric air cleaner

1шт.

79

168515C1

GASKET,3.05mm Thk

fuel gauge sending unit

1шт.

80

536679R91

LIGHT

ASSY, flasher, square lens, includes ref nos. 58, 81 and 82

2шт.

81

537011R1

LENS

warning light, red, square lens

4шт.

81

537012R1

LENS

warning light, amber, square lens

4шт.

82

537010R1

GASKET

warning light, square lens

2шт.

83

561915R1

BRACKET

flasher light mounting, for use w/standard capacity grain tank serial no. 3194 and above

1шт.

84

(Not used in this application)

1шт.
