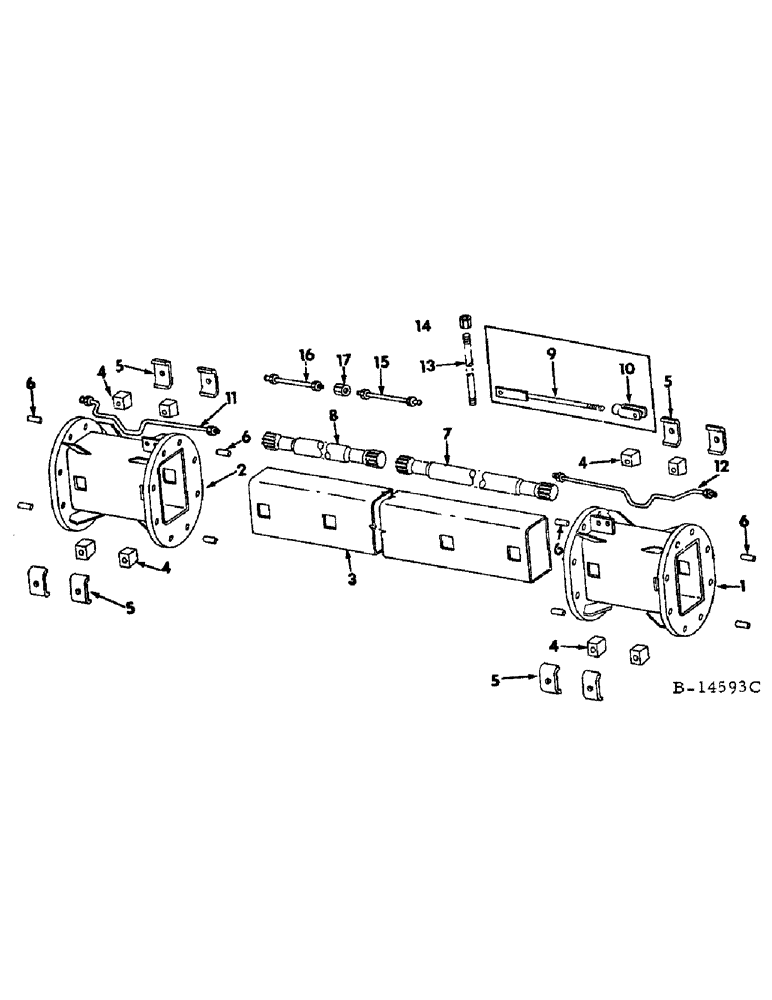

Запчасти Case IH 815 (B-08) - POWER TRAIN, MAIN WHEEL AXLE EXTENSION (03) - POWER TRAIN

1

167335C91

EXTENSION ASSY, main axle left, serial no. 3266 and below

1шт.

1

171996C1

EXTENSION ASSY, main axle left, serial no. 3267 and above

1шт.

525841R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

5/8 x 1-1/2 hex-hd type 4

2шт.

20548R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

5/8 x 1-3/4 hex-hd type 4

6шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

5/8 x 2-1/4 hex-hd type 4

8шт.

629358R1

NUT

5/8 type 4 hv. hex

8шт.

138553

WASHER

5/8 C-Z int-tooth lock

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

2

167336C91

EXTENSION ASSY, main axle right, serial no. 3266 and below

1шт.

2

171997C1

EXTENSION ASSY, main axle right, serial no. 3267 and above

1шт.

525841R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

5/8 x 1-1/2 hex-hd type 4

2шт.

20548R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

5/8 x 2-3/4 hex-hd type 4

6шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

5/8 x 2-1/4 hex-hd type 4

8шт.

629358R1

NUT

5/8 type 4 hv hex.

8шт.

138553

WASHER

5/8 C-Z int-tooth lock

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

3

167337C1

EXTENSION ASSY, main axle inner

1шт.

4

167340C1

WEDGE, main axle extension

8шт.

5

169196C1

RETAINER, main axle extension wedge

8шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2 x 2 C-Z hex-hd cap

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

6

174801C1

DOWELL, main axle extension end flange

8шт.

7

160031C1

SHAFT, left final drive

1шт.

8

160034C1

SHAFT, right final drive

1шт.

9

165239C91

ROD ASSY, parking brake cable extension

1шт.

10

116383

CLEVIS

1/4-20 C-Z adj rod end

1шт.

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

1шт.

11

TUBE ASSY, right cross over, use 23 in. of 1/4 OD steel tubing from 25-ft roll marked 990094C1, one 142432 nut and one 157279C1 spud

1шт.

12

TUBE ASSY, left cross over, use 23 in. of 1/4 OD steel tubing from 25-ft roll marked 990094C1, one 142432 nut and one 157279C1 spud

1шт.

13

169208C1

ROD, parking brake rod extension

1шт.

14

169187C1

NUT, parking brake cable extension

1шт.

15

TUBE ASSY, left brake extension, for use w/elec feeder clutch, use 12 inches of 1/4 OD steel tubing from 25-ft roll marked 990094C1 and two 142432 nuts

1шт.

16

TUBE ASSY, right brake extension, for use w/elec feeder clutch, use 12 inches of 1/4 OD steel tubing from 25-ft roll marked 990094C1, one 9403535 nut, one 9403447 sleeve & one 157279C1 spud

1шт.

17

NLS

NO LONGER SERVICED

UNION, 1/4 inverted flare, for use w/elec feeder clutch (PN 137413)

1шт.
