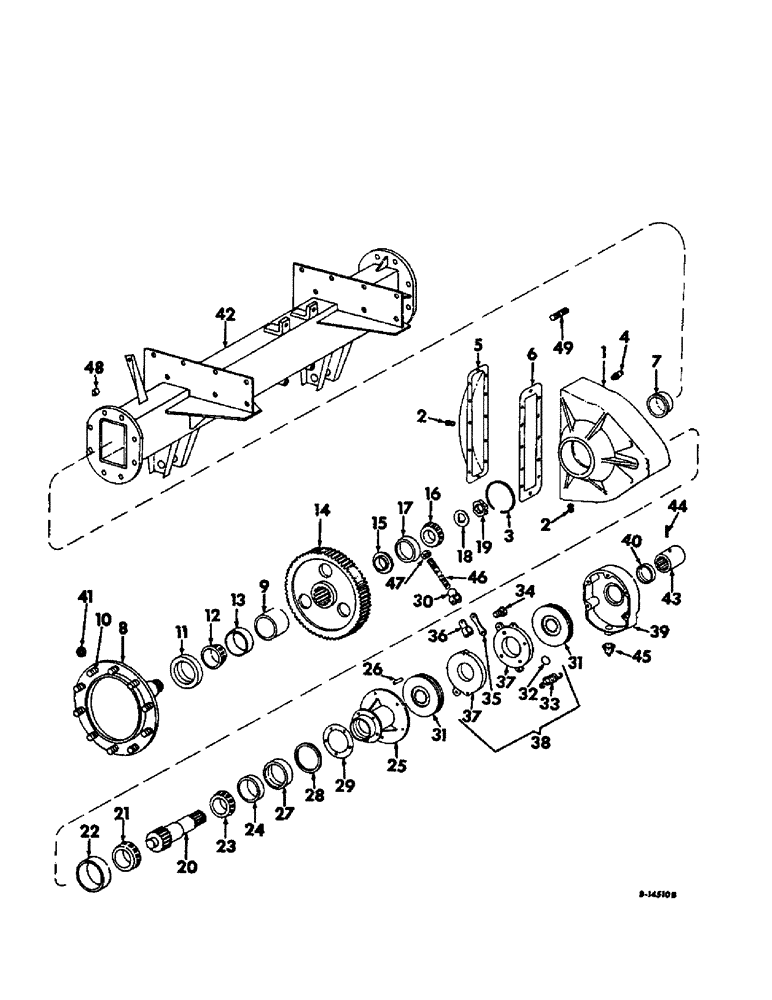

Запчасти Case IH 815 (B-06) - POWER TRAIN, AXLE, TUBE, FINAL DRIVE AND WHEEL BRAKES (03) - POWER TRAIN

1

402852R1

HOUSING, final drive LH

1шт.

1

402853R1

HOUSING

final drive RH

1шт.

2

444592

PLUG,Sq Hd, 1/4"-14 NPTF

3/4-14 auto sq-hd pipe

4шт.

3

404157R1

RING, retaining

2шт.

4

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

ASSY, oil

2шт.

5

587078R91

PAN ASSY.

PAN ASSY

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

24шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

24шт.

6

587655R1

GASKET

pan

2шт.

7

404158R1

CAP

final drive shaft inner brg

2шт.

8

404141R1

SHAFT

final drive, furnish shaft 544220R1, cone ST799 and cup 13273D

2шт.

8

544220R1

SHAFT, final drive

2шт.

9

402855R1

BUSHING

shaft outer

2шт.

10

565130R3

BOLT,3/4" - 16 x 2 5/8", Class 8

wheel

20шт.

11

402856R91

PACKING RING

SEAL, outer bearing cage oil

2шт.

12

402858R91

BEARING ASSY,2.8125" ID x 5" OD x 1.4375"

BEARING ASSY, outer cone, used w/shaft 404141R1

2шт.

12

ST799

CONE

BEARING ASSY, outer cone, used w/shaft 544220R2

2шт.

13

32145V

CUP

BEARING ASSY, outer cup, used w/shaft 404141R1

2шт.

13

13273D

BEARING, CUP,2.8755" ID x 5.001" OD x 1.452"

BEARING ASSY, outer cup, used w/shaft 544220R2

2шт.

14

402859R1

GEAR, final drive

2шт.

15

404349R1

SPACER, gear inner

2шт.

16

85971H

BEARING

ASSY, inner cone

2шт.

17

304660C1

BEARING, CUP

BEARING ASSY, inner cup

2шт.

18

404076R1

WASHER

final drive shaft

2шт.

19

528935R1

NUT

final drive shaft

2шт.

103391

COTTER PIN,1/8" x 2 1/2"

Pin, Split (Cotter), 1/8" x 2 1/2"

2шт.

20

395675R1

SHAFT

pinion

2шт.

21

56934D

ROLLER BEARING,2.1663" ID x 3.8125" OD x 0.8268"

ASSY, cone

2шт.

22

105497H

BEARING CUP,96.85mm OD x 15.77mm W

BEARING ASSY, cup

2шт.

23

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

BEARING ASSY, cone

2шт.

24

50213V

BEARING CUP

BEARING ASSY, cup

2шт.

25

404181R1

ADAPTER ASSY, brake LH

1шт.

25

404182R1

ADAPTER ASSY, brake RH, includes ref nos. 26 and 27

1шт.

376814R1

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5, W/ Nylon Pellet

SCREW W/NYLON PELLET, 7/16-14 x 1-1/8 hex-hd cap

10шт.

26

141279

DOWEL,1/2" x 3/4"

PIN, 1/2 x 3/4, dowel

2шт.

27

380186R92

OIL SEAL

brake adapter oil

10шт.

28

317923R1

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

3-5/8 x 3-7/8 x 1/8

2шт.

29

376467R1

SHIM

brake housing adapter .007

1шт.

29

405627R1

SHIM

brake housing adapter .003

1шт.

30

357043R1

CLEVIS,3/8" - 24

YOKE, brake operating

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

16618R1

CLEVIS PIN,7/16" x 1.190"

PIN, 7/16 x 1-15/16 dld

2шт.

31

321162R91

DISC

ASSY, middle

4шт.

32

16028R1

BALL

7/8 steel chrome

10шт.

33

619731C1

SPRING

6шт.

34

354642R1

STUD

actuating disc

4шт.

114493

JAM NUT,Jam, 5/16"-24, G5

4шт.

35

357113R1

LINK

actuating plain

2шт.

36

357114R91

LINK

actuating

2шт.

37

NSS

NOT SOLD SEPARAT

DISC, not serviced separately order 366182R92 disc assy

1шт.

38

366182R92

BRAKE DISC

DISC ASSY, actuating, includes ref nos. 32 thru 37

1шт.

39

574914R2

HOUSING

wheel brake

2шт.

NLS

NO LONGER SERVICED

7/16 hex

6шт.

179873

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

6шт.

PO10535

WASHER

17/32 x 1-1/4 x 11 ga

6шт.

40

380637R91

SEAL,44.45mm ID x 66.72mm OD x 5.08mm Thk

brake housing dirt

2шт.

41

69500D

SPECIAL NUT

NUT, 3/4-16 wheel bolt

20шт.

42

160020C91

AXLE ASSY, main

1шт.

413-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5

5/8 x 1 hex-hd cap

2шт.

432695R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

5/8 x 1-3/4 C-Z hex-hd cap

2шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

1/2 x 1-1/2 C-Z hex-hd type 4

2шт.

20661R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

5/8 x 2 hex-hd type 4

2шт.

629358R91

NUT, 5/8 hex. type 8 heavy

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex.

12шт.

161068R1

BOLT,Spcl, Hex, 5/8" - 11 x 1 1/2"

SCREW, 5/8 x 1-1/2 C-Z hex-hd cap type 4

14шт.

9406835

SCREW, 1/2 x 6 C-Z hex-hd soc-hd cap

2шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

366866C1

LOCK WASHER,5/8"

5/8"

1шт.

138557

WASHER,Int Tooth, 5/8"

5/8 int-tooth lock

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

26шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

2шт.

43

404862R1

SLEEVE

axle drive shaft

2шт.

44

441013R1

LOCK PIN,1/4" x 2 1/2", Slotted

Pin, 1/4" x 2 1/2", Slotted

2шт.

45

381699R1

BOOT

wheel brake housing

2шт.

46

665995R1

ROD

brake pull

2шт.

271506

DISC

7/16-20 hex

6шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

4шт.

47

354630R1

NUT

brake pull rod

2шт.

48

54700R1

DOWEL

main axle flange

4шт.

49

441553R1

STUD

5/8-11 x 2-3/4 long, serial no. 1973 and above

12шт.
