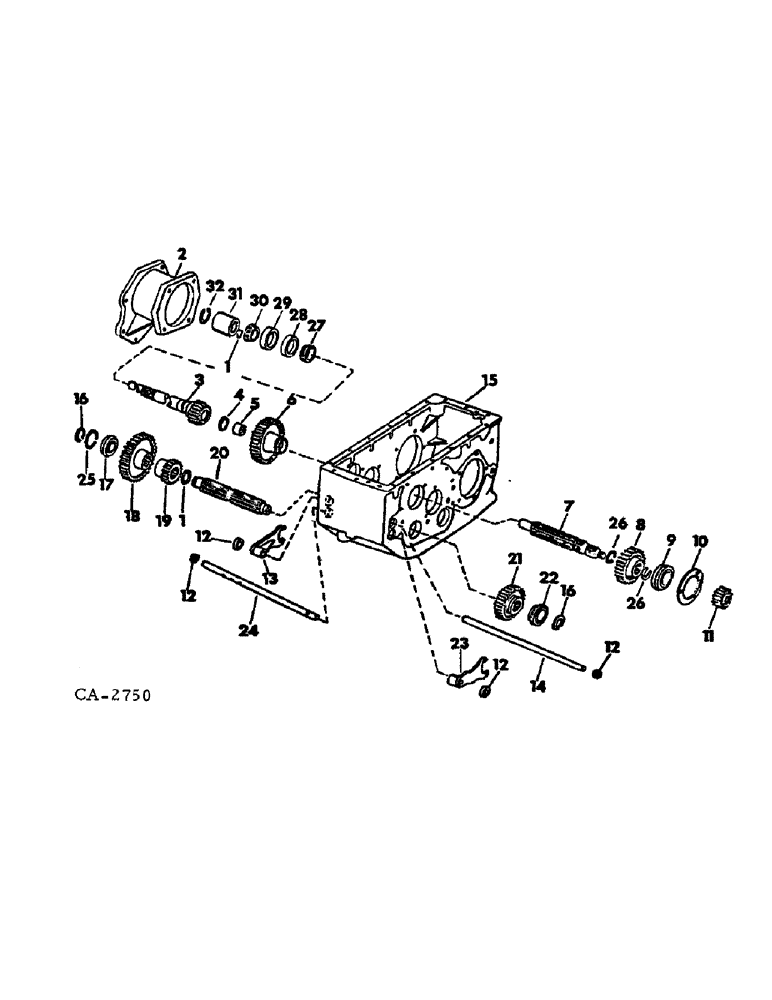

Запчасти Case IH 815 (B-04) - POWER TRAIN, TRANSMISSION,TRANSMISSION MAIN SHAFT, INPUT PINION SHAFT, SHIFTER RAILS AND FORKS (03) - POWER TRAIN

1

359141R1

RING, SNAP

RING, input pinion shaft, brg

2шт.

2

402849R1

HOUSING

motor adapter

1шт.

700518C1

PLUG

1/4 C-Z magnetic pipe

1шт.

376107R1

BOLT,Hex, 7/16" - 14 x 1 1/4", W/ Nylon Pellet

SCREW W/NYLON PELLET, 7/16-14 x 1-1/4 hex-hd cap

7шт.

3

402846R1

SHAFT

input pinion

1шт.

4

555601R1

RING, SNAP

RING, input drive shaft snap

1шт.

5

358035R91

BEARING, ROLLER, CYL,25mm ID x 44.82mm OD x 20.64mm W

input drive shaft

1шт.

6

395652R1

GEAR

first and third sliding, 38T and 20T, on orders for 402843R1 furnish 395649R1 and 349652R1

1шт.

7

402842R2

SHAFT

input drive

1шт.

382901R1

LOCK WASHER,26.16mm ID x 47.8mm OD x 3.18mm Thk

input drive shaft

1шт.

382900R1

LOCK WASHER

input drive shaft lock

1шт.

382879R1

NUT

input drive shaft

1шт.

8

402844R1

GEAR

second speed driven, 30T

1шт.

9

379438R91

ROLLER BEARING,34.99mm ID x 80mm OD x 21mm W

ASSY, input drive shaft

1шт.

ST419

RING

input dr shaft brg snap

1шт.

10

379481R1

RETAINER

input drive shaft right brg

1шт.

214168R1

CAPSCREW,5/16" x 7/8", Gr 5

SCREW W/NYLON PELLET, 5/16-18 x 7/8 hex-hd cap

3шт.

11

402845R1

GEAR

change drive pinion, 27T, standard speed 27-28 gears for rice and four row corn machines

1шт.

11

405437R1

GEAR

change drive pinion, 30T, standard speed 30-25 gears for grain machine

1шт.

11

395653R1

GEAR

change drive pinion, 25T, slow speed 25-30 gears for four row corn head machine

1шт.

12

111710R91

SEAL

shifter rail oil

4шт.

13

574904R1

FORK

reverse and second gear shifter

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

573985R1

SET SCREW,Sq Hd, 3/8"-24 x 1"

SCREW, shifter fork set

1шт.

14

405436R1

RAIL, second gear shifter

1шт.

15

402837R1

CASE, transmission

1шт.

16

370504R1

RING

transmission bearing snap

2шт.

17

ST364

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING, transmission main shaft left

1шт.

18

379495R1

GEAR

transmission input drive, 44T

1шт.

19

395649R1

GEAR

PINION, first speed drive - 18, on orders for 379472R1 furnish 395649R1 and 395652R1

1шт.

20

395648R11

SHAFT

W/COUPLING, transmission main coupling, transmission main shaft

1шт.

374639R1

COUPLING

transmission main shaft

1шт.

21

402841R1

GEAR

second speed drive, 26T

1шт.

22

379475R91

BEARING, ROLLER, CYL,30mm ID x 62.03mm OD x 16mm W

ASSY, transmission main shaft right

1шт.

ST419

RING

trans main shaft rt brg snap

1шт.

23

395656R1

FORK

first and third gear shifter

1шт.

111494

YOKE

NUT, 3/8-24 hex. jam

1шт.

573985R1

SET SCREW,Sq Hd, 3/8"-24 x 1"

SCREW, shifter fork set

1шт.

24

405435R1

RAIL, first & third gear shifter

1шт.

25

404207R1

RING,61.6mm ID x 68.4mm OD x 2.54mm Thk

transmission case sq seal

1шт.

26

100070R1

RING

input drive shaft snap

2шт.

27

671029R91

CONE

BEARING ASSY, cone

1шт.

28

671030R1

CUP

BEARING, cup

1шт.

29

54628H

BEARING CUP,1.375" ID x 2.717" OD x 0.7813, 0.6250"

BEARING, cup

1шт.

30

360321R91

BEARING ASSY,1.3775" ID x 2.78" OD x 0.7813"

ASSY, cone

1шт.

31

402847R11

COUPLING

ASSY, input, includes ref no. 32

1шт.

32

402848R1

RING

retaining

1шт.
