Запчасти Case IH 815 (E-25) - FUEL SYSTEM, WATER TRAP, FOR DIESEL ENGINE (02) - FUEL SYSTEM

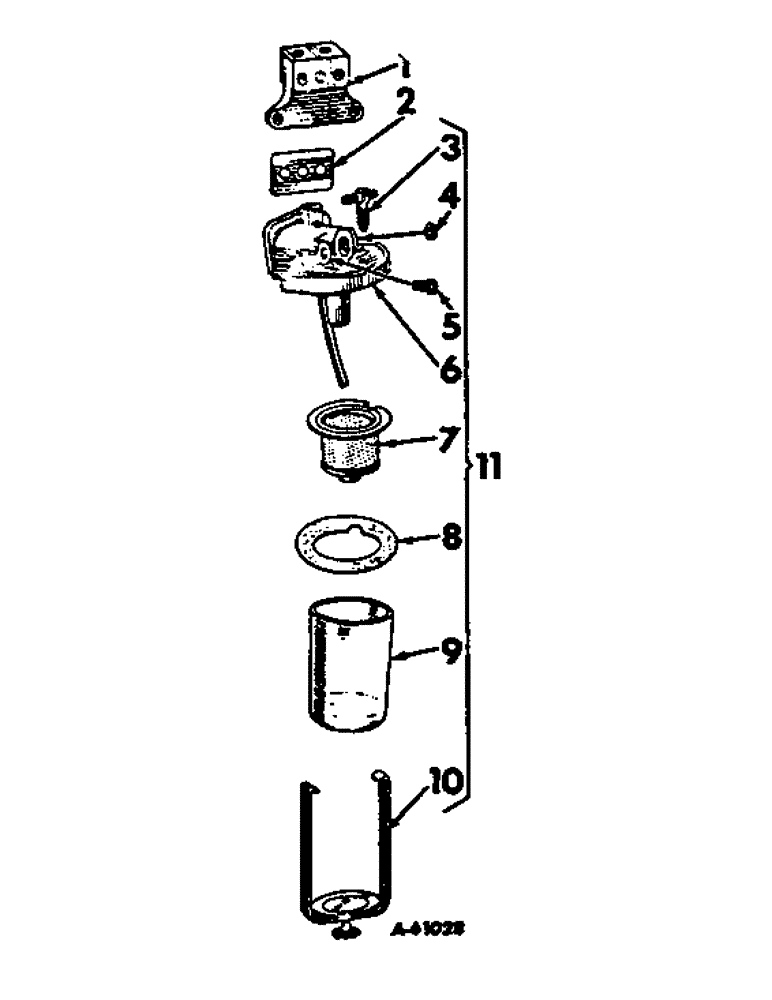

Схема запчастей Case IH 815 - (E-25) - FUEL SYSTEM, WATER TRAP, FOR DIESEL ENGINE (02) - FUEL SYSTEM
2
10
4
3
11
6
7
5
9
8
1

Артикул

Название

Примечание

Количество

1

9311D

BRACKET, water trap

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

51527DC

GASKET

water trap

1шт.

3

279173R1

CAPSCREW,3/8" x 1 5/32"

SCREW, water trap drain

1шт.

4

24805D

PLUG

3/8 BRS expansion type no. 1

1шт.

5

60871DA

SCREW, water trap vent

1шт.

6

251380R91

TOP

W/DRAIN PIPE AND PLUG, 24805D water trap

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2 x 3 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

7

251348R91

SCREEN

ASSY, water trap

1шт.

8

260708R2

GASKET

water trap bowl

1шт.

9

60877D

BOWL

GLASS, water trap

1шт.

10

60878DX

BALL

BAIL W/THUMB SCREW, water trap

1шт.

11

251355R91

TRAP

ASSY, water, composed of (1) bail 60878DX, (1) bowl 60877D, (1) gasket 260708R2, (1) screen 251348R91, (1) screw 60871DA, (1) screw 279173R1 and (1) top 251380R91

1шт.

Выбрано товаров: 16
