Запчасти Case IH 815 (E-22) - FUEL SYSTEM, FUEL PUMP, SERIAL NO. 1972 AND BELOW FOR GASOLINE SERIAL NO. 2200 AND BELOW FOR DIESEL (02) - FUEL SYSTEM

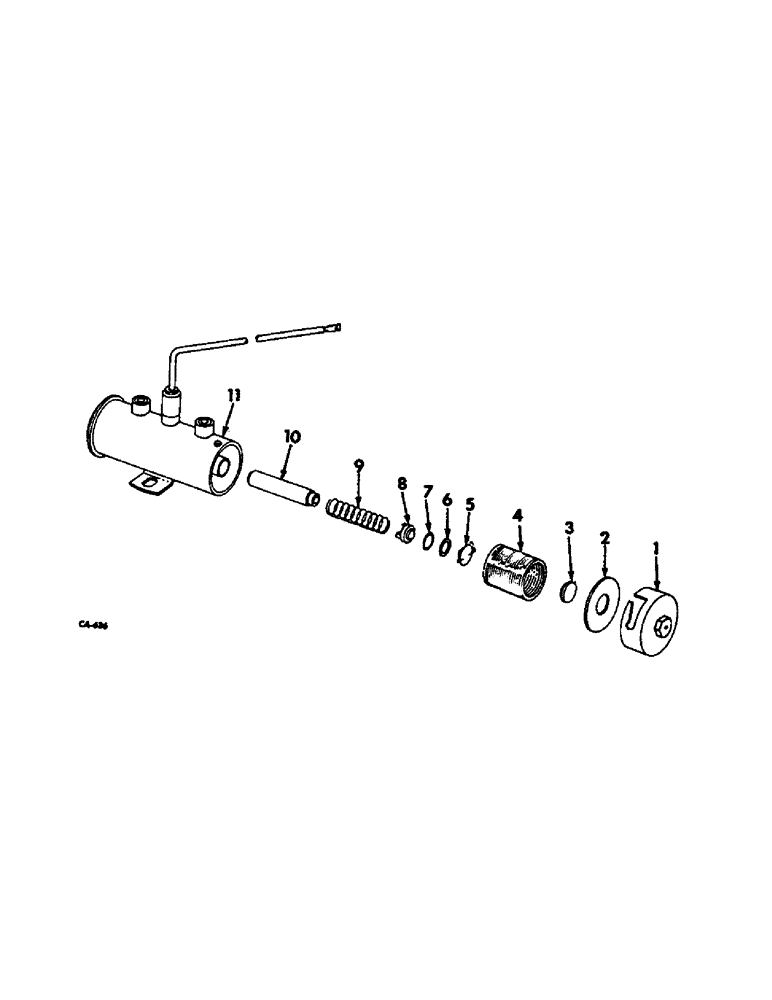

Схема запчастей Case IH 815 - (E-22) - FUEL SYSTEM, FUEL PUMP, SERIAL NO. 1972 AND BELOW FOR GASOLINE SERIAL NO. 2200 AND BELOW FOR DIESEL (02) - FUEL SYSTEM
7
3
4
8
11
10
5
9
2
6
1

Артикул

Название

Примечание

Количество

1

155205C91

COVER ASSY

1шт.

2

155207C1

GASKET, bottom cover

1шт.

3

155204C1

MAGNET

1шт.

4

153879C1

FILTER

1шт.

5

155208C1

RETAINER

1шт.

6

155209C1

WASHER

1шт.

7

164517R1

RING

O-RING

1шт.

8

155206C91

CUP ASSY, for V-8 gasoline engine

1шт.

8

CUP ASSY, for diesel engine, not serviced separately

1шт.

9

SPRING, plunger, not serviced separately

1шт.

10

PLUNGER ASSY, not serviced separately

1шт.

11

163832C91

PUMP

ASSY, fuel transfer, for V-8 gasoline engine , includes ref nos. 1 thru 10

1шт.

11

164894C91

PUMP

ASSY, fuel transfer, for diesel engine, includes ref nos. 1 thru 10

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

Выбрано товаров: 15
