Запчасти Case IH 815 (E-20) - FUEL SYSTEM, FUEL TANK, LINES AND SUPPORT, D-414 DIESEL (02) - FUEL SYSTEM

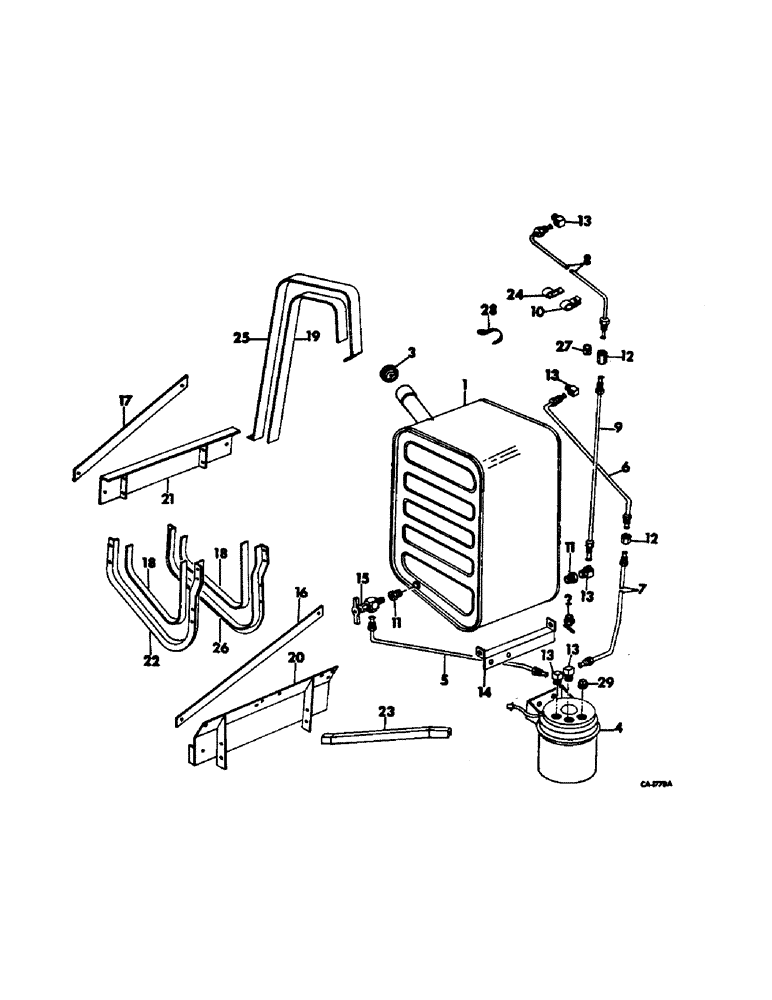

Схема запчастей Case IH 815 - (E-20) - FUEL SYSTEM, FUEL TANK, LINES AND SUPPORT, D-414 DIESEL (02) - FUEL SYSTEM
20
6
19
13
18
16
1
11
27
14
13
15
12
29
12
3
25
21
24
17
8
13
28
18
5
22
4
13
7
26
9
11
23
13
10
2

Артикул

Название

Примечание

Количество

1

160922C91

TANK ASSY, fuel

1шт.

2

118536

VALVE

ASSY, tank drain

1шт.

3

23995DC

FILLER CAP

CAP ASSY, fuel tank, vented

1шт.

4

174362C91

FUEL PUMP

PUMP ASSY, fuel, refer to fuel pump for D-414 diesel for listing

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

TUBE ASSY, fuel tank to fuel pump, use 32 inches of 3/8 OD copper tubing from a 50 ft roll marked 995063R1 and two 142433 nuts

1шт.

6

TUBE ASSY, fuel line upper, use 58 inches of 3/8 OD copper tubing from a 50 ft roll marked 995063R1 and two 142433 nuts

1шт.

7

TUBE ASSY, fuel line lower, use 71 inches of 3/8 OD copper tubing from a 50 ft roll marked 995063R1 and two 142433 nuts

1шт.

8

TUBE ASSY, fuel upper return, use 55 inches of 3/8 OD copper tubing from a 50 ft roll marked 995063R1 and two 142433 nuts

1шт.

9

TUBE ASSY, fuel lower return, use 49 inches of 3/8 OD copper tubing from 50 ft roll marked 995063R1 and two 142433 nuts

1шт.

10

589980R2

CLIP

fuel line

6шт.

11

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

BUSHING, 3/8 to 1/4 reducing pipe

2шт.

12

137415

UNION, 3/8 OD tube inverted flare

2шт.

13

NLS

NO LONGER SERVICED

ELBOW, 90 deg 3/8 OD tube inverted

5шт.

14

174363C1

BRACKET, fuel pump support

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

15

161707C1

VALVE,5/8" - 18 x 1/4" NPTF

VALVE ASSY, fuel shut-off

1шт.

16

164009C1

STRAP, fuel tank support front

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

17

164010C1

STRAP, fuel tank support rear

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

18

LINING, fuel tank support, order from bulk stock cotton webbing, 1-1/4 x 40-3/4 x 1/8 2 ply

1шт.

19

LINING, fuel tank support, order from bulk stock cotton webbing, 2-1/4 x 39-1/2 x 1/8 2 ply

1шт.

20

164014C91

SUPPORT ASSY, fuel tank front

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

21

164018C91

PLATE ASSY, fuel tank rear support

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

22

164023C1

ANGLE, fuel tank support right

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

4шт.

23

167322C1

BRACE, fuel tank front

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

24

362126R1

CLIP

fuel line

1шт.

25

164021C1

STRAP, fuel tank retaining

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

26

164022C1

ANGLE, fuel tank support left

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

4шт.

27

163490C1

RUBBER INSULATOR

STRIP, rubber fuel line

2шт.

28

702093C1

CABLE TIE

CLAMP, fuel line strip tie

2шт.

29

444577

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG, 1/4 C-Z sq-hd pipe

1шт.
