Запчасти Case IH 815 (E-13A) - FUEL SYSTEM, SPARK ARRESTER (02) - FUEL SYSTEM

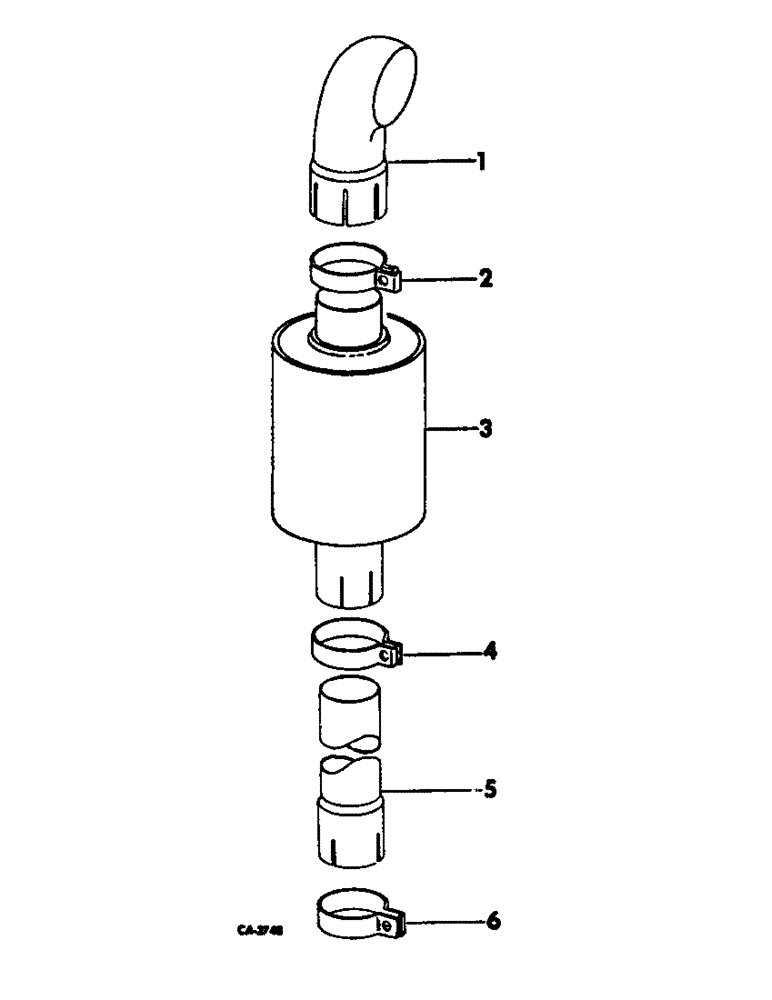

Схема запчастей Case IH 815 - (E-13A) - FUEL SYSTEM, SPARK ARRESTER (02) - FUEL SYSTEM
5
2
4
6
1
3

Артикул

Название

Примечание

Количество

545735R91

PARTS ACCESSORY, spark arrester, used on V-304 and V-345 engine combines w/dual exhaust and outlet 546128R1

1шт.

1

527269R1

PIPE

exhaust deflector

2шт.

2

379974R91

CLAMP, spark arrester

2шт.

3

404508R1

ARRESTER

spark

2шт.

4

402984R1

CLAMP

exhaust pipe deflector

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd

1шт.

5

545717R1

PIPE, exhaust spark arrester

2шт.

6

384402R1

FASTENER

CLAMP, exhaust pipe spark arrester

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

55748D

SCREW

3/8-16 x 2 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

Выбрано товаров: 13
