Запчасти Case IH 815 (E-11A) - FUEL SYSTEM, MUFFLER AND CONNECTIONS, COMBINES WITH DUAL EXHAUST HAVING EXHAUST PIPE (02) - FUEL SYSTEM

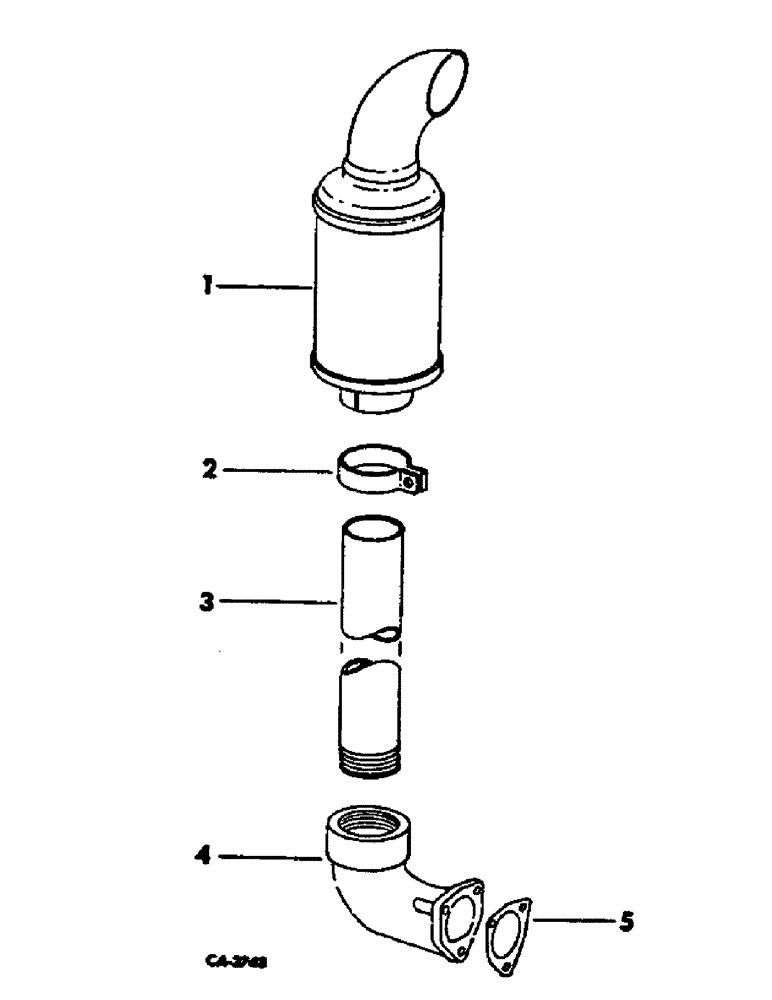

Схема запчастей Case IH 815 - (E-11A) - FUEL SYSTEM, MUFFLER AND CONNECTIONS, COMBINES WITH DUAL EXHAUST HAVING EXHAUST PIPE (02) - FUEL SYSTEM
2
3
5
1
4

Артикул

Название

Примечание

Количество

1

531852R1

MUFFLER

exhaust

2шт.

2

384402R1

FASTENER

CLAMP, exhaust muffler, replaces 379974R91

1шт.

55748D

SCREW

3/8-16 x 2 znd hex-hd cap

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3

383976R2

TUBE,20.4" Length

PIPE, exhaust

2шт.

4

531848R1

ELBOW, exhaust outlet

2шт.

159689R1

WASHER

WASHER, tab lock

3шт.

151225R1

SCREW,Hex, 3/8" - 16 x 1 1/4"

3/8-16 x 1-1/4 hex-hd cap

3шт.

5

531845R1

SHIM

GASKET, exhaust elbow

2шт.

Выбрано товаров: 10
