(E-10B) - FUEL SYSTEM, PRE-CLEANER, PRE-SCREENER

Запчасти Case IH 815 (E-10B) - FUEL SYSTEM, PRE-CLEANER, PRE-SCREENER (02) - FUEL SYSTEM

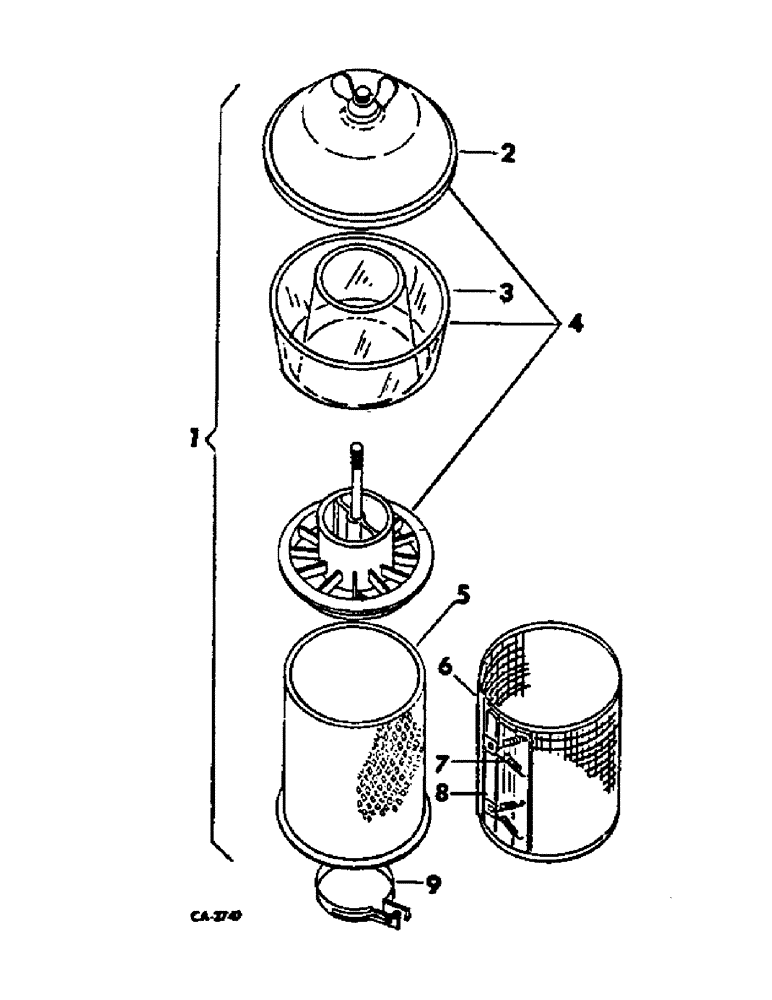

Схема запчастей Case IH 815 - (E-10B) - FUEL SYSTEM, PRE-CLEANER, PRE-SCREENER (02) - FUEL SYSTEM
6
3
2
8
1
9
5
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

530160R92

PRE-CLEANER, pre-screener

1шт.

2

COVER ASSY, pre-cleaner, not serviced separately, order ref no. 4

1шт.

3

277377R1

FILTER BOWL

BOWL

1шт.

4

321261R91

PRECLEANER

PRE-CLEANER ASSY

1шт.

5

534801R1

BODY

ASSY

1шт.

6

539985R91

SCREEN

ASSY

1шт.

7

353639R1

VALVE SPRING

SPRING

4шт.

8

353758R1

CLIP

2шт.

9

875912R91

CLAMP

ASSY

1шт.
